Wire Rope 35WX7 Features:

• The characteristics of 35WX7 wire rope focus on high strength, wear resistance and structural stability, which are specifically manifested as follows:

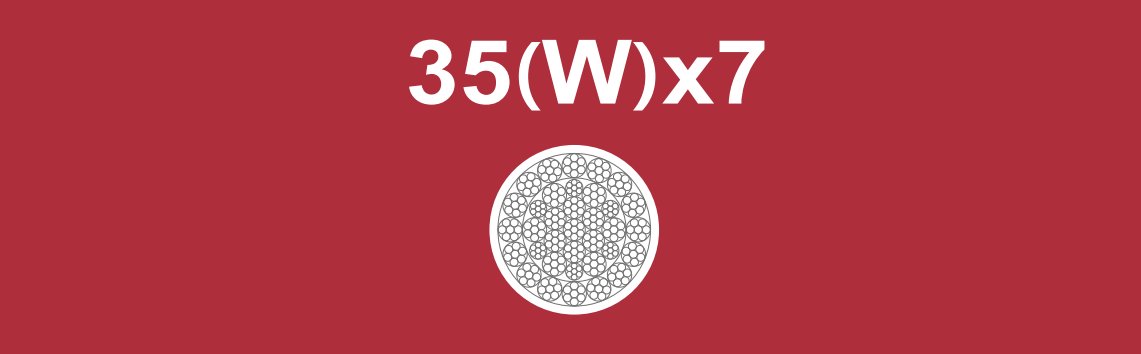

• Unique structural design: It adopts 35 strands of Warinton-Silu (W-type) special-shaped strand structure, each strand contains 7 steel wires, and the compaction process makes the gap between strands extremely small, the rope surface is smooth and dense, the overall structure is more compact, and the deformation resistance is outstanding.

• Excellent mechanical properties: The breaking force is significantly higher than that of ordinary structural wire ropes of the same diameter, and the anti-rotation performance is strong. It can reduce the torsion of the rope body during heavy load lifting and improve the operational stability.

• Extremely strong wear resistance: The contact area of the compacted steel wire is larger, the force per unit area is smaller, and the high surface smoothness can greatly reduce the friction loss with the pulley and drum, and extend the service life in high-frequency and rough environments.

• Adapt to extreme working conditions: It has excellent impact resistance and fatigue resistance, can withstand the erosion of complex environments such as marine salt spray and mining dust, and is suitable for harsh scenes such as large-scale projects and deep-sea operations.

Wire Rope 35WX7 Typical applications:

• 35WX7 wire rope is mainly used in industrial scenarios with heavy loads, high frequencies and complex environments due to its high strength, anti-rotation and wear resistance:

• Large lifting equipment: As the main hoisting rope of gantry cranes, floating cranes and tower cranes, its high breaking force and anti-rotation can stably carry thousands of tons of heavy objects, and is suitable for heavy lifting needs of ports and shipyards.

• Marine engineering: It is used for anchoring systems and underwater lifting equipment of deep-sea drilling platforms. Its salt spray corrosion resistance and impact resistance can cope with complex marine environments and ensure the safety of platform fixation and heavy object transportation.

• Mining and metallurgy: It is suitable for mine hoists and ladle traction devices of metallurgical plants. It can withstand the impact load of ore and high-temperature molten steel, resist dust wear, and reduce downtime losses caused by frequent replacement.

• Heavy engineering machinery: In the luffing mechanism of large crawler cranes and all-terrain cranes, its fatigue resistance can meet high-frequency telescopic operations and ensure continuous and efficient operation of the equipment.
