Wire Rope 6x12 Features:

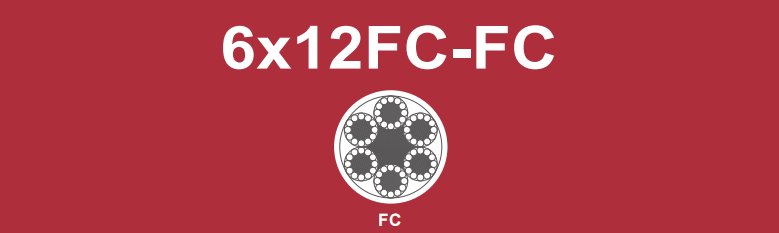

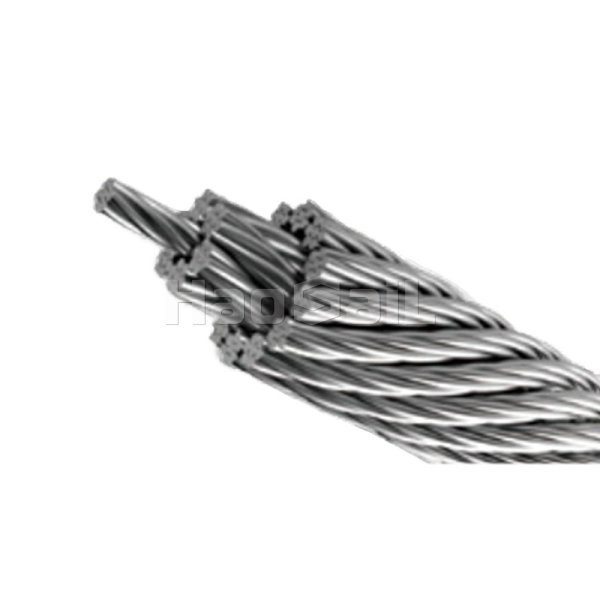

6x12 wire rope is a typical wire rope with a structure of "6 strands × 12 wires per strand". Its design takes into account flexibility, strength and applicability. The core features are as follows:

The balanced ratio of strands can more easily bypass pulleys or drums with smaller diameters. It is more flexible in scenes with frequent bending and winding (such as small lifting equipment and traction devices), and is not prone to excessive wear due to excessive rigidity.

Moderate torsion resistance is better than that of single strand or asymmetric structure, and is suitable for operations with basic requirements for rotation control (such as light lifting and agricultural traction).

The carrying capacity is suitable for medium and light loads, meeting the needs of small and medium-sized equipment (for example, a 6x12 wire rope with a diameter of 8mm has a breaking force of about 40-50kN), which is suitable for non-heavy load lifting, bundling, towing and other scenes.

The wear and fatigue performance is stable under normal conditions, and the service life is better than that of loose structure wire ropes of the same specifications, especially suitable for intermittent operation scenes.

Our wire ropes are fully tested: each batch of products is fully tested for 12 indicators including "breaking force, bending fatigue, torsion times, diameter deviation, appearance defects", etc., and is equipped with a "non-destructive flaw detector" rarely seen in the industry, which can accurately identify hidden defects such as internal broken wires and inclusions, with a factory pass rate of 100%.

Wire Rope 6x12 Typical Applications:

In practical applications, 6x12 wire rope is often used in the following scenarios:

• Material bundling: In the fields of logistics, transportation, construction, etc., it is used to bundle and fix various types of goods, building materials, etc. Its flexibility makes it easy to wrap objects of different shapes, and it can increase stability through multiple bundling to prevent the displacement or scattering of goods during transportation or handling.

• Light lifting: For some lifting equipment with smaller lifting weights, such as small electric hoists, manual winches, etc., 6x12 wire rope can be used as a lifting rope. With its certain strength and good flexibility, it can safely lift lighter items, such as small parts, tools, etc.

• Ship mooring: When a ship is docked at a dock, 6x12 wire rope is often used as a mooring rope to fix the ship to the mooring pile at the dock. Its good flexibility can adapt to the shaking of the ship on the water due to factors such as wind and waves, and its certain strength can also ensure the safety of the ship during mooring.

• Agricultural field: In agricultural production, it can be used for operations such as towing farm tools and pulling livestock. Its wear resistance and certain strength enable it to cope with complex terrain and working environment in the field, and its relatively soft properties will not cause excessive damage to farm tools or livestock.
