Wire Rope 18X7

Wire Rope 18X7

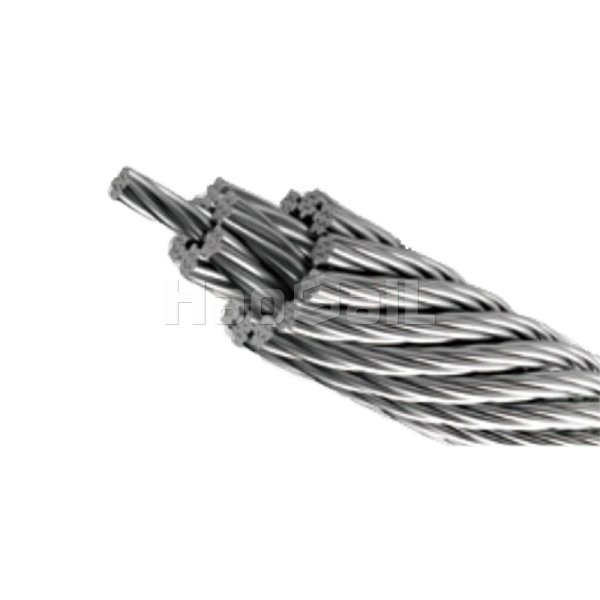

18X7 wire rope is a common multi-strand steel wire rope, which is twisted by 18 outer strands around 1 center strand, and each outer strand contains 7 steel wires. This structural design takes into account flexibility and strength and is suitable for a variety of working conditions.

Its diameter range is wide, usually ranging from a few millimeters to tens of millimeters. The breaking tension varies according to the diameter and material, and generally can meet the medium and high strength load requirements.

This type of wire rope is widely used in cranes, elevators, mining equipment and other fields. With good fatigue resistance and wear resistance, it can maintain stable performance in complex environments and is a common choice in industrial lifting and traction operations.

Inquire Now

Product Data

Anti-rotation wire rope(Ungalvanized and Galvanized).

A multi-strand wire rope that produces reduced torque or rotation when loaded. Anti-rotation wire ropes differ from standard wire ropes because their counter-rotating lay design reduces the torque on the wire rope. Anti-rotation wire ropes break and wear differently than those of standard construction wire ropes.

1. Rotation-resistant wire ropes have at least 15 outer strands, with three strands "wrap around the core", little or no tendency to rotate, or transmit little or no torque when guided.

2. The outer layer of the anti-rotation wire rope has at least 10 or more strands, and there are more than two layers of strands
"wrap around the core", which has obvious anti-rotation performance.

3. Anti-rotation wire rope has no more than 9 strands in one outer layer, with two layers of strands around the core and limited anti-rotation performance.

When using anti-rotation wire rope, a safety factor of at least 5.0 should be selected.

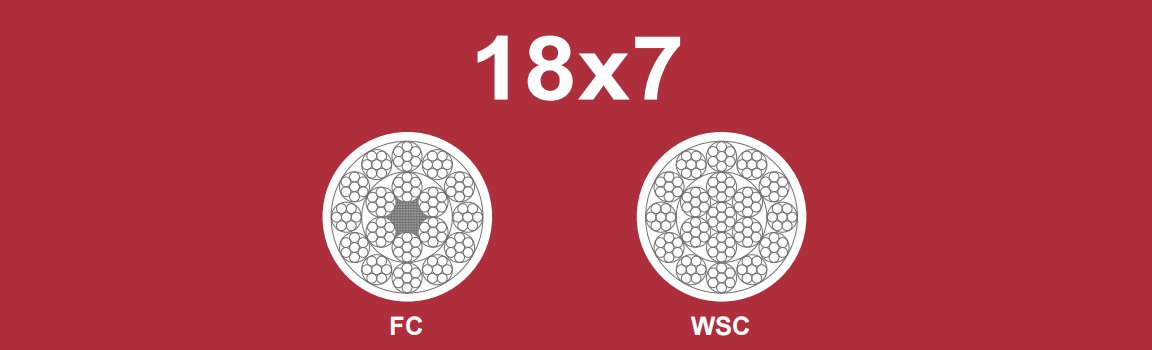

Structure of Steel wire rope: 18*7-FC, 18*7-WSC

Stock no.	Nominal rope		Nominal tensile strength (MPa)
	Size		Minimum breaking load (kN)
	Size		FC				WSC
	mm	in.	kg/100m	1770N/mm2	1960N/mm2	2160N/mm2	kg/100m	1770N/mm2	1960N/mm2	2160N/mm2
HS6010101	3		3.55	5.04	5.58	6.15	3.7	5.33	5.9	6.5
HS6010102	4		6.3	8.95	9.92	10.9	6.58	9.38	10.5	11.6
HS6010103	5		9.85	14	15.5	17.1	10.3	14.7	16.4	18.1
HS6010104	6		14.2	20.1	22.3	24.6	14.8	21.1	23.6	26
HS6010105	6.35	1/4	15.9	22.6	25	27.5	16.6	23.6	26.4	29.1
HS6010106	7		19.3	27.4	30.4	33.5	20.1	28.7	32.1	35.4
HS6010107	7.94	5/16	24.8	35.3	39.1	43.1	25.9	37	41.3	45.6
HS6010108	8		25.2	35.8	39.7	43.7	26.3	37.5	42	46.2
HS6010109	9		31.9	45.3	50.2	55.3	33.3	47.5	53.1	58.5
HS6010110	9.5	3/8	35.5	50.5	55.9	61.6	37.1	52.9	59.2	65.2
HS6010111	10		39.4	56	62	68.3	41.1	58.6	65.6	72.3
HS6010112	11		47.7	67.7	75	82.6	49.7	71	79.3	87.4
HS6010113	11.1	7/16	48.5	69	76.4	84.2	50.6	72.2	80.8	89
HS6010114	12		56.7	80.6	89.2	98.4	59.2	84.4	94.4	104
HS6010115	12.7	1/2	63.5	90.3	100	110	66.3	94.6	106	117
HS6010116	13		66.6	94.6	105	115	69.5	99.1	111	122
HS6010117	14		77.2	110	121	134	80.6	115	129	142
HS6010118	14.3	9/16	80.5	114	127	140	84	120	134	148
HS6010119	15.9	5/8	99.6	141	157	173	104	148	166	183
HS6010120	16		101	143	159	175	105	150	168	185
HS6010121	18		128	181	201	221	133	190	212	234
HS6010122	19		142	202	224	247	148	212	237	261
HS6010123	19.1	3/4	144	204	226	249	150	214	239	264
HS6010124	20		158	224	248	273	164	235	262	289
HS6010125	22		191	271	300	331	199	284	317	350
HS6010126	22.2	7/8	194	276	305	337	203	289	323	356
HS6010127	24		227	322	357	393	237	338	378	416
HS6010128	25.4	1	254	361	400	441	265	378	423	466
HS6010129	26		266	378	419	462	278	396	443	489
HS6010130	28		309	439	486	535	322	460	514	567
HS6010131	28.6	1 1/8	322	458	507	559	336	480	536	591
HS6010132	31.8	1 1/4	398	566	627	691	416	593	663	731
HS6010133	32		403	573	635	699	421	600	671	740
HS6010134	34.9	1 3/8	480	682	755	832	501	714	799	880
HS6010135	35		483	686	759	837	503	718	803	885
HS6010136	36		510	725	803	885	533	760	850	937
HS6010137	38		569	808	895	986	593	847	947	1044
HS6010138	38.1	1 1/2	572	812	900	991	597	851	952	1049
HS6010139	40		630	895	992	1093	658	938	1049	1156
HS6010140	41.3	1 5/8	672	955	1057	1165	701	1000	1118	1233
HS6010141	44		763	1084	1200	1322	796	1135	1270	1399
HS6010142	44.5	1 3/4	780	1108	1227	1352	814	1161	1299	1431
HS6010143	45		798	1133	1255	1383	832	1187	1328	1463
HS6010144	47.6	1 7/8	892	1268	1404	1547	931	1329	1486	1637
HS6010145	48		908	1289	1428	1574	947	1351	1511	1665
HS6010146	50.8	2	1017	1444	1599	1763	1061	1513	1692	1865
HS6010147	51		1025	1456	1612	1776	1069	1525	1706	1880
HS6010148	52		1065	1513	1676	1847	1111	1586	1773	1954
HS6010149	54	2 1/8	1149	1632	1807	1992	1198	1710	1912	2107
HS6010150	56		1235	1755	1944	2142	1289	1839	2056	2266
HS6010151	57.2	2 1/4	1289	1831	2028	2235	1345	1918	2145	2364
HS6010152	60		1418	2015	2231	2459	1480	2111	2361	2602
HS6010153	60.3	2 3/8	1432	2035	2253	2483	1494	2132	2384	2628
HS6010154	62		1514	2151	2382	2625	1580	2254	2521	2778
HS6010155	63.5	2 1/2	1588	2257	2499	2754	1657	2364	2644	2914
HS6010156	64		1613	2292	2539	2798	1683	2402	2686	2960

Product Details

Wire Rope 18X7 Features:

18X7 steel wire rope：Structural advantages: The design of 18 outer layers around the central strand, combined with the fine arrangement of 7 steel wires per strand, allows the rope to have both high flexibility and structural stability, and can adapt to multi-angle bending operations.
Strength performance: A medium diameter can achieve a high breaking force, which can meet the medium and high strength load requirements and provide reliable load support in lifting, traction and other scenarios.
Good durability: The force distribution between the steel wires is relatively uniform, and the fatigue resistance is strong. In addition, the structure with a large number of strands has a buffering effect on wear, which extends the service life under complex working conditions.
Wide application: It is suitable for the regular operation of fixed equipment such as cranes and elevators, and can also cope with the operation requirements of outdoor complex environments such as mines and ports, with strong versatility.

Wire Rope 18X7 Typical applications:

18X7 steel wire rope has a wide range of application scenarios due to its structural stability and comprehensive performance:
Lifting equipment: commonly used in the lifting mechanism of small and medium-sized cranes and tower cranes. Its moderate strength and flexibility can meet the bending and load-bearing requirements during lifting, ensuring the smooth lifting and lowering of heavy objects.
Elevator system: As a common choice for elevator traction ropes, the multi-strand structure can evenly disperse the weight of the car, and its fatigue resistance is adapted to the high-frequency operation of the elevator to ensure the safety of vertical transportation.
Mines and ports: In mine hoists and small port hoisting equipment, its wear resistance and impact resistance can cope with the rough environment when handling ore and cargo, reducing the loss caused by frequent wear.
Construction and engineering: Suitable for temporary operations such as scaffolding traction and component lifting, taking into account portability and carrying capacity, and adapting to the changing operation requirements of the construction site.

FAQ

Q1: What is the core difference between 18X7 wire rope and other structures such as 6X19?

A: The core difference lies in the number of strands and flexibility: 18X7 has more strands (18 strands), each strand is thinner (7 strands), is softer overall, and has better bending performance, which is suitable for scenes that require frequent turning or multi-angle operations (such as elevator traction); while 6X19 has fewer strands (6 strands), thicker wires (19 strands), stronger rigidity, and is more suitable for heavy loads and low bending frequency conditions (such as large cranes).
Q3: If a partial wire break occurs during use, must it be replaced immediately?

A: It needs to be judged based on the number and location of broken wires:

If the number of broken wires in a single strand is ≤2, and the distribution is dispersed and there is no concentrated broken wire, it can be temporarily monitored and used;

If the broken wires are concentrated in a certain section (such as more than 5 broken wires within 10 times the rope diameter length), or the entire strand is broken and the rope core is exposed, it must be replaced immediately to avoid the risk of breakage.
Q5: How to extend the service life of 18X7 wire rope?

A: Regular lubrication: Apply special wire rope grease every 3-6 months to reduce friction and rust between wires;

Avoid overload: Strictly control the load within 1/5-1/3 (safety factor) of the rated breaking force;

Avoid sharp angle wear: When in contact with pulleys and drums, ensure that the contact surface is smooth and avoid direct friction between the rope and sharp objects.
Q5: What should be paid attention to during storage?

A: Avoid moisture and exposure: Store in a dry and ventilated place, cover with rainproof cloth after winding to prevent rainwater from seeping in and causing internal rust; Clean and apply anti-rust oil before long-term storage, turn over and check regularly to avoid local compression and deformation.
Q3: How to judge whether the 18X7 wire rope has reached the scrap standard?

A: In addition to broken wires, the rope must be scrapped if the following conditions occur:

The rope diameter is worn or corroded by more than 10% of the original diameter;

The rope body is severely twisted, knotted, or partially plastically deformed;

The outer strands are loose, scattered, or the core is severely damaged (such as grease leakage, core wire breakage).
