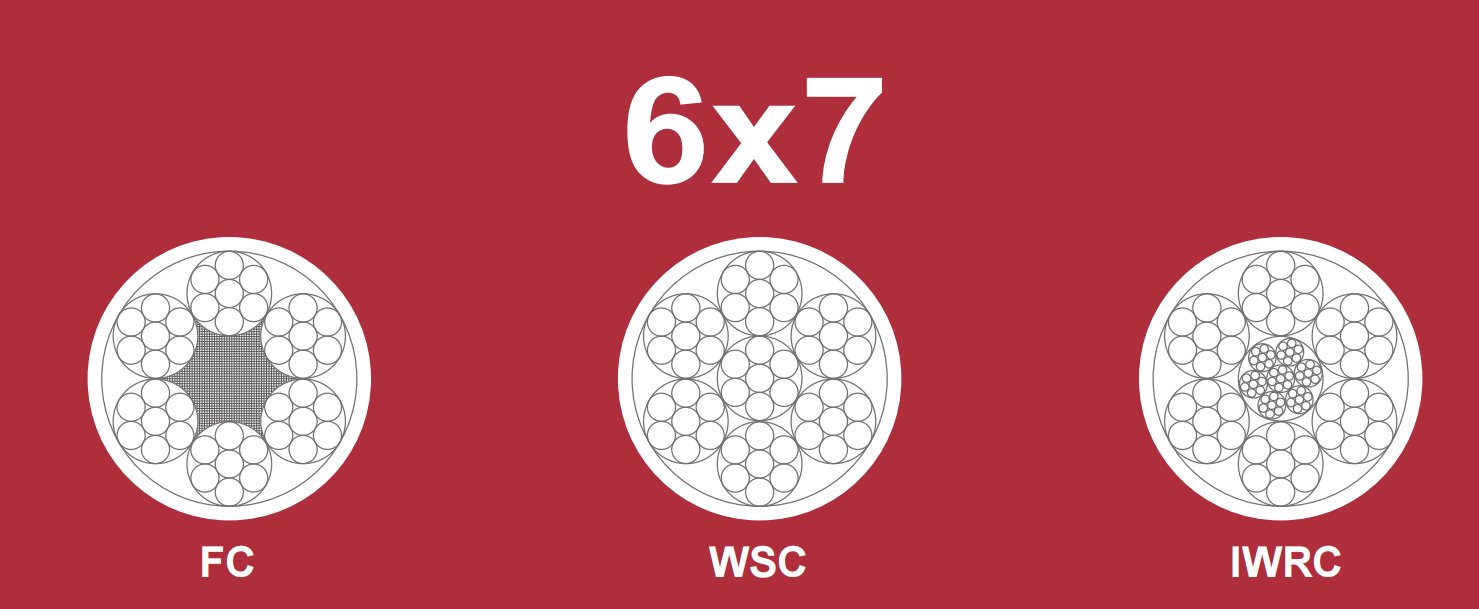

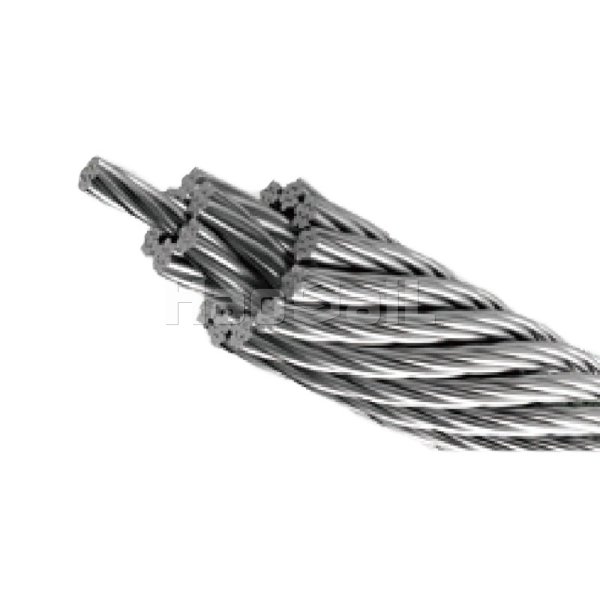

Wire Rope 6x7 Features：

• Implementation standards: in accordance with GB/T 20118, EN 12385-4, ISO 2408 and other relevant standards.

• Length specifications: usually 100m/roll, 500m/roll, 1000m/roll, 2000m/roll, etc., and the length can also be customized according to customer requirements.

• Good flexibility: 6x7 wire rope has good flexibility and can be easily bent around the pulley or used in a small space. It is suitable for occasions such as fishing lines, guide ropes and winch ropes that require frequent bending.

• Strong wear resistance: Its fiber core structure makes the outer layer of steel wire relatively thick. When in contact with other objects, the wear distribution is more uniform, and it has good wear resistance. It is suitable for scenes where the wire rope needs to rub against the ground or slide frequently on the pulley, such as mining hoisting, port loading and unloading, etc.

• Good anti-kink performance: The 6x7 structural design gives it a certain anti-kink ability. It is not easy to have problems such as kinking and deformation during use. It can maintain a good working condition, reduce damage caused by kinking, and extend its service life.

• Our wire ropes are fully tested: each batch of products is fully tested for 12 indicators including "breaking force, bending fatigue, torsion times, diameter deviation, appearance defects", etc., and is equipped with a "non-destructive flaw detector" rarely seen in the industry, which can accurately identify hidden defects such as internal broken wires and inclusions, with a factory pass rate of 100%.

Wire Rope 6x7 applications：

1. Static Loads:

Stable cables of bridges (such as auxiliary supports of cable-stayed bridges).

Guy wires for telegraph poles, tower cranes, and chimneys.

Temporary fixed anchor cables at construction sites.

2. Cranes & Hoists:

Balance arm cables of tower cranes.

Lifting wire ropes of small winches or electric hoists (need to be used with pulleys).

3. Marine & Offshore:

Mooring Lines of ships - especially suitable for short-distance fixation.

Structural support cables of offshore platforms (need to be anti-corrosion galvanized).

4. Industrial Conveyors & Drives:

Tension wire ropes for mine conveyors.

Transmission cables for factory machinery (such as power transmission of old machine tools).
