Australian Standard Chain-Grade L Chain

Australian Standard Chain-Grade L Chain

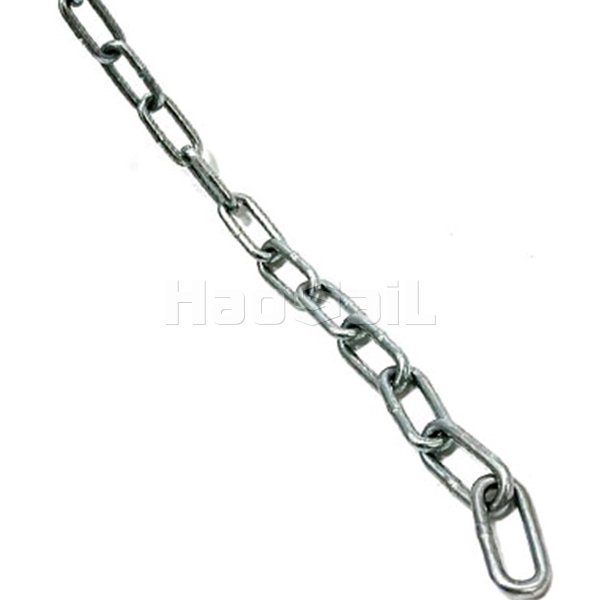

Australian Standard Chain - Grade L Chain is a specialized low-tensile steel chain fully compliant with AS 2321 (Australian Standard for Link Chains) and AS 1418.1 (Crane Mechanisms), primarily designed for light-to-medium duty applications. Constructed from high-quality low-carbon steel (with stainless steel options for corrosion-prone environments), it features a calibrated short-link configuration that ensures compatibility with most Australian marine windlasses and standard rigging hardware.

Manufactured via precision welding, Grade L Chain undergoes strict quality checks, including proof load testing with a minimum design factor of 5:1 (extendable to 4:1 for specific mooring needs). Surface finishes include electro-galvanizing, hot-dip galvanizing, or bare metal, with galvanized variants offering enhanced rust resistance for outdoor and marine use. Each chain is marked with "HDJ-L" or equivalent identifiers for traceability and comes with test certificates upon request. Unlike high-grade alloy chains, it is not rated for overhead lifting but excels in static load-securing and marine anchoring, making it a cost-effective choice for industries requiring reliable, standards-aligned low-tensile solutions.

Inquire Now

Product Data

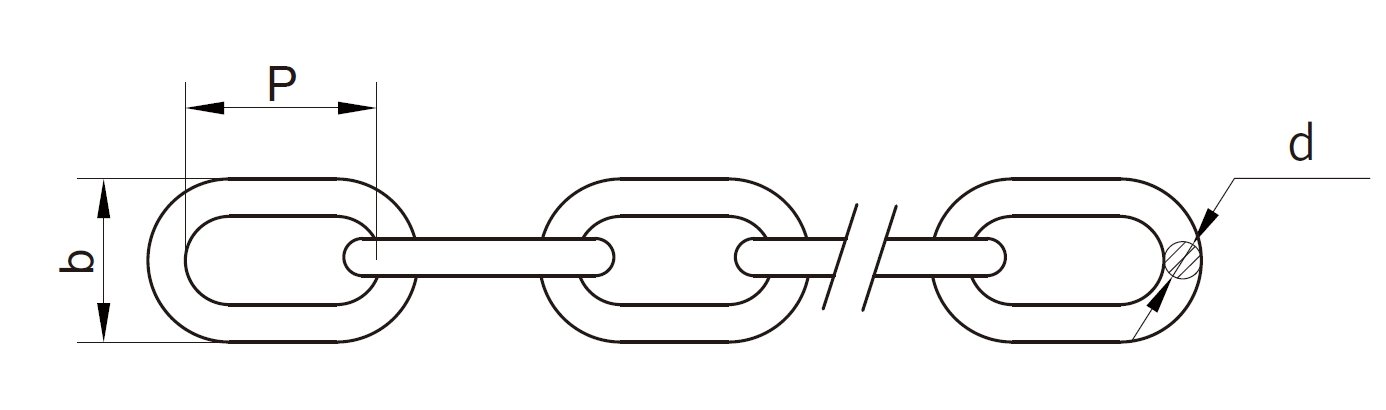

Stock no.	Size (mm)	WLL (mt)	lnside length (mm)	Outside width (mm)	Links per m (pc)	Length per 100kg		B.F weight(kg/m)	H.D.G weight(kg/m)
Stock no.	Size (mm)	WLL (mt)	lnside length (mm)	Outside width (mm)	Links per m (pc)	B.F(m)	H.D.G(m)	B.F weight(kg/m)	H.D.G weight(kg/m)
HS1011701	5	0.25	14.6	17.2	68.3	174	167	0.57	0.60
HS1011702	6	0.40	18.8	21.6	53.2	116	110	0.86	0.91
HS1011703	8	0.64	23.8	27	42	71.4	69.9	1.40	1.43
HS1011704	10	1.00	29.8	34.3	33.6	44.8	43.9	2.23	2.28
HS1011705	13	1.70	38.8	44.6	25.8	28.9	26.3	3.46	3.80
HS1011706	16	2.58	47.8	54.8	20.9	17.8	17.5	5.62	5.71
HS1011707	20	4.03	59.2	68.5	16.9	11.3	11.1	8.85	9.01
HS1011708	22	5.06	64.9	77	15.4	9.5	9.2	10.53	10.87
HS1011709	24	5.61	71	82.2	14.1	7.8	7.6	12.82	13.16

Product Details

Australian Standard Chain-Grade L Chain Features：

Short-Link Design: Calibrated short links ensure proper fit with Australian windlasses (critical for marine anchoring) and easy attachment of standard shackles/hooks.
Corrosion-Resistant Finishes: Electro-galvanized/hot-dip galvanized coatings protect against saltwater, moisture, and outdoor elements; stainless steel variants available for extreme corrosion environments.
Controlled Design Factor: Built with a 5:1 design factor (safety ratio) for general use, adjustable to 4:1 for specific mooring applications, ensuring load stability without overengineering.
Non-Lifting Rating: Explicitly not approved for overhead lifting (per AS 1418.1), preventing misuse in high-risk heavy-lifting scenarios.

Australian Standard Chain-Long Link Chain Typical Applications:

Marine Anchoring & Mooring: Ideal for boat anchor chains (pleasure craft, small commercial vessels) and dock mooring—short-link design fits Australian windlasses, while galvanized finishes resist saltwater corrosion .
Agricultural Use: Used as tractor tow chains, hay bale securing chains, and farm equipment tie-downs; low-carbon steel withstands soil moisture and minor impacts .
Light Construction: Secures temporary structures (safety barriers, small scaffolding) and lifts lightweight materials (wooden planks, small metal parts) via ground-based rigging (not overhead) .
Transport & Logistics: Functions as trailer safety chains and light cargo binders (e.g., securing small machinery parts on utility trailers); compatible with standard load binders .
Recreational & Industrial Support: Used in log cabin construction (rafter support), playground equipment anchoring, and light industrial storage (securing non-heavy inventory) .

FAQ

Q1: Is Grade L Chain approved for overhead lifting?

No. Grade L Chain is explicitly not rated for overhead lifting (per AS 1418.1). It lacks the tensile strength and stiffness required for vertical load-bearing—use Grade 80/100 alloy chains instead for overhead applications .
Q3: What’s the working load limit (WLL) of Grade L Chain, and how is it determined?

WLL typically ranges from 0.3t to 3t, depending on link diameter (6mm-16mm common). It is calculated based on a 5:1 design factor (load capacity vs. breaking strength) for general use; this can be adjusted to 4:1 for specific mooring needs (confirm with supplier) .
Q3: Which finish is best for saltwater marine use?

Hot-dip galvanized Grade L Chain is recommended for saltwater—it provides thicker zinc coating than electro-galvanizing, offering superior resistance to salt corrosion. For extreme marine environments, opt for stainless steel variants .
Q3: Will Grade L Chain fit my Australian windlass?

Yes. Its calibrated short-link design is specifically engineered to match most Australian windlass specifications, ensuring smooth winding/unwinding during anchoring .
Q3: How do I maintain Grade L Chain to extend its life?

For galvanized variants: Rinse with fresh water after saltwater use, dry thoroughly, and apply a light marine lubricant every 2-3 months. For bare metal: Inspect for rust monthly, remove surface rust with a wire brush, and apply anti-rust paint annually .
Q3: What’s the difference between Grade L and Grade 70 Chain?

Grade L is low-carbon steel (AS 2321) for light-medium static loads (anchoring, tying down). Grade 70 is heat-treated alloy steel (ASTM standard) with 20% higher WLL, designed for transport/cargo securing—but neither is approved for overhead lifting .
