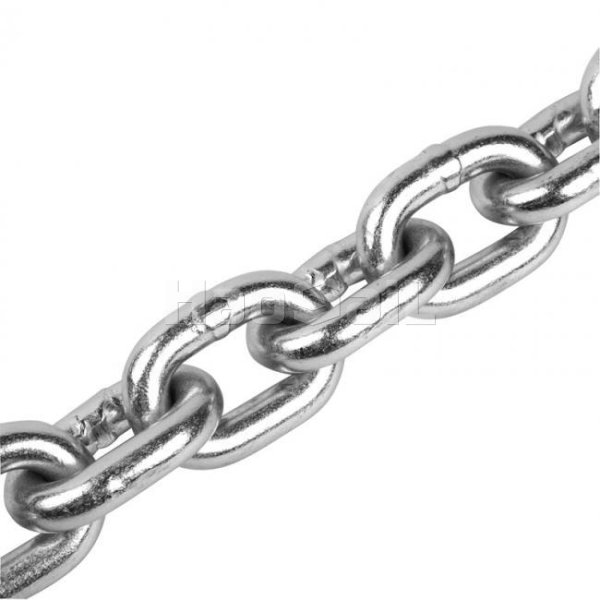

Australian Standard Chain - Medium Link Chain is a versatile industrial chain engineered to meet rigorous Australian national standards, bridging the performance gap between short and long link variants. Constructed from high-quality mild steel (or marine-grade stainless steel for corrosive environments), it features a balanced link pitch design—longer than short link chains for easier attachment compatibility, yet shorter than long link options for enhanced load stability.
Manufacturing involves precision flash butt welding and optional heat treatment (for Grade 80 variants), with strict proof load testing to ensure compliance with safety benchmarks. Surface finishes include hot-dip galvanizing or advanced Galv360 coating, which diffuses zinc atoms into steel for superior corrosion resistance—critical for outdoor, coastal, or agricultural use. Each chain is embossed with batch numbers at 1m intervals for traceability, and key variants carry compliance markings to confirm adherence to Australian standards. Ideal for medium-duty applications, it balances strength, flexibility, and durability, making it a staple across logistics, marine, and industrial sectors.

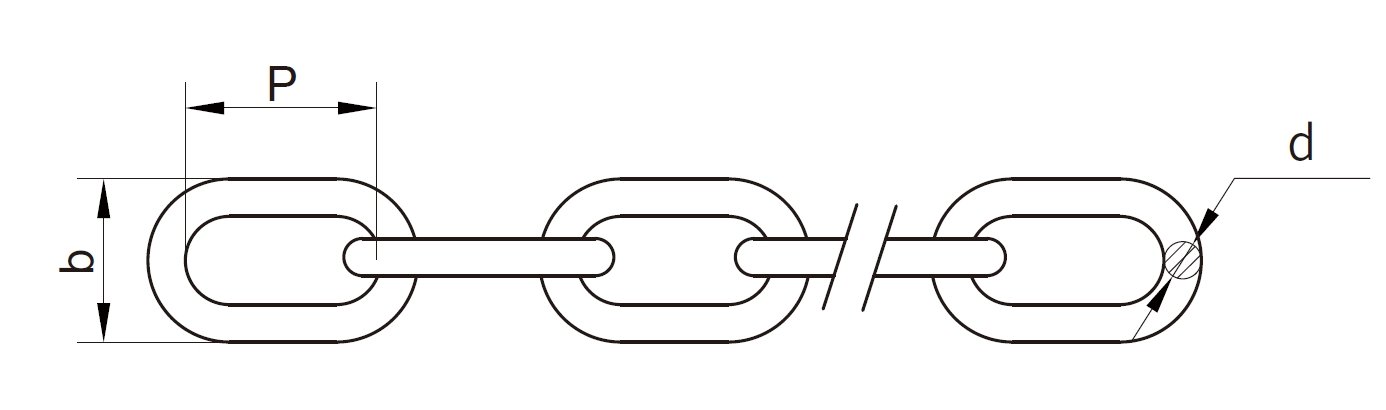

| Stock no. | Size (mm) | WLL (mt) | lnside length (mm) | Outside width (mm) | Links per m (pc) | Length per 100kg | B.F weight(kg/m) | H.D.G weight(kg/m) | |
| B.F(m) | H.D.G(m) | ||||||||
| HS1011601 | 3 | 0.06 | 15.7 | 13.1 | 63.8 | 511 | 498 | 0.20 | 0.20 |
| HS1011602 | 4 | 0.11 | 18.6 | 16 | 53.9 | 320 | 305 | 0.31 | 0.33 |
| HS1011603 | 5 | 0.19 | 22 | 19.4 | 45.4 | 203 | 193 | 0.49 | 0.52 |
| HS1011604 | 6 | 0.32 | 26.1 | 23.5 | 37.8 | 129 | 120 | 0.78 | 0.83 |
| HS1011605 | 8 | 0.53 | 32.2 | 29.5 | 31 | 77.8 | 74 | 1.29 | 1.35 |
| HS1011606 | 10 | 0.83 | 39.1 | 36.2 | 25 | 48.5 | 47.1 | 2.06 | 2.12 |
| HS1011607 | 12 | 1.35 | 46 | 44 | 21.7 | 34 | 33.3 | 2.94 | 3.00 |
| HS1011608 | 13 | 1.50 | 49.1 | 46.1 | 20.3 | 29.7 | 27.7 | 3.37 | 3.61 |
| HS1011609 | 16 | 2.31 | 59.6 | 56.5 | 16.8 | 20.2 | 18.2 | 4.95 | 5.49 |
| HS1011610 | 20 | 3.67 | 73.3 | 70 | 13.6 | 12.3 | 11.6 | 8.13 | 8.62 |
| HS1011611 | 24 | 5.31 | 87 | 83.6 | 11.5 | 8.5 | 8.04 | 11.76 | 12.44 |
