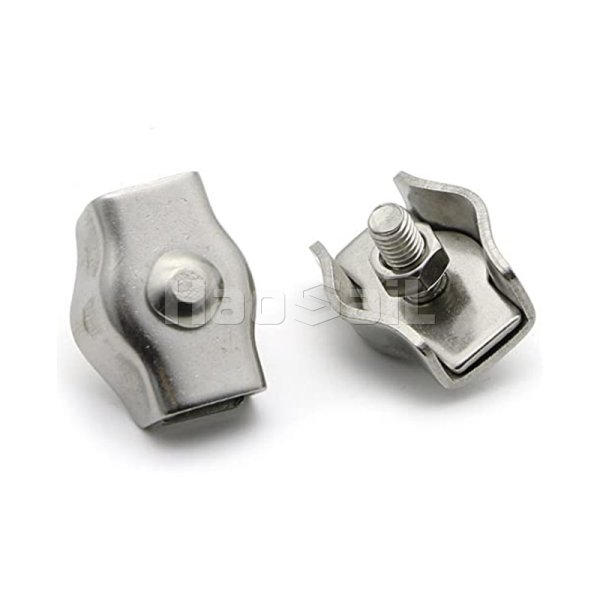

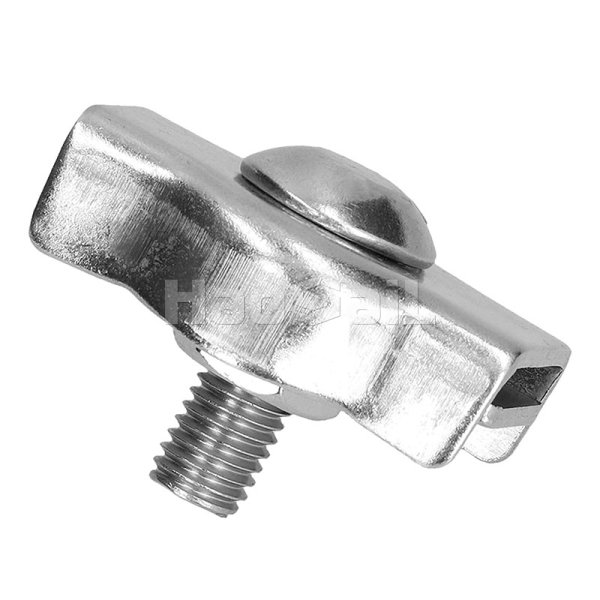

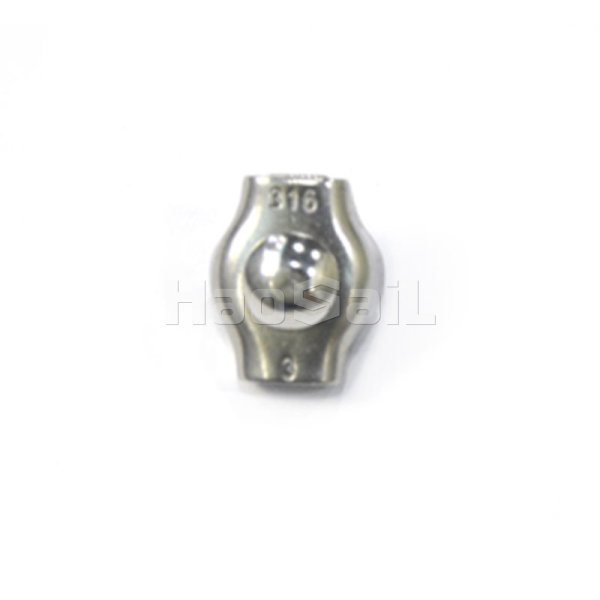

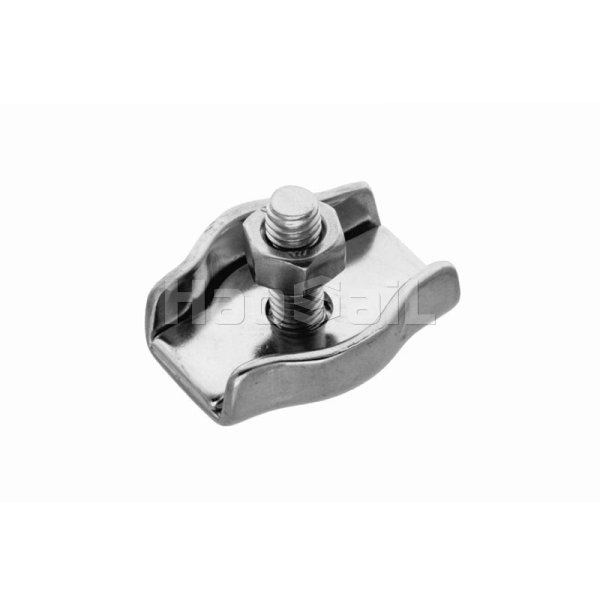

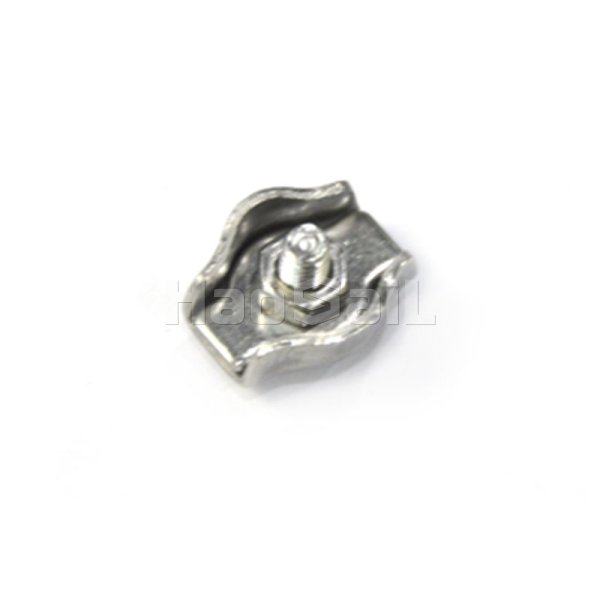

Simplex Clips Features

• Simple structure, easy installation

• It only consists of a single bolt, a pressure plate and a nut, and the number of parts is more than 50% less than that of the American forged rope clamp (U-bolt + saddle + double nut). There is no need to distinguish the direction of the main rope and the rope tail during installation. Just put the wire rope into the clamp groove and tighten the bolts. The fixation can be completed within 30 seconds by one person, which is especially suitable for narrow space or temporary quick connection scenarios (such as gardening ropes, light bundling).

• Lightweight design, lower cost

• Under the same compatible wire rope diameter, the weight is 40%-60% lighter than the American rope clamp (for example, the single bolt rope clamp for 6mm wire rope is about 20g, and the American forged model is about 50g), saving transportation and installation weight. The manufacturing cost is 30%-40% lower, which is suitable for light scenes purchased in bulk (such as agricultural greenhouse reinforcement fixation and civil clothesline connection).

Simplex Clips Typical applications

• Simplex Clips (single bolt wire rope clips) are mainly used in light, non-load-bearing or temporary fixing scenarios due to their structural and performance characteristics. The specific application areas and typical uses are as follows:

• Civil and gardening scenarios

• Daily light bundling: such as fixing the two ends of the family clothesline, connecting the balcony guardrail rope, and temporarily bundling furniture when moving (load ≤200kg). It can be quickly fixed by taking advantage of its convenient installation characteristics, and can be reused after disassembly.

• Gardening and agriculture: fixing the skeleton of the vegetable greenhouse (6-8mm steel wire rope), connecting the support rope of the fruit tree, and tightening the flowerbed fence net. Because the environment is mostly dry or slightly humid, the carbon steel galvanized model can meet the use requirements for 3-5 years, with low cost and simple maintenance.

• Light industrial auxiliary scenarios

• Temporary fixing of equipment: temporary anti-slip bundling of small machines (such as bench drills and grinders) in the workshop (fixed on the edge of the workbench), and the limit rope connection of light goods (≤500kg) on the storage shelves. There is no need to bear weight for a long time, and the single bolt structure can quickly adjust the tightness.

• Auxiliary fixing of cables and pipes: Auxiliary rope fixing of cable trays in weak current projects (non-load-bearing support), temporary installation and tightening of small PVC pipes (diameter ≤50mm), to avoid wear or displacement caused by cable sagging.

• Construction of temporary outdoor facilities

• Temporary awning/tent fixing: used to fix the connection between the tent rope and the ground anchor point in outdoor activities (such as camping and fairs), suitable for 4-6mm nylon rope or thin steel wire rope, to cope with the tension under short-term wind force (≤5 levels), and easy to store after disassembly.

• Installation of small billboards/signs: The inclined rope fixing of light roadside signs (weight ≤10kg) connects the steel wire rope to the bracket through a single bolt rope clamp to meet the stability requirements in daily breeze environment and facilitate the adjustment of angles later.
