Qingdao Haosail Machinery Co., Ltd.

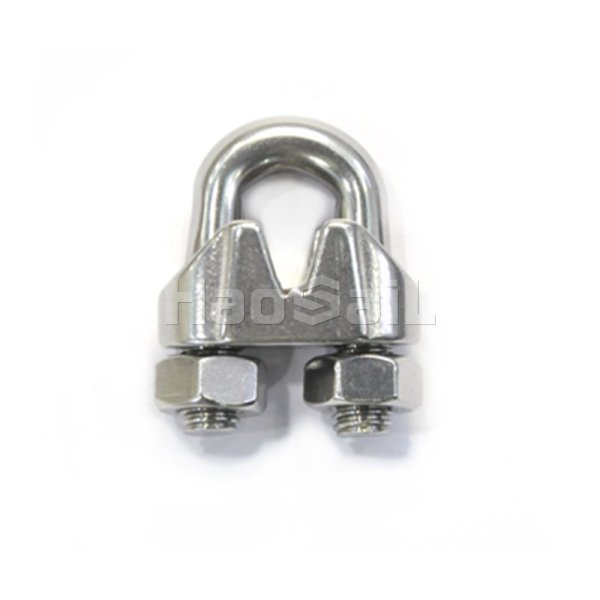

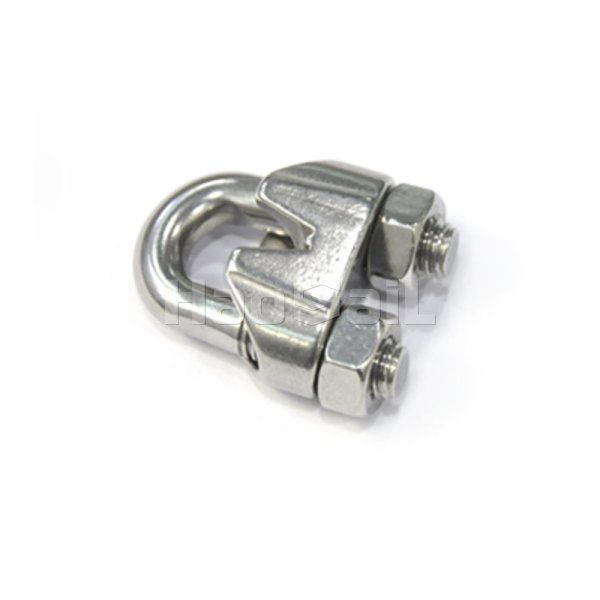

US Type Wire Rope Clips Features

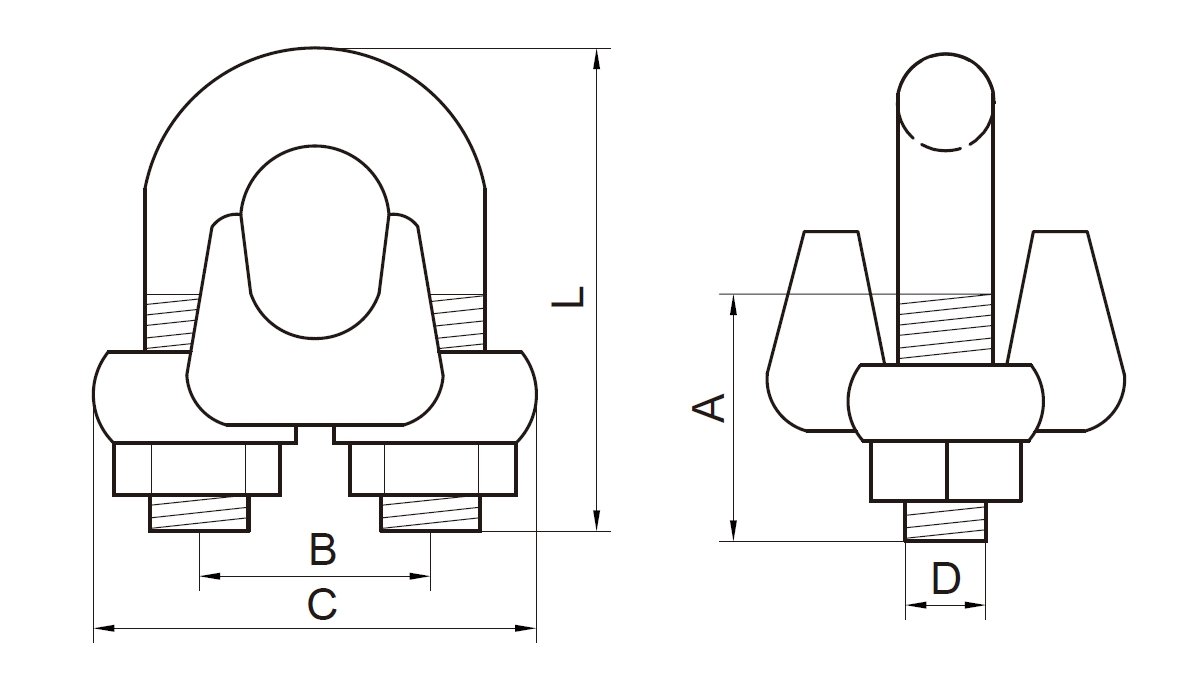

• Scientific structural design: It consists of U-bolts, saddles and nuts. The saddle has a large contact area with the wire rope, which can evenly disperse the clamping force and reduce local extrusion damage to the wire rope. At the same time, the curvature of the U-bolt is highly compatible with the wire rope, which improves the fastening stability.

• High strength and durability: The mainstream products are forged with high-strength carbon steel (such as G450), processed by die forging technology, with high tensile strength, can withstand large working loads, and are suitable for high-strength scenes such as lifting and hoisting; some models are made of stainless steel with excellent corrosion resistance and can adapt to harsh environments such as humidity, acid and alkali.

• Wide adaptability: The specifications range from 1/16" to 3-1/2", which can match wire ropes of different diameters, and through different surface treatments (hot-dip galvanizing, electro-galvanizing, etc.), it can meet the needs of various scenes such as indoor and outdoor, industrial or civil use.

• Clear safety specifications: It complies with the US FF-C-450 and other standards. During installation, there are strict regulations on the saddle orientation, bolt torque, and number of bolts to be used to ensure connection strength and reduce the risk of loosening. It is especially suitable for areas with high safety requirements such as lifting and construction.

US Type Wire Rope Clips Typical applications

• US Type Wire Rope Clips are widely used in many fields due to their high strength, standardized design and reliable fastening performance. The specific scenarios are as follows:

• Lifting and hoisting industry: In cranes, tower cranes, cranes and other equipment, they are used to fix the ends or connection points of wire ropes to ensure the safety and stability of heavy objects during lifting and translation, such as the fastening of wire ropes when lifting heavy goods such as steel and containers.

• Construction and infrastructure engineering: Commonly used for scaffolding safety rope fixation, tower crane counterweight rope connection, temporary traction rope fastening during steel structure installation, and temporary fixation or node connection of steel cables in bridge construction.

• Ship and marine engineering: Suitable for mooring ropes and towing ropes on ship decks, safety protection rope connections on offshore platforms, and wire rope end treatment of port hoisting equipment, which can withstand seawater corrosion environment (stainless steel is more suitable).

• Transportation: In the cargo bundling of freight vehicles (such as trucks and trailers), it is used to fasten the wire rope to fix the cargo and prevent the cargo from shifting during transportation; it is also used for the wire rope connection of temporary traction equipment in railway and highway construction.

• Power and energy industry: In power construction, it is used to fix the traction rope of electric poles and transmission towers, fasten the wire rope of wind power generation equipment (such as auxiliary rope for hoisting wind turbine blades), and connect the wire rope of lifting and traction devices in oilfield equipment.

• Agriculture and forestry: It plays a role in the traction rope fixation of agricultural machinery (such as tractors and harvesters), the fastening of the binding rope for timber transportation in forestry, and the connection of the load-bearing rope when building greenhouses.

• Emergency and rescue scenarios: In fire rescue and high-altitude rescue, it is used to fix the temporary rescue rope to ensure the safe suspension and movement of rescue personnel and equipment.
