Qingdao Haosail Machinery Co., Ltd.

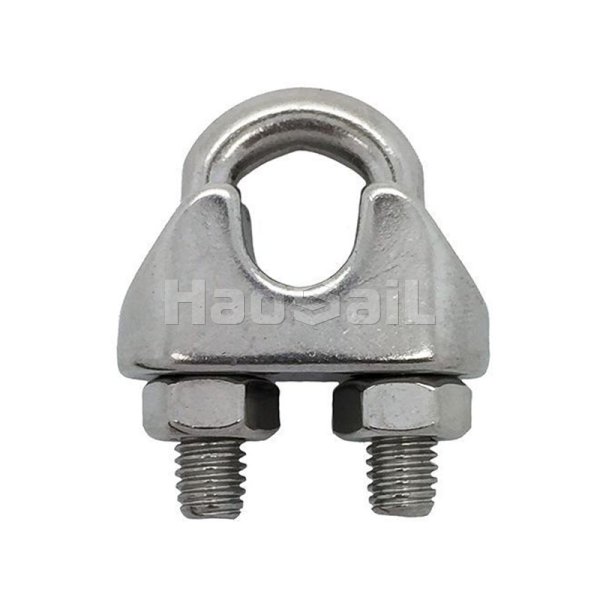

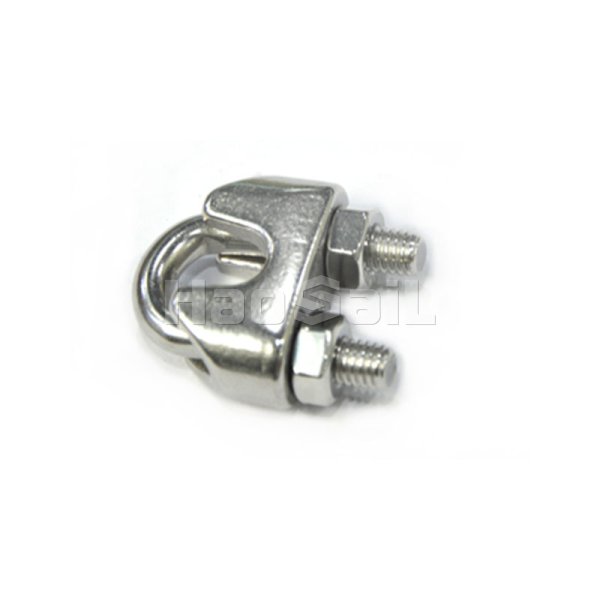

DIN741 Wire Rope Clips Features

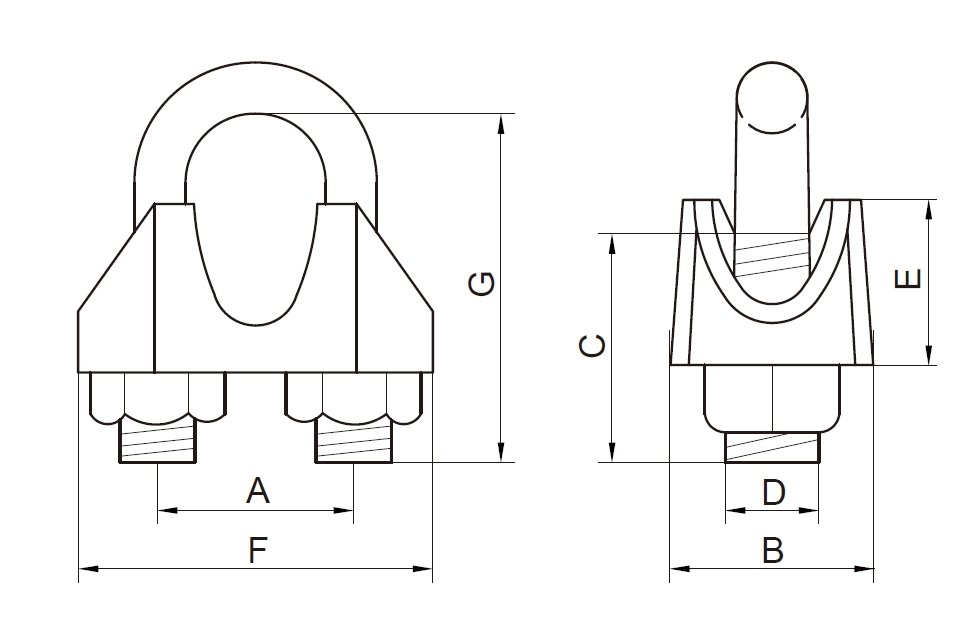

• Strict standards and high precision: Strictly follow the DIN741 standard, the U-bolt size, the arc of the clamp seat and the diameter of the wire rope are precisely matched to ensure uniform force after clamping, no rope damage caused by local extrusion, and the connection reliability is much higher than non-standard parts.

• Material corrosion resistance and wide adaptability: After galvanizing, carbon steel is rust-proof and durable in dry and slightly humid environments, with outstanding cost performance; 304 stainless steel is resistant to atmospheric corrosion and suitable for outdoor buildings; 316 stainless steel contains molybdenum elements and has excellent salt spray resistance, and can be used for a long time in seawater and chemical environments.

• Strong structural design: The U-bolt and the clamp seat form an embracing clamping, with a large contact area and strong friction. It can withstand several tons of tension (such as M20 specifications can carry 20 tons), and it is not easy to loosen in heavy lifting, far exceeding the fixing capacity of ordinary rope clamps.

• Convenient installation and easy operation: No special tools are required, and the nuts can be fixed by manually tightening them, and they can be reused (after checking that there is no deformation), suitable for quick installation and adjustment on site, and improve work efficiency.

• Safety details: Rope protection: The curved inner side of the clamp seat fits the surface of the wire rope to avoid wire breakage caused by sharp contact; the edge is rounded to prevent scratches on the rope or operators during installation.

DIN741 Wire Rope Clips Typical applications

• Industrial lifting and hoisting: connecting the crane hook and wire rope in the factory workshop, fixing the hoisting rope ring of heavy equipment (such as machine tools and molds), ensuring that the rope does not slip during the lifting process, suitable for 10-50 ton lifting operations.

• Building and bridge construction: fixing the end of the tower crane wire rope, connecting the scaffolding safety rope, and temporarily fixing the cable of the cable-stayed bridge, providing reliable connection in high-altitude operations and resisting erosion from wind and rain.

• Ship and maritime operations: fixing cables on ship decks and connecting dock mooring equipment. The 316 stainless steel model is resistant to seawater corrosion, preventing the rope from loosening under the impact of waves, and ensuring the safety of ship mooring.

• Mining and logistics transportation: connecting the wire rope of the mine hoist and the bucket, and the binding rope for fixing heavy objects such as steel and machinery in truck transportation. The clamping force can cope with the changes in tension caused by bumpy road conditions.
