Qingdao Haosail Machinery Co., Ltd.

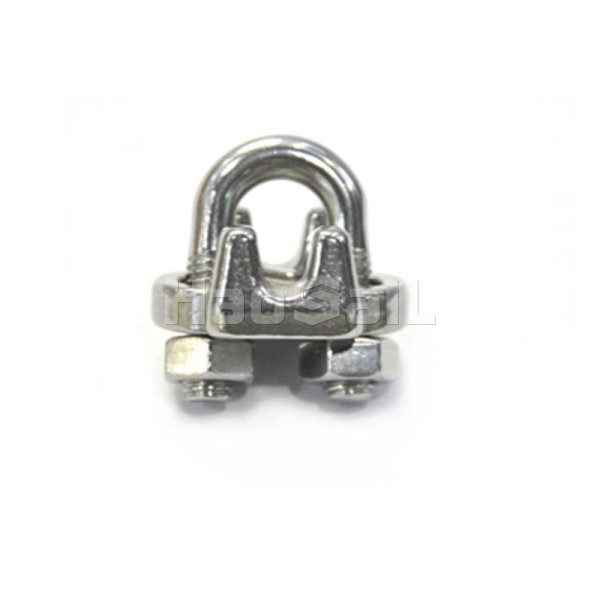

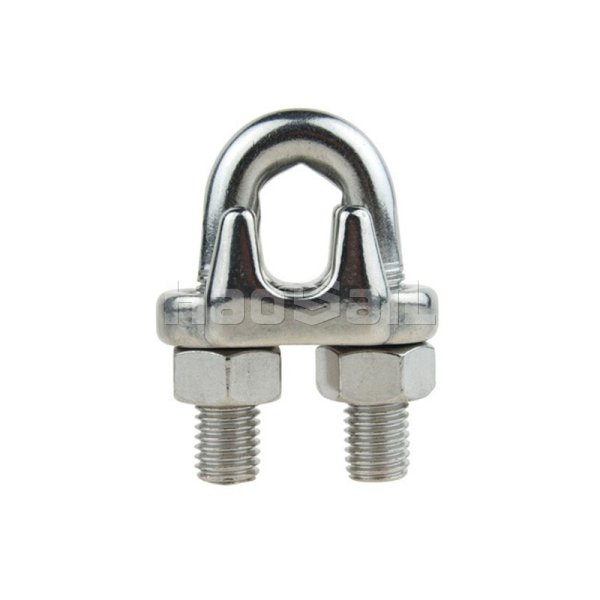

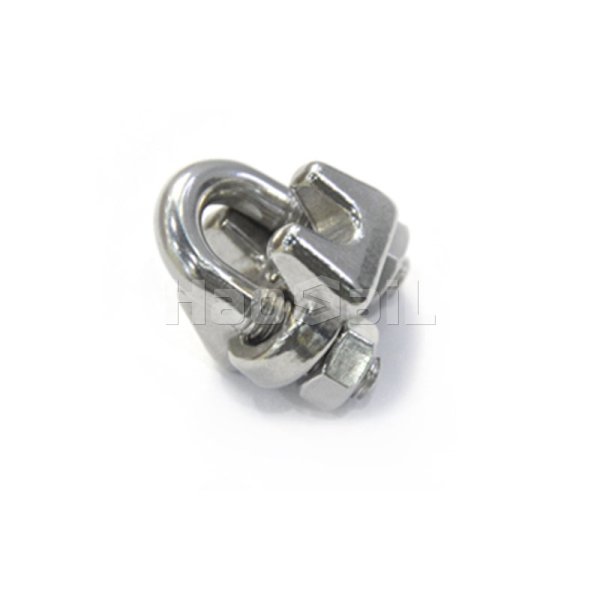

US Type Forged Wire Rope Clips Features

• Product features:

• High strength and durability: The forging process gives it high strength and can withstand large tensile forces, making it suitable for high-intensity operations such as heavy lifting and traction. Hot-dip galvanizing or stainless steel materials give it good corrosion resistance and can be used in a variety of harsh environments.

• Strong clamping force: The saddle is usually equipped with grooves inside to better fit the wire rope, provide stronger clamping force, reduce the risk of wire rope sliding, and ensure the reliability of the connection.

• Compliance with standards: The design and production comply with relevant standards such as the US Federal Specification FF-C-450. The product quality and performance are guaranteed and can meet the safety and reliability requirements of various projects.

US Type Forged Wire Rope Clips Typical applications

• Application fields: widely used in mining machinery, metallurgical equipment, engineering hoisting machinery, aviation and marine, land transportation, power equipment and other fields. It is mainly used for temporary connection of wire rope, fixing of rear hand rope when wire rope is passed through pulley group, and fixing of wind rope head on grab bar.

• Precautions for installation and use: During installation, it should be noted that the saddle should be placed on the main rope side of the wire rope, the U-shaped bolt should be placed at the end of the rope, and the nut should be tightened according to the specified torque. The number and spacing of wire rope clamps should be reasonably determined according to the diameter of the wire rope. Generally speaking, the larger the diameter of the wire rope, the more wire rope clamps are required, and the spacing should also be increased accordingly.
