Qingdao Haosail Machinery Co., Ltd.

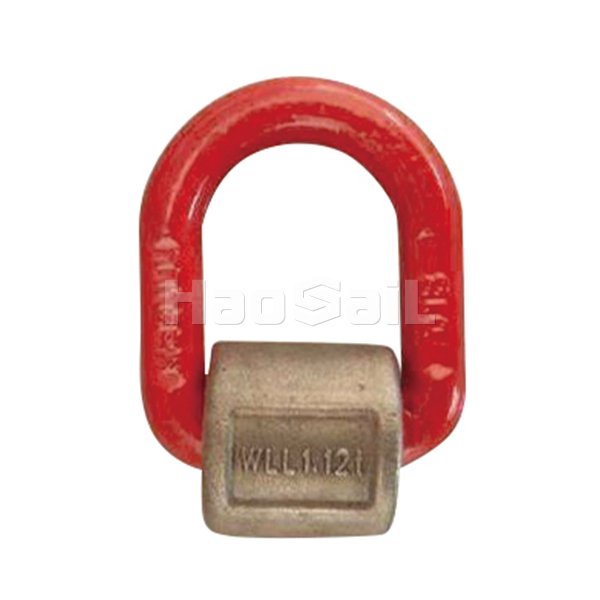

G80 Forged D-Ring with Wrap Features:

• This lifting point can rotate 180° with the force direction

• The lifting ring can be automatically fixed at an angle

• The Product is forged of alloy steel ,quenched and tempered

• Product 100% magnetic particle inspected

• 100% proof test at 2.5 times the working load limit

• Ensure 4 times safety factor at any lifting angle

• Ring manufacturing and testing are conducted according to EN1677-1

G80 Forged D-Ring with Wrap Typical Applications:

• Transportation: fix the transported goods to prevent them from moving or shaking during transportation, and ensure transportation safety.

• Agricultural machinery: used to bundle and fix farm tools, fodder and other items to facilitate agricultural machinery operation and transportation. It can also be used as a fixed point to fix the agricultural machinery on the transport vehicle during the transportation of agricultural machinery to prevent it from shaking.

• Industrial lifting: often used as a lifting point, it can be welded on large equipment and components, and used with slings to achieve equipment lifting and transportation.

• Material handling equipment: when transporting some irregularly shaped goods or goods that require additional fixation, the binding belt can be fixed to the goods through the D-ring to ensure that the goods will not fall during transportation, thereby improving the safety and efficiency of material handling.

• Construction scene: in construction, it can be welded on building components for hoisting prefabricated panels, steel beams and other components. It can also be used as a fixed point on temporary scaffolding and other facilities at the construction site to fix safety facilities such as safety nets and guardrails to ensure the safety of construction personnel. It can also be used to fix construction equipment and materials to prevent them from falling or moving.
