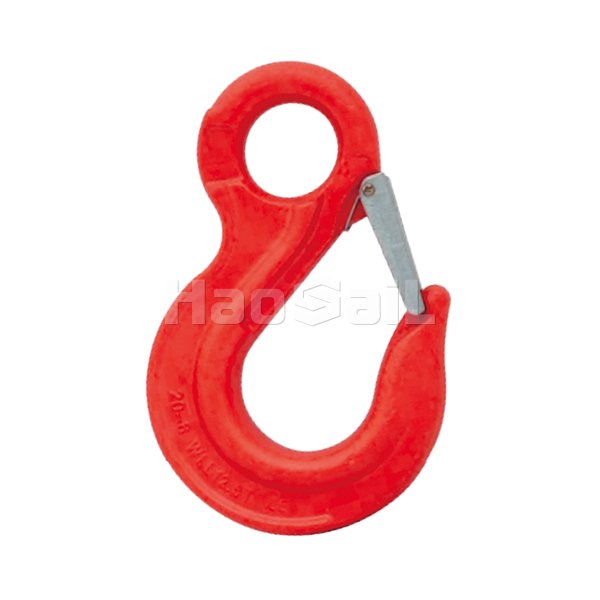

G80 EYE SLING HOOK WITH LATCH

G80 EYE SLING HOOK WITH LATCH is a 80-grade eye-type sling hook with tongue,forged from high-strength alloy steel and quenched and tempered.It is equipped with a safety tongue for high safety, and the breaking force is usually 4 times the working force. It is often used in conjunction with G80 chains for industrial lifting, handling and other scenes, and can be connected to chains and other rigging components.

Inquire Now

Product Data

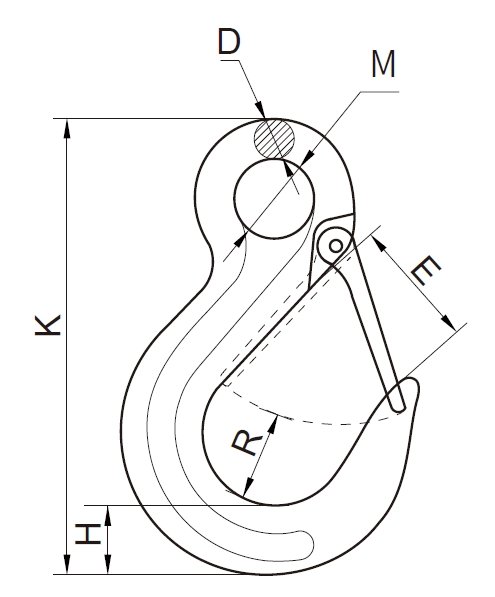

Stock no.	Size (mm)	WLL (t)	K (mm)	M (mm)	D (mm)	R (mm)	H (mm)	E (mm)	Weight (kg)
HS1020901	6-8	1.12	108	20.0	9.0	21.0	19	24	0.31
HS1020902	7/8-8	2	133	25.0	11.0	26.0	24	30	0.45
HS1020903	10-8	3.2	167	38.0	15.0	39.0	32	34	1.09
HS1020904	13-8	5.3	213	43.0	19.0	54.0	42	39	2.07
HS1020905	16-8	8	255	50.0	23.0	64.0	48	46	3.17
HS1020906	20-8	12.5	305	62.0	24.0	80.0	58	60	6.45
HS1020907	22-8	15	348	62.0	32.0	80.0	64	71	8.5
HS1020908	26-8	21.2	394	64.0	35.0	82.0	75	81	13
HS1020909	32-8	31.5	480	88.0	37.0	112.0	97	102	17

Product Details

G80 EYE SLING HOOK WITH LATCH Features:

Material: Forged super alloy steel
Ultimate load is 4 times working load limit, proof load is 2.5 times working load limit.
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

G80 EYE SLING HOOK WITH LATCH Typical Applications:

In the manufacturing industry, it is often used in conjunction with G80-grade chains, lifting belts and other rigging for the installation, relocation and lifting of heavy equipment in workshops. Its safety tongue can firmly lock the hook part to prevent the parts from falling off due to shaking during the lifting process.
The construction industry is another important application scenario. On construction sites, it can be used with tower cranes, hoists and other equipment to hoist steel bar bundles, precast concrete slabs, steel structure components and other building materials.
In the field of ports and logistics, it is a core accessory for cargo handling. Especially when handling irregular or oversized cargo, its stable connection performance and anti-slip tongue design can significantly reduce the risk of loading and unloading.
It also plays an important role in the metallurgical and mining industries. In metallurgical plants, it is used to lift high-temperature or heavy objects such as steel billets, steel coils, and ladles, and withstand the impact and wear in the metal processing environment; in mining operations, it is used with special slings to lift ores, mining equipment, and underground structural components, ensuring the safety of lifting operations even in harsh environments with a lot of dust and high vibration.

FAQ

Q1: What is the material of the product?

It is usually made of high-quality alloy steel, such as 20CrMnTi, etc., and has high strength and good toughness after heat treatment processes such as forging, quenching and tempering.
Q3: What is the safety factor?

The safety factor is 4:1, that is, the breaking load of the product is 4 times the working load limit, which can provide a higher safety guarantee for lifting operations.
Q3: Which chain is suitable for?

It is suitable for G80 chain of EN 818-2 standard, ensuring good cooperation with the chain to ensure the reliability and safety of the connection.
Q3: What inspections are required before use?

Before use, all markings should be clearly visible; the hook should be free of nicks, gouges and cracks; the lock is present and functions properly; and the hook with the correct working load limit is selected according to the sling design, such as the load to be lifted, the number of legs of the sling, the top angle, etc.
Q3: What are the surface treatment methods?

The hook body is usually sprayed with plastic, and the lock can be hot-dip galvanized, galvanized, Dacromet coated or stainless steel to improve corrosion resistance and adapt to different usage environments.
Q3: How often should an inspection be performed?

It is recommended to conduct an inspection at least every six months. If used under harsh working conditions, inspections should be conducted more frequently to ensure that deformation and material structure changes caused by wear, misuse or overload can be discovered in time.
