Qingdao Haosail Machinery Co., Ltd.

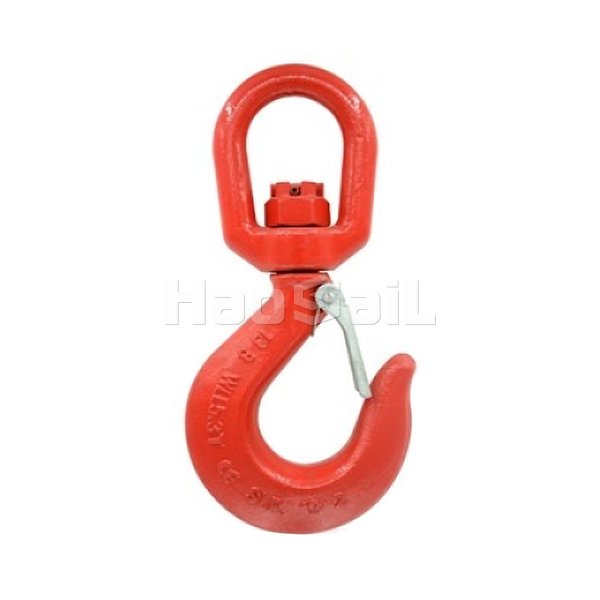

G80 SWIVEL HOOK WITH LATCH Features:

• Material: Forged super alloy steel

• 100% magnaflux crack detection

• Sampling break test for each lot

• Ultimate load is 4 times working load limit

• Fatiuge tested at 1.5 times Working Load Limit for 20000 cycies

G80 SWIVEL HOOK WITH LATCH Typical Applications:

• Construction industry: The hook plays a key role at construction sites. It can connect lifting equipment and slings when lifting construction materials. Its 360° rotation function can effectively reduce the twisting of the slings during lifting, prevent the material from shaking and falling due to uneven force, and ensure that the material is safely and accurately lifted to the designated location.

• Industrial manufacturing field: During the equipment assembly stage, it can lift heavy mechanical parts and accurately dock and install the parts. When the equipment needs to be repaired or moved, the hook can be connected to the lifting equipment to lift and transfer the equipment smoothly.

• Port logistics scenario: During the loading and unloading of ships, it adapts to the lifting angles of different goods through the rotation function, and the design with tongue prevents the goods from accidentally unhooking during the lifting process, ensuring the safe loading and unloading of goods.
