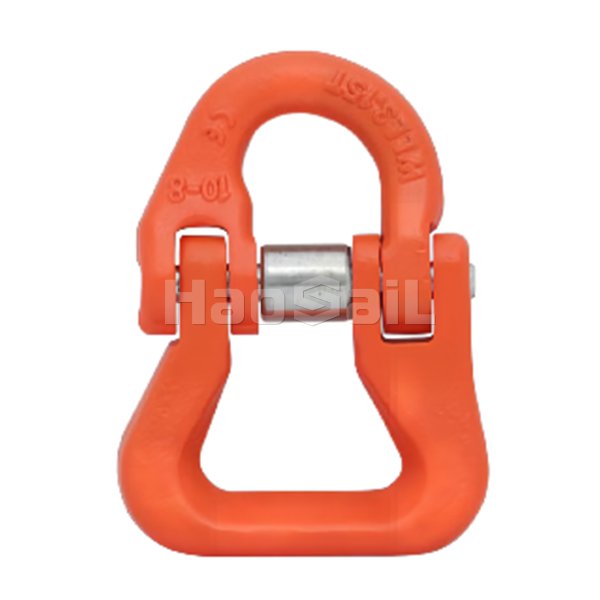

G80 Webbing Connecting Link

G80 WEBBING CONNECTING LINK is also called webbing sling connector.It is made of forged alloy steel,die-forged and quenched and tempered,and the surface is painted or galvanized.It has high strength and durability and complies with EN 1677-4 standards.The size range is usually 6mm to 32mm and can be customized.It is mainly used in the lifting industry to connect chains, main rings or swivel rings, etc.It can be used alone or in conjunction with other rigging.

Inquire Now

Product Data

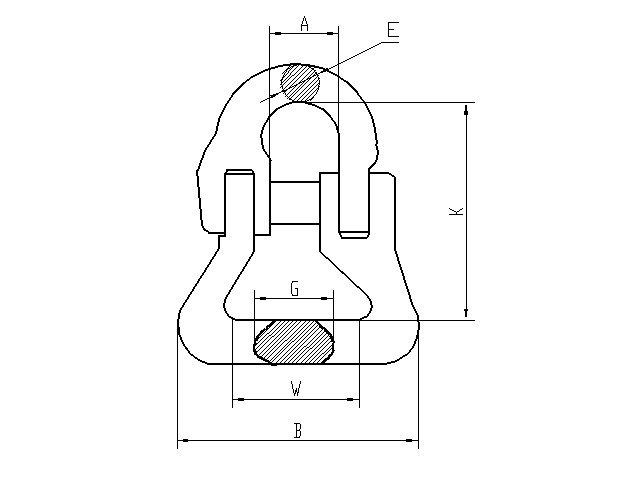

Stock no.	Size ( mm )	WLL (t)	A ( mm )	B ( mm )	K ( mm )	W ( mm )	G ( mm )	E ( mm )	Weight (kg)
Stock no.	Size ( mm )	WLL (t)	A ( mm )	B ( mm )	K ( mm )	W ( mm )	G ( mm )	E ( mm )	Weight (kg)
HS1020801	6-8	1.12	15.2	60.0	56.0	40.0	18.0	7.5	0.20
HS1020802	7/8-8	2.0	20.0	61.5	63.7	40.0	24.0	9.5	0.30
HS1020803	10-8	3.2	24.0	66.0	83.0	39.0	30.5	11.0	0.68
HS1020804	13-8	5.3	28.0	88.0	93.7	55.0	36.8	16.5	1.47
HS1020805	16-8	8.0	36.0	131.1	115.4	80.2	42.0	20.0	2.30
HS1020806	20-8	12.5	42.0	129.0	138.0	80.0	51.8	24.5	3.30
HS1020807	22-8	15.0	49.0	191.0	180.0	126.0	80.0	24.5	6.89
HS1020808	26-8	21.2	58.5	228.4	209.0	152.0	82.0	31.5	10.62
HS1020809	32-8	31.5	67.5	252.0	279.0	160.0	91.0	38.5	18.92

Product Details

G80 Webbing Connecting Link Features:

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Pins are 100% eddy-current test flaw detection
Suitable for EN1492-2 web sling and EN818-2 G80 chain

G80 Webbing Connecting Link Typical Applications:

G80 WEBBING CONNECTING LINK is mainly used in the field of lifting and hoisting. It can connect rigging parts such as chains, lifting rings, hooks, wire ropes or synthetic fiber lifting belts. By connecting these parts together, they are assembled into various forms of slings to achieve the lifting and handling of heavy objects and equipment.
It is widely used in machinery, metallurgy, electricity, railways, water conservancy, ports, docks and other industries. For example, it is used to load and unload goods in ports, to lift steel in the metallurgical industry, and to lift power equipment in the power industry.

FAQ

Q1: What is the material of the product?

Usually made of forged alloy steel, quenched and tempered to obtain maximum tensile strength in accordance with EN 1677-4.
Q3: What is the working load limit?

The working load limit will be permanently displayed on the product body. The maximum verification load is usually 2.5 times the working load limit, and the minimum breaking strength is 4 times the working load limit.
Q3: What is the surface treatment?

The common surface treatment is powder coating, and the colors are yellow (RAL1003) or red (RAL3020), etc. Other colors can also be provided on request.
Q3: What scenarios are suitable for? : Mainly used in the lifting industry, it can be connected to chains, main rings or swivel rings, etc., and is often used in conjunction with webbing slings.
Q2: What needs to be checked before use?

Before use, check whether there are cracks, deformation exceeds 10 degrees, and wear exceeds 10%. If the above conditions occur, it should not be used.
Q3: Has the product been quality tested?

Each workpiece will undergo rigorous testing, with each piece tested at 2.5 times the working load limit, 100% magnetic particle inspection, and pin testing to ensure consistent hardness.
