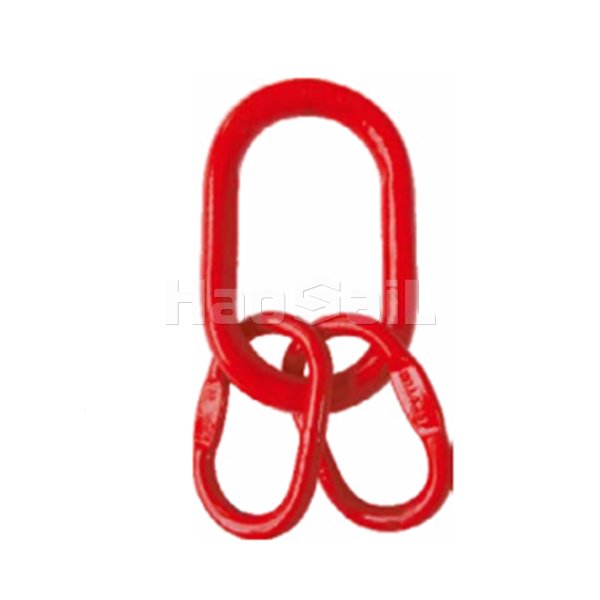

A347 US TYPE MASTER LINK ASSEMBLY

A347 US TYPE MASTER LINK ASSEMBLY (WELDED) is a welded master link sling.It is forged with alloy steel, quenched and tempered,with high strength and good toughness.It consists of a master link and two or more sub-links,which can be connected to double buckles and chains,and are used to assemble slings and hoist heavy objects and equipment.The working load range is usually 2.4 tons - 40 tons, and it is widely used in machinery,metallurgy,power and other industries.

Inquire Now

Product Data

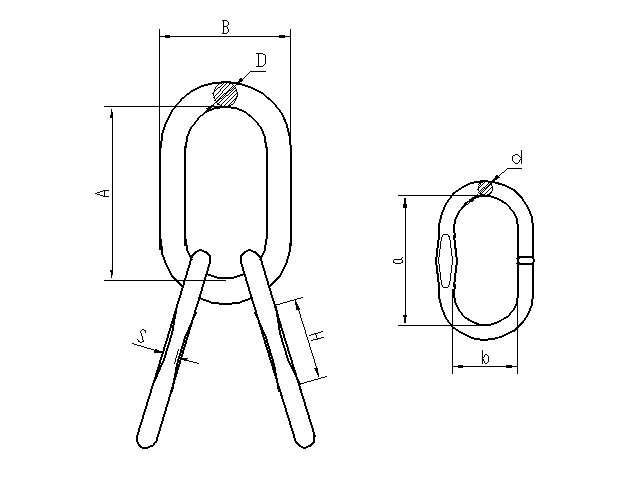

Stock no.	Size (in)	WLL (t)	A (mm)	B (mm	D (mm	a (mm	b (mm	d (mm	Weight (kg)
HS1020501	1/2	2.36	100	60	14	85	40	12	0.82
HS1020502	11/16	3.15	160	90	18	100	60	14	1.60
HS1020503	5/8	3.15	160	90	18	100	60	14	1.60
HS1020504	3/4	4.25	160	90	20	100	60	14	1.95
HS1020505	7/8	6.7	180	100	22	150	70	18	3.16
HS1020506	1	10	270	140	25	155	80	20	5.28
HS1020507	1-1/8	11.2	270	140	28	160	90	22	6.75
HS1020508	1-1/4	17	270	140	32	180	100	25	9.31
HS1020509	1-1/2	26.5	300	160	40	270	140	31	18.40
HS1020510	1-3/4	31.5	340	180	45	285	155	36	26.60
HS1020511	2	45	350	190	51	340	180	45	42.91

Product Details

A347 US TYPE MASTER LINK ASSEMBLY Features:

Material: Forged super alloy steel
100% tested at 2times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
For Chain sling：Minimum Ultimate Load is 4 times the Working Load Limit
For steel rope sling：Minimum Ultimate Load is 5 times the Working Load Limit
The pressing flat for use with G80 OMEGA LINK （ITEM NO GS502）
There will be pressing flat only on request

A347 US TYPE MASTER LINK ASSEMBLY Typical Applications:

Construction industry: It can be used to lift heavy construction materials, such as steel beams, concrete blocks and prefabricated components, to ensure that construction materials can be safely and accurately transported and placed during the construction process.
Mining industry: In mines, it can be used to lift and move large mining equipment and ore containers to meet the handling needs of heavy equipment and materials in mining operations.
Oil and gas industry: It is often used in offshore drilling platforms to lift pipelines, equipment and other related materials, adapt to the offshore operating environment, and ensure the smooth progress of equipment installation and material transportation.
Shipping industry: It plays a role in the process of cargo loading and unloading, especially in situations where precise and safe lifting is required. It can connect chains, hooks and other rigging to achieve efficient loading and unloading of cargo.

FAQ

Q1: What is the material of the product?

It is made of alloy steel that has been quenched and tempered, with high strength and good toughness.
Q3: What is the working load range?

The working load limit (WLL) is typically between 2.4 tonnes and 67 tonnes, depending on the size.
Q3: Are flaw detection and impact testing performed?

100% Magnetic Particle Inspection (MPI) and impact testing are performed, 3.1 test certification is available upon request.
Q3: Which slings is this suitable for? : Suitable for use with G80 lifting chain, with a typical safety factor of 4:1 for chain slings and 5:1 for wire rope slings.
