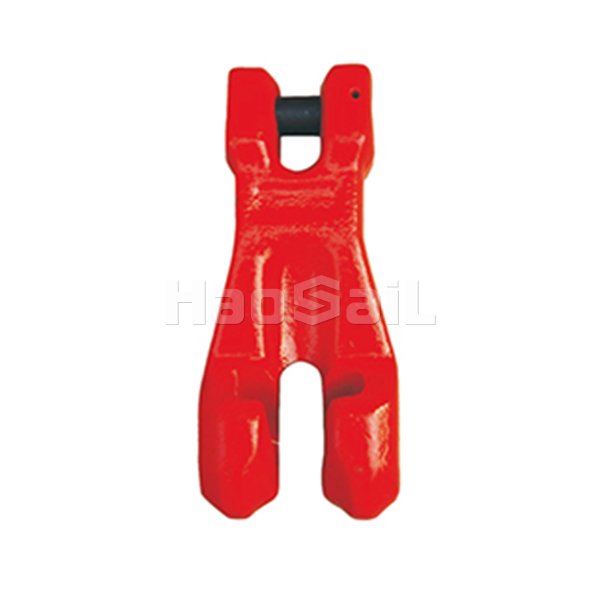

G80 CLEVIS CHAIN CLUTCH

G80 CLEVIS CHAIN CLUTCH is a 80-grade clevis chain tensioner, forged from high-quality alloy steel, quenched and tempered, with high strength and good toughness. It is suitable for G80 chains of EN818-2 standard, and can be easily connected to the chain,and the length can be adjusted by adding or removing chain links. All load-bearing pins are 100% inspected, verified piece by piece at 2.5 times the working load, sampled for 20,000 fatigue tests, and magnetic particle inspection is also performed to ensure safety and reliability. It is widely used in lifting operations in construction, ports, machinery manufacturing and other industries.

Inquire Now

Product Data

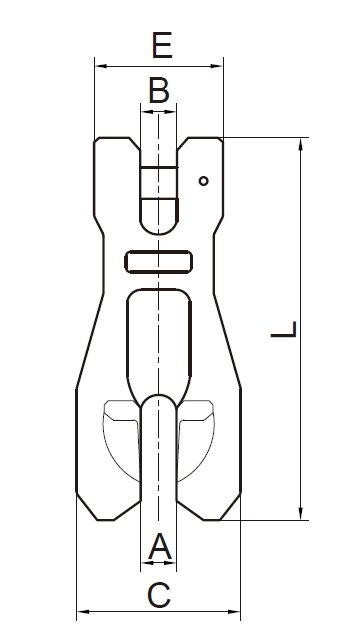

Stock No.	Size ( mm )	WLL(t)	A	B	C	E	L	Weight(kg)
HS1022601	6-8	1.12	7.7	7.7	33.5	31.0	72.5	0.17
HS1022602	7/8-8	2	9.5	9.5	45.0	36.0	100.5	0.40
HS1022603	10-8	3.15	13.0	13.0	55.0	48.0	137.0	0.97
HS1022604	13-8	5.3	16.0	16.0	75.0	59.0	177.0	1.85
HS1022605	16-8	8	21.0	21.0	91.0	73.0	218.0	3.68
HS1022606	18/20-8	12.5	23.0	23.0	100.0	80.0	235.0	4.43
HS1022607	22-8	15	25.5	25.5	118.0	98.0	294.0	8.50
HS1022608	26-8	21.2	30.0	30.0	144.0	110.0	362.0	15.00

Product Details

G80 CLEVIS CHAIN CLUTCH Features:

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Pins are 100% eddy-current test flaw detection
Suitable for EN818-2 G80 chain

G80 CLEVIS CHAIN CLUTCH Typical Applications:

Lifting and hoisting field: At construction sites, it is often used to connect and adjust G80-grade chains to hoist construction materials such as precast concrete slabs, steel beams, etc.
Cargo bundling and fixing scenarios: When transporting large mechanical parts of irregular shapes, it can be used to connect chains, bundle around the goods, and adjust the tightness of the chains so that the goods will not shift due to bumps during long-distance transportation, ensuring transportation safety.
Industrial production auxiliary operations: In mining, it is used to fix and adjust the chain conveyor belt for transporting ore to ensure stable operation of the conveyor belt and avoid obstruction of ore transportation due to loose chains.

FAQ

Q1: What is the material of G80 CLEVIS CHAIN CLUTCH?

Usually made of high-quality alloy steel, after forging, quenching and tempering treatment, it has high strength and high toughness.
Q3: What is the main use of the product?

Mainly used in the lifting and hoisting industry, used in conjunction with chain slings, the length of the chain sling can be adjusted to facilitate operations.
Q3: What are the working load and safety factor?

The limit load is usually 4 times the working load limit, which means the safety factor is 4:1. The specific working load depends on different size specifications.
Q3: Has it been tested? What are the testing standards?

Each workpiece will be tested at 2.5 times the working load limit, and sampling will be conducted and 20,000 fatigue tests, as well as 100% magnetic particle inspection to ensure product quality.
