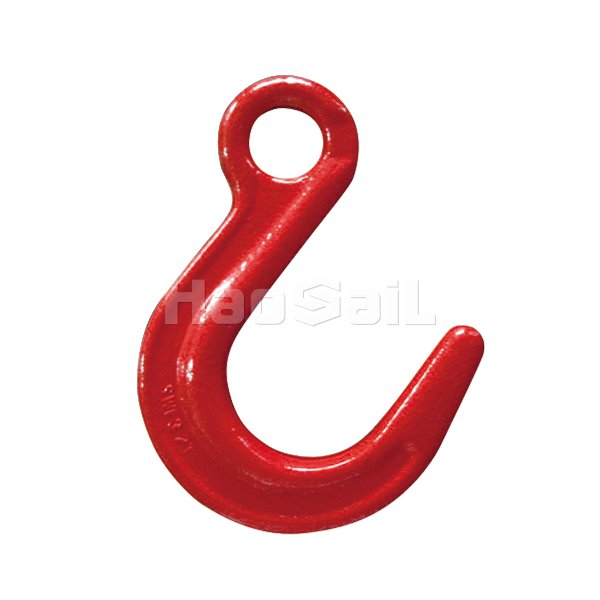

G80 Eye Foundry Hook

G80 Eye Foundry Hook is a G80 eye-shaped foundry hook, which is usually forged from a special alloy steel with high strength and toughness. It is tested for verification at 2.5 times the working tension, and undergoes magnetic particle crack detection during the manufacturing process. It has high strength and safety, and is often used in the field of lifting and hoisting.

Inquire Now

Product Data

Stock no.	WLL (T)	A (mm)	A1 (mm)	C (mm)	D (mm)	E (mm)	F (mm)	L (mm)	J (mm)	WEIGHT (kg)
HS1022001	1.12	21	10	48.6	102	34.9	102	133	20.6	0.38
HS1022002	2	24	13	58.5	128.7	40.5	116.4	158	28.2	0.72
HS1022003	3.2	31	15	59	127.2	40	130.4	175.6	30	0.98
HS1022004	3.8	31.6	15	75	149	47.9	151.5	195	29.8	1.23
HS1022005	5.4	40.3	19.5	88.5	182.5	59.3	183.2	241.4	38.9	2.32
HS1022006	8	49	26	99	213.5	70.5	212.5	284.2	46.7	4.52
HS1022007	12.5	66	28	109.4	244.5	83	247.9	328.4	52.5	6.45
HS1022008	15	66	28	109.4	244.5	83	247.9	328.4	52.5	12.1

Product Details

G80 Eye Foundry Hook Features:

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

G80 Eye Foundry Hook Typical Applications:

Construction sites: During the construction process, it is often used to lift construction materials such as steel bars, formwork, bricks, etc., and can also be used to lift construction equipment. It can also be used in conjunction with cranes and other equipment to participate in the installation of structural parts of high-rise buildings, and accurately lift steel beams, concrete components, etc. to designated locations.
Manufacturing industry: It can be used to lift molds in foundries. Its large opening design facilitates quick connection of the mold's lifting points and improves production efficiency. In mechanical processing plants, it can be used to lift large mechanical parts, such as machine tool beds, engine cylinders, etc., to ensure the safe handling of parts during processing and assembly.
Port transportation: It can be used as an important accessory for port cranes to lift containers, large cargo packaging boxes, etc. Its high strength characteristics can withstand the load brought by frequent port operations and ensure the stability of cargo during loading, unloading and transshipment.
Power industry: In the construction and maintenance of power facilities, transformers, electric poles and other equipment and components can be lifted. For example, in the construction of substations, transformers are lifted and unloaded from transport vehicles to designated locations, or in the construction of overhead transmission lines, electric poles are lifted for assembly.
Shipbuilding industry: During the shipbuilding process, it is used to lift hull sections, large ship equipment, etc. During ship maintenance, it can also be used to lift engines, propellers and other parts to facilitate maintenance personnel to carry out maintenance operations. At the same time, at the port terminal, it can also assist in loading and unloading cargoes on ships to ensure that cargoes are safely and efficiently loaded and unloaded.
Mining and metallurgical industry: Mining cars, excavators and other equipment, as well as ore, mineral powder and other materials can be lifted in mines. In the metallurgical industry, it can be used to lift ingots, steel, etc. In operations such as blast furnace maintenance, it can also lift related maintenance equipment and parts to meet the heavy lifting needs of mines and metallurgical enterprises.
Transportation: In highway large-scale transportation, it can be used to fix and lift large cargoes, such as wind turbine blades, large transformers, etc., to ensure that the cargoes will not shake or fall during transportation. In railway freight, it can be used in conjunction with railway cranes to carry out operations such as the transportation of train carriages and the lifting of railway bridge components.

FAQ

Q1: What is it made of?

It is generally made of G80 alloy steel, which is quenched and tempered to have high strength and good toughness.
Q3: What is the safety factor?

The safety factor is usually 4:1, that is, the minimum breaking strength is 4 times the working load limit, and it will be verified by 2.5 times the working load limit.
Q3: How often maintenance and inspection are required?

For frequently used hooks, it is recommended to check at least once a quarter. The hook can be cleaned with kerosene and checked for cracks with a 20x magnifying glass, paying special attention to dangerous sections and thread return grooves. At the same time, the assembly part of the hook should also be inspected at least once a quarter, cleaned and lubricated.
Q3: What precautions should be taken when using it?

It is strictly forbidden to use hooks with too large opening, hook tip bending more than 10 degrees or other deformations. Hooks with wear exceeding 8% of the rated maximum value are also not allowed to be used. Do not repair or modify the hook by welding, heating, etc., and avoid side loading, back loading or tip loading. When placing two sling legs in the hook, ensure that the angle between the outermost sling leg and the vertical direction is not greater than 45 degrees, and the angle between the two legs does not exceed 90 degrees.
Q3: Are relevant certifications provided?

Relevant certifications are usually provided, and each hook can be equipped with a corresponding certificate to prove that the product meets relevant standards and performance requirements.
Q3: How often do I need to perform maintenance and inspection?

For frequently used hooks, it is recommended to inspect them at least once a quarter. You can clean the hook with kerosene and use a 20x magnifying glass to check for cracks, paying special attention to the dangerous sections and thread return grooves. At the same time, the assembly part of the hook should also be inspected at least once a quarter, cleaned and lubricated.
