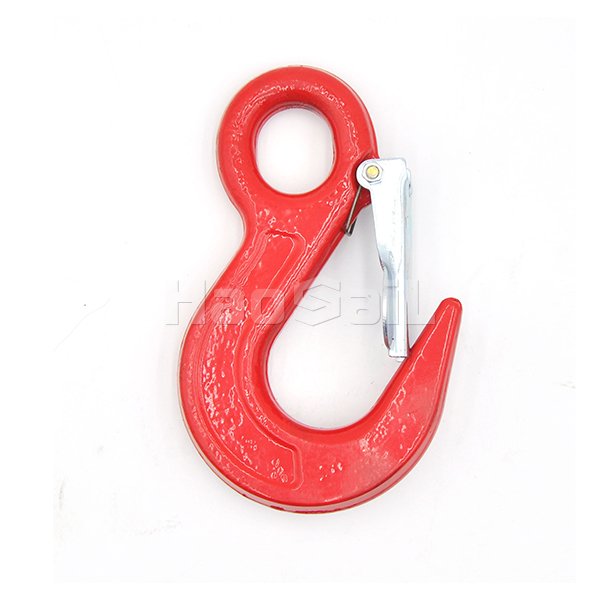

G80 Container Hook

G80 Container Hook is a container hook made of alloy material,which is quenched at high temperature and forged as a whole. It has various models, simple structure, convenient operation, and overall plastic spraying to make it corrosion-resistant and wear-resistant. It is often tested at 2.5 times the working tension, and magnetic particle detection crack detection is performed during the manufacturing process.

Inquire Now

Product Details

G80 Container Hook Features:

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

G80 Container Hook Typical Applications:

Port loading and unloading operations: This is one of the main application scenarios of the G80 container hook. Ports need to frequently load and unload a large number of containers. The 8-ton to 12.5-ton container hook is resistant to salt spray corrosion and has a self-locking design to prevent the goods from shaking and unhooking, which can effectively improve loading and unloading efficiency.
Container transportation: In container trucks, railway container transportation and other links, the G80 container hook is used to lift containers onto or off transport vehicles. It has different angle designs to adapt to different lifting needs, facilitate operation in limited spaces, and ensure that containers can be accurately loaded onto and safely unloaded from transport vehicles.
Heavy equipment transfer: Some heavy machinery and equipment will be transported in container-style packaging or fixed methods. At this time, the G80 container hook can be used for lifting.
Offshore platform operations: Various materials and equipment are often hoisted on offshore platforms. Some G80 container hooks have a plastic spray coating, which can withstand salt spray corrosion and have strong temperature adaptability. They can be used in an environment of -40℃-400℃. They can still retain 75% of their load-bearing capacity at high temperatures, and can adapt well to the harsh environment of offshore platforms and are used for the hoisting and transshipment of related goods.
Industrial equipment installation and maintenance: In factories, for the installation and maintenance of some large equipment, if the equipment uses a fixed frame or packaging similar to a container, the G80 container hook can be used to hoist the equipment components to the designated location. Its high load capacity and reliable connection performance can ensure the safety and stability of heavy equipment components during the hoisting process.
Railway freight: In railway freight yards, the G80 container hook can be used in conjunction with gantry cranes and other equipment to achieve rapid loading, unloading and transshipment of containers. It can efficiently lift containers from train carriages or lift containers onto train carriages, improve the operating efficiency of railway freight, and ensure smooth cargo transportation.

FAQ

Q1: What types and specifications are available?

There are three configurations: left-hand, right-hand and straight, which can meet the needs of lifting at different angles. For example, 45-degree left-hand and right-hand hooks are suitable for tilted lifting in a small space, and straight hooks are suitable for direct vertical lifting.
Q3: What are the product materials and safety factors?

Generally made of G80 alloy steel, the safety factor is usually 4:1, which can ensure the safety of lifting operations.
Q3: How to install and use it correctly?

The hook should be firmly connected to the eyelet of the container corner fitting to ensure a tight connection. It can only be used for lifting purposes. Overloading is strictly prohibited, and the appropriate type of hook should be selected according to the load conditions, such as straight for vertical lifting, left-hand or right-hand for lifting at a specific angle.
Q3: What inspections need to be carried out before use?

Before each use, check whether the hook has cracks, bends or other signs of damage, and ensure that the hook surface is smooth, without nicks, sharp angles, etc. At the same time, confirm whether the safety tongue is intact and functioning properly.
Q3: How often do you need to perform maintenance and inspection?

It is recommended to perform regular inspections. The specific frequency can be determined according to the frequency of use and the working environment. Generally, it should be inspected at least once every six months. If it is used under harsh working conditions, the inspection frequency needs to be increased. After use, the dirt and debris on the surface of the hook should be cleaned in time, and it should be avoided from being stored in a humid or corrosive environment.
Q3: What is the surface treatment of the product?

Common surface treatment methods include hot-dip galvanizing, electrogalvanizing, painting, etc., which can be selected according to needs to improve the corrosion resistance and aesthetics of the hook.

Inquiry Now

If you have any questions or needs about the product, please fill in the following form and we wll contact you as soon as possible.

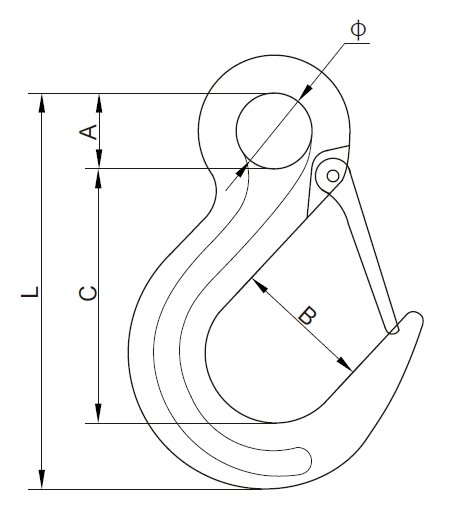

Stock no.	WLL(t)	BL(t)	φ（mm）	A(mm)	B(mm)	C(mm)	L(mm)	Weight(kg)
HS01021901	2	8	24	27	46.5	84	147	0.54
HS01021902	3	12	30	35	49	95	179	1.4
HS01021903	5	20	36	39	55	110	203	1.8
HS01021904	8	32	42	52	68	128	251	3.4
