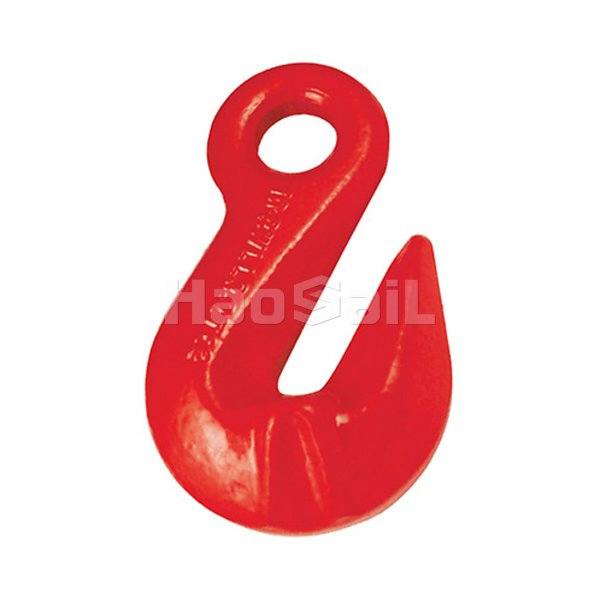

G80 Eye Shortening Grab Hook

G80 Eye Shortening Grab Hook is a G80 eye-shaped shortening grab hook,which is forged with alloy steel and quenched with high strength and toughness. The surface is sprayed with plastic to prevent rust and corrosion. The eye-shaped design is easy to connect, and the grab hook structure can grasp the chain, etc. It is often used in port transportation, power hoisting and other fields to shorten or fix the length of the chain.

Inquire Now

Product Data

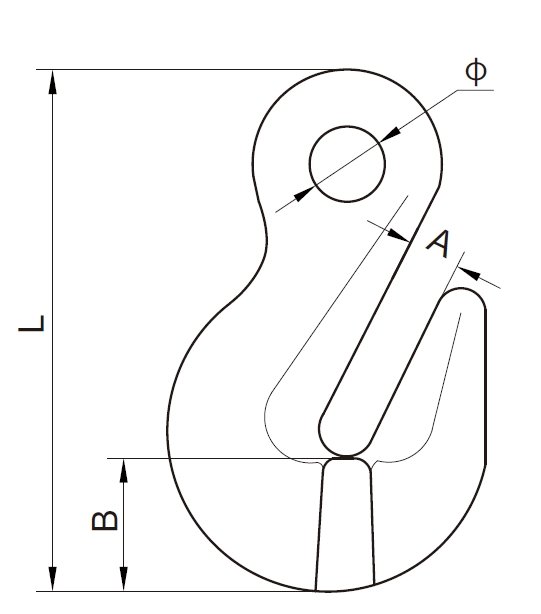

Stock no.	Size (mm)	WLL(t)	φ（mm）	A(mm)	B（mm）	L(mm)	Weight(kg)
HS1021701	6-8	1.2	13.5	8	16	75.2	0.135
HS1021702	7/8-8	2	17	10.8	18.5	88.5	0.25
HS1021703	10-8	3.2	20	13	29	121.5	0.7
HS1021704	13-8	5.3	26	16.5	42.8	158	1.325
HS1021705	16-8	8	30	19.2	45.7	169	2.3
HS1021706	20-8	12.5	37	24	56	219	4.6
HS1021707	22-8	15	44	28	68	259	8.2
HS1021708	26-8	21.2	48	30	77	298	9.8
HS1021709	32-8	31.5	57	38	95	361	19.4

Product Details

G80 Eye Shortening Grab Hook Features:

Material: Forged super alloy steel
100% tested at 2.5 times Working Load Limit
100% magnaflux crack detection
Sampling break test for each lot
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Suitable for EN818-2 G80 chain

G80 Eye Shortening Grab Hook Typical Applications:

Construction: It can be used to lift heavy objects such as steel bars and concrete blocks. It can be used with the G80 lifting chain to hang the grab hook on the chain, and then let the chain pass around the heavy object to achieve easy lifting. It can also be used for bundling and fixing. The chain is wrapped around the object and locked by the grab hook to ensure the stability of the object. It is often used in high-rise buildings, bridge construction and other projects.
Port transportation: In the port, it can be used to lift containers and other goods. It can quickly connect lifting equipment and goods for easy loading and unloading. Its eye-shaped design is easy to connect with various lifting equipment. The grab hook can hold the chain to ensure that the goods are stable during the lifting process and improve the efficiency of port operations.
Mining: It can assist in lifting ore, mine cars, and mining machinery and equipment. When combined with the chain, it can stably lift heavy objects in the harsh environment of the mine. Its high-strength material can withstand large loads and provide reliable support for mining operations.
Logistics and warehousing: used to carry heavy goods. The chain length can be adjusted by the grab hook according to the size and weight of the goods to achieve firm bundling and lifting of the goods, ensuring that the goods will not shake or fall during transportation and storage.
Shipbuilding and maintenance: During ship construction, hull sections, large marine equipment, etc. can be lifted; during maintenance, heavy parts such as engines and propellers can be lifted. It can be used in conjunction with rigging such as marine chains to facilitate the lifting and positioning of heavy objects in the narrow space of the ship.
Industrial equipment installation and maintenance: During the installation and maintenance of large machine tools, generators and other equipment in the factory, it can be used to lift equipment parts. By adjusting the chain through the grab hook, it can flexibly adapt to the lifting needs of different equipment and accurately lift the equipment parts to the installation or maintenance location.

FAQ

Q1: What is the material of this product?

It is usually made of high-strength alloy steel, which has high strength and toughness after forging, quenching and tempering, such as G80 alloy steel, which can ensure reliability and durability under heavy load conditions.
Q3: What is the safety factor of the product?

The safety factor is generally 4:1, that is, the breaking load of the product is 4 times the working load limit, which can effectively ensure safety during use.
Q3: What inspections are required before use?

Before use, all markings should be clearly visible; the hooks should be free of nicks, gouges and cracks; the lock is present and functioning properly; and the hook with the correct working load limit is selected according to the sling design (such as the load to be lifted, the number of legs of the sling, the top angle, etc.).
Q3: How often do you need to check?

It is recommended to check at least every six months. If used under harsh working conditions, it should be checked more frequently to ensure that deformation and material structure changes caused by wear, misuse or overload can be discovered in time.
