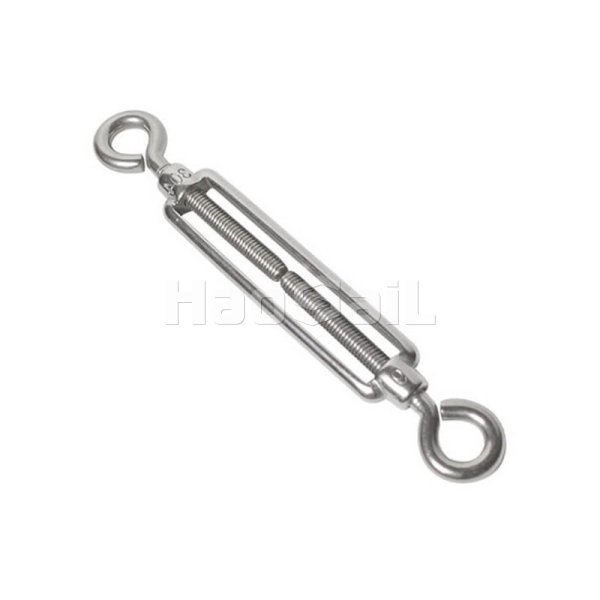

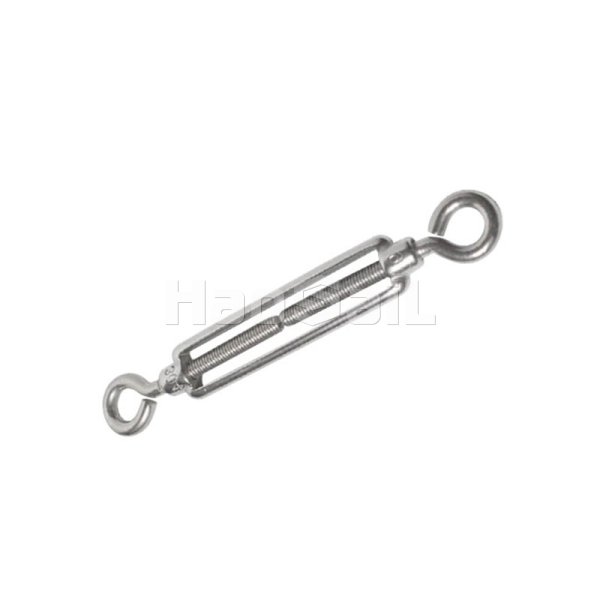

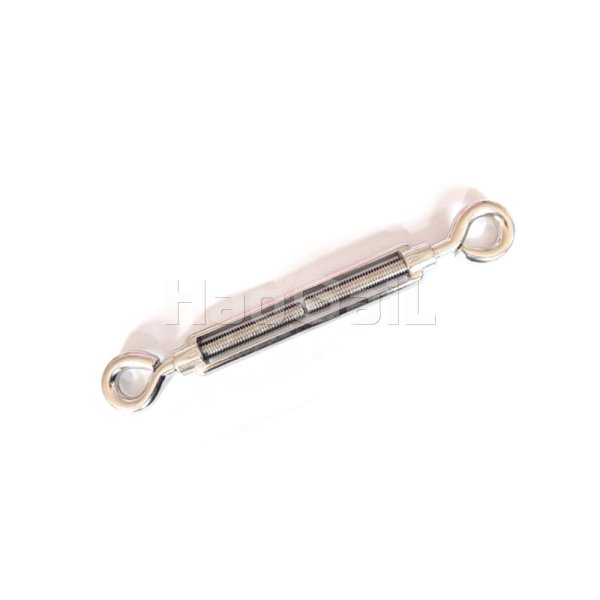

Korean type turnbuckle with eye & eye Features

• Korean standard adaptability: following Korean industrial general standards, the thread accuracy and dimensional tolerance are precisely matched with Korean local connectors (such as KS standard lifting rings and ear plates), and can be assembled without conversion. It has better compatibility than European and American models in Korean equipment import projects.

• Compact structure and space saving: The sleeve length is 15%-20% shorter than the European ring-ring type (such as M16 specification is about 120mm vs European 140mm), and the thickness of the ring joint is thinned by 10% but the strength is maintained, which is suitable for installation scenarios with narrow space (such as agricultural machinery and small equipment).

• Outstanding cost performance: The price of carbon steel hot-dip galvanized model is 10%-15% lower than that of the same specification Japanese ring-ring type, and 20%-30% lower than that of American type. The cost is reduced by optimizing the production process. At the same time, the corrosion resistance of 304 stainless steel model meets the needs of ordinary outdoor use for more than 5 years, taking into account both economy and practicality.

• Smooth adjustment and easy operation: The sleeve surface is knurled, and the friction is 30% greater than that of the smooth sleeve. It can be easily rotated by hand or with a wrench; the clearance between the threaded rod and the sleeve thread is controlled at 0.08-0.12mm, and there is no jamming during adjustment, which is suitable for frequent fine-tuning scenarios (such as billboard support ropes).

Korean type turnbuckle with eye & eye Typical applications

• Construction and decoration engineering: tension adjustment of light steel structures in Korean buildings, suspension system of indoor ceiling keels (connected with embedded pins through ring joints), and fine-tuning of supporting steel cables for glass partitions. 304 stainless steel models are suitable for wet bathrooms, balconies and other scenes.

• Agricultural and horticultural machinery: tensioning device for Korean greenhouse frames, ring joints and greenhouse steel pipe ear plates are firmly connected, and the adjustment sleeve can quickly balance the tension in different areas; transmission system auxiliary tension adjustment for small harvesters and rice transplanters, and compact structure adapts to the limited space inside the machinery.

• Ships and fishing equipment: mooring rope tension control for small offshore fishing boats in South Korea, carbon steel hot-dip galvanized models are rust-proof and durable in freshwater and light seawater environments; frame tensioning of aquaculture cages is fixed, and ring joints are resistant to seawater corrosion (short-term use) to avoid deformation of cages.

• Logistics and small lifting: Cargo tie rope adjustment for Korean trucks (with ring joints and fixed lugs) to ensure that cargo does not loosen during transportation; auxiliary steel cable tension balance for small warehouse cranes, adapted to M12-M20 specifications, meeting 1-5 ton load requirements.

• Outdoor facility maintenance: Adjustment of the inclined support rope for Korean street signs and street light poles, the ring joint is connected to the ground anchor pin, and the force is evenly distributed during wind load resistance; tension control of park fences and guardrails, 304 stainless steel models resist rain corrosion and reduce maintenance frequency.
