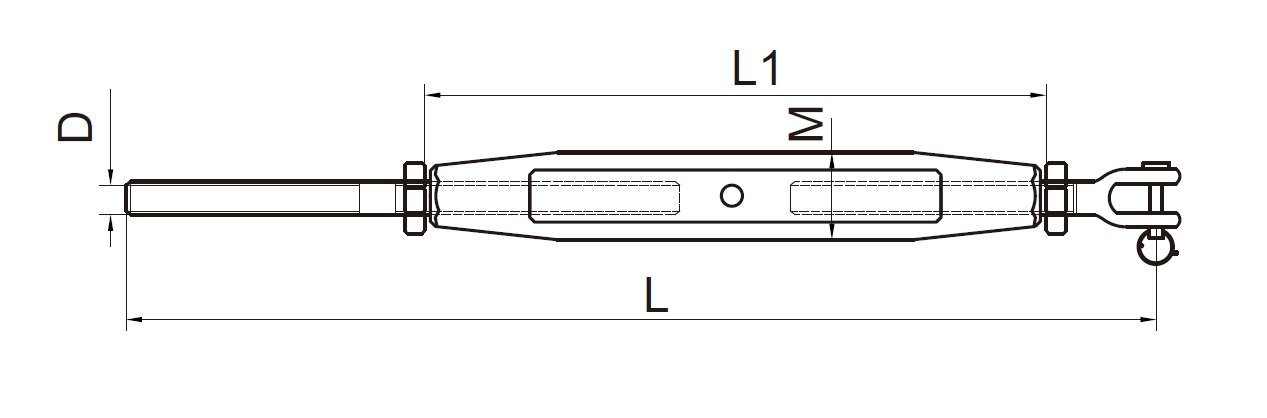

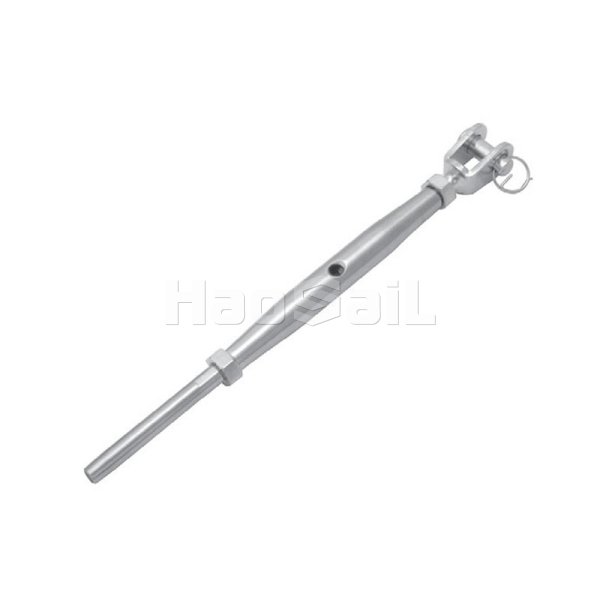

Pipe Turnbuckle with Jaw & Swage Stud Features

• Balance of high strength and light weight: The torsional resistance of the annular section of the steel pipe is better than that of the solid sleeve of the same specification (20% higher torsional strength), but 30% lighter, which is suitable for scenes that are sensitive to self-weight (such as high-altitude erection and suspension systems).

• Strong corrosion resistance: Carbon steel models are usually hot-dip galvanized (zinc layer thickness ≥85μm) and are suitable for outdoor humid environments; stainless steel models (304/316) can withstand salt spray, acid and alkali corrosion, and have a lifespan 5-10 times longer than ordinary cast iron basket screws (especially in marine environments).

• Wide range of applications: load-bearing coverage 0.5-100 tons (depending on specifications), safety factor ≥4.0 (industrial standard), can be adapted to a variety of connectors such as wire ropes, chains, and pull rods.

Pipe Turnbuckle with Jaw & Swage Typical applications

• Pipe Turnbuckle plays a key role in tension adjustment in multiple industries and scenarios due to its high strength, high-precision adjustment and diversified connection methods. The following is a classification description of its typical application scenarios:

• Architecture and Civil Engineering

• Building structure support: used for inclined tie bars and curtain wall support systems of steel structure buildings. By adjusting the length of the pipe turnbuckle, the preload of steel components can be accurately controlled to ensure structural stability (for example: the cable tension adjustment of the glass curtain wall of a high-rise office building uses 316 stainless steel Jaw & Jaw type, which is resistant to outdoor wind and rain corrosion).

• Bridge and tunnel assistance: In temporary bridge supports and tunnel lining reinforcement, high-strength carbon steel galvanized models (Eye & Eye type) are used to balance the force of the support by fine-tuning the tension to avoid local overload (the load-bearing capacity is usually 10-50 tons, and the safety factor is ≥5.0).

• Scaffolding and formwork fixation: The tie system used for large concrete pouring formwork uses the multi-angle compensation capability of the Toggle & Toggle type to adapt to the slight deviation of the formwork installation, and the adjustment accuracy is controlled within 1mm to prevent leakage or deformation.

• Transportation and Shipping Industry

• Shipbuilding and Marine Engineering:

• Tension adjustment of ship anchor chains and cables: 316 stainless steel Hook & Eye type is used, which is resistant to seawater salt spray corrosion (salt spray test ≥5000 hours), and the quick hook design is convenient for quick fixation when docking.

• Deck equipment fixation: Such as the lashing system of lifeboats and containers, which uses the Jaw & Jaw type with pin connection to withstand the bumps and vibrations of the ship during navigation. After adjustment, it is locked and prevented from loosening by double nuts.

• Vehicles and rail transit:

• Cargo fixation of trucks/trailers: Carbon steel galvanized Hook type tubular basket screws are used with steel wire ropes to fix heavy goods such as steel and wood. The adjustment stroke is ≥150mm and is suitable for different cargo sizes.

• Rail transit contact network: In the contact wire tension compensation device of the electrified railway, high-precision stainless steel (16 threads per inch) is used to ensure the stability of the contact wire tension (error ≤ 2%) and avoid wear of the train pantograph.
