Qingdao Haosail Machinery Co., Ltd.

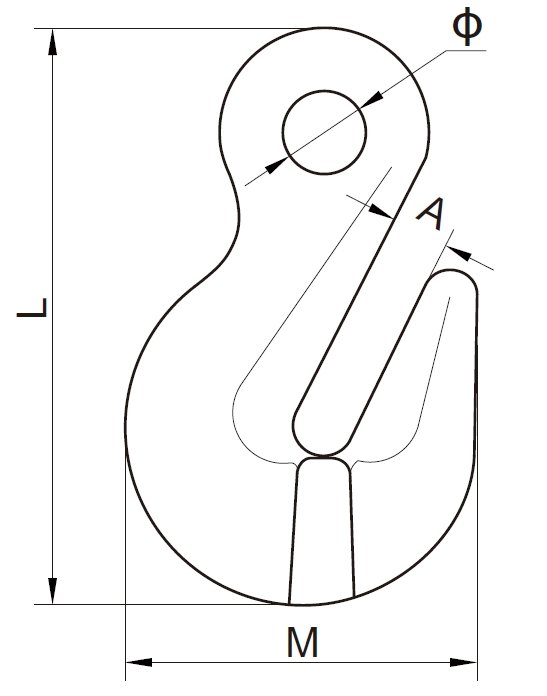

G100 Eye Shortening Grab Hook Features:

• Forged Super alloy steel-Quenched and Tempered

• Suitable for G100 chain

• 25% stronger than G80

• Individually proof test at 2.5 times Working Load Limit

• Fatigue tested at 1.5 times WorkingLoad Limit for 20000 cycles

• Strict sampling and breaking tests are carried out on each batch of products

• 100% magnaflux crack detection

• Surface treatment: Powder plastified

• Colour code: Blue RAL5015

• Ultimate load is 4 times the Working Load Limit

G100 Eye Shortening Grab Hook Typical Applications:

• Construction: It can be used to hoist and position building materials, such as steel bars, formwork, prefabricated components, etc. It can be easily coordinated with equipment such as cranes and tower cranes to ensure that materials are accurately transported to designated locations. In high-rise building construction, it can also be used to install components such as exterior wall decorative panels. The chain length can be adjusted through its shortening function to meet the installation requirements of different heights and positions.

• Transportation: In road transportation, it can be used to fix large cargo on trucks and trailers to prevent cargo from moving during transportation. In ports, it can cooperate with equipment such as cranes to hoist containers or other heavy cargo. By adjusting the chain length, it is convenient to transfer cargo between cabins or transport vehicles at different heights.

• Manufacturing: During the assembly, commissioning and maintenance of large mechanical equipment in the factory, the grab hook is often used to hoist parts, such as large motors and transformers. It can flexibly adjust the chain length according to the installation position and height of the equipment to ensure accurate installation of parts. At the same time, in the material handling of the production line, it can efficiently hoist raw materials and finished products to improve production efficiency.

• Energy industry: In oil and natural gas extraction operations, it is used to hoist and move heavy equipment such as drilling equipment and pipelines. In the field of wind power generation, it can be used for the hoisting of wind turbine towers, blades and other components. By shortening or adjusting the chain length, it can adapt to different installation heights and angles to ensure the smooth installation and maintenance of wind turbines.

• Forestry: It can be used to hoist logs during forest felling and timber transportation. Through its shortening function, the length of the hoisting chain can be adjusted according to the size and quantity of the logs, making it convenient to transport the logs from the felling site to the designated location or load them onto the transport vehicle.

• Aerospace: It can be used to hoist large components such as aircraft engines and wings during aircraft manufacturing and maintenance. Due to the high hoisting accuracy requirements in the aerospace field, the grab hook can accurately adjust the chain length to meet the high-precision requirements of component installation. At the same time, its high-strength characteristics can also ensure the safety and reliability of the hoisting process.
