Qingdao Haosail Machinery Co., Ltd.

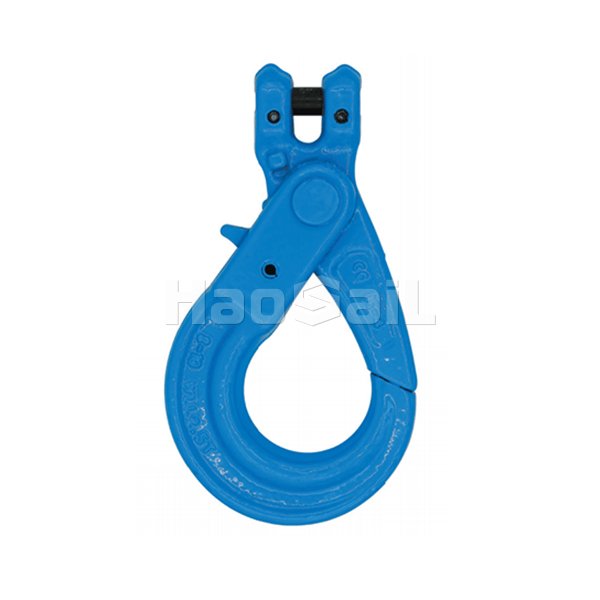

G100 Clevis Self-Locking Hook Features:

• Forged Super alloy steel-Quenched and Tempered

• Suitable for G100 chain

• 25% stronger than G80

• Individually proof test at 2.5 times Working Load Limit

• Fatigue tested at 1.5 times WorkingLoad Limit for 20000 cycles

• Strict sampling and breaking tests are carried out on each batch of products

• 100% magnaflux crack detection

• All load pins are 100% individually inspected and tested

• Surface treatment: Powder plastified

• Colour code: Blue RAL5015

• Positive lock latch is selflocking when hook is loaded

• Ultimate load is 4 times the Working Load Limit

G100 Clevis Self-Locking Hook Typical Applications:

• Construction: It can be used to connect wire rope slings or chain slings, as a connection point between equipment such as excavators and hoisted objects, to lift building materials, prefabricated components, etc. It can also be used to lift and fix components when building scaffolding to ensure the safe lifting of materials and components during construction.

• Industrial manufacturing: It is often used for the lifting and transportation of large mechanical equipment parts in factories, such as lifting engine cylinders, large gears, etc. in heavy machinery manufacturing. It can also be used for material transportation in production lines to transport raw materials or semi-finished products from one place to another to ensure the smooth production process.

• Warehousing and logistics: It can be used in conjunction with cranes, gantry cranes, forklifts and other equipment for loading, unloading and handling of goods. It can be directly connected to the G100 chain to lift and stack large goods, facilitate the storage and transportation of goods in the warehouse, and improve the efficiency of logistics operations.

• Transportation: In ports, it can be used to lift containers or other large goods to ensure the safety of goods during loading and unloading. In road and rail transport, it can be used to hoist large machinery or vehicles onto transport vehicles, and it can also be used to secure cargo during transport to prevent it from moving or falling during transport.

• Offshore operations: In the offshore oil and gas field, it can be used for the installation and maintenance of equipment on offshore platforms, such as hoisting drilling equipment parts, etc. It can also be used to connect ropes led from cranes to hoist materials from supply ships to platforms, or to move heavy objects on platforms.

• Power engineering: In power plant construction, it can be used to hoist large equipment such as generators and transformers. During the construction and maintenance of power lines, it can hoist poles, tower components, etc. It can also be used to lift and secure tools and equipment required for high-altitude operations to ensure the safety and smooth progress of power engineering construction.
