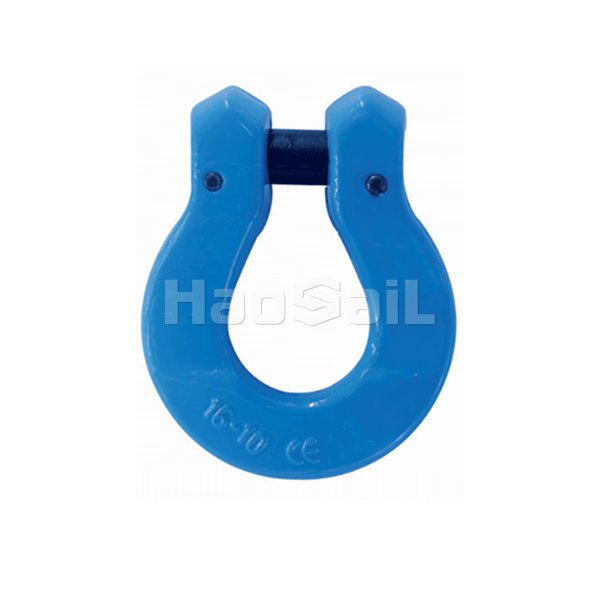

G100 Omega Link Features:

• Forged super alloy steel-Quenched and Tempered

• Suitable for G100 chain

• 25% stronger than G80

• Individually proof test at 2.5 times Working Load Limit

• Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles

• Strict sampling and breaking tests are carried out on each batch of products

• 100% magnaflux crack detection

• All load pins are 100% individually inspected and tested

• Surface treatment: Powder plastified

• Colour code: Blue RAL5015

• Ultimate load is 4 times the Working Load limit

G100 Omega Link Typical Applications:

• Oilfield hoisting: In the process of oilfield exploitation, it is used to hoist various large equipment, such as pumping units, drilling equipment, etc. These equipment are large in size and heavy in weight. With its high strength and reliable connection performance, G100 Omega Link can ensure the safety and stability of the equipment during the hoisting process. It can be combined with G100 chain to form a sling to accurately hoist the equipment to the designated location.

• Mining operations: A large amount of ore, mechanical equipment, etc. need to be hoisted in the mine. G100 Omega Link can be used to assemble lifting chain slings, hoist heavy equipment such as mine cars and crushers, and can also be used to hoist support equipment in the mine, etc., to meet the high-intensity and high-frequency lifting requirements in the mining environment. Its good wear resistance and corrosion resistance adapt to the harsh working environment of the mine.

• Port loading and unloading: G100 Omega Link can be matched with G100 chain to form different forms of slings for crane loading and unloading operations. It can connect multiple chain branches to form a multi-leg sling, improve the lifting capacity and stability, and efficiently complete the loading, unloading and handling of cargo.

• Shipbuilding and maintenance: During the shipbuilding process, it is necessary to lift hull sections, large ship equipment, etc. G100 Omega Link can be used as a chain connection component to participate in the construction of the lifting rigging system to ensure the safety and reliability of the lifting of hull parts and equipment. During ship maintenance, it can also be used to lift certain parts of the ship for repair or replacement.
