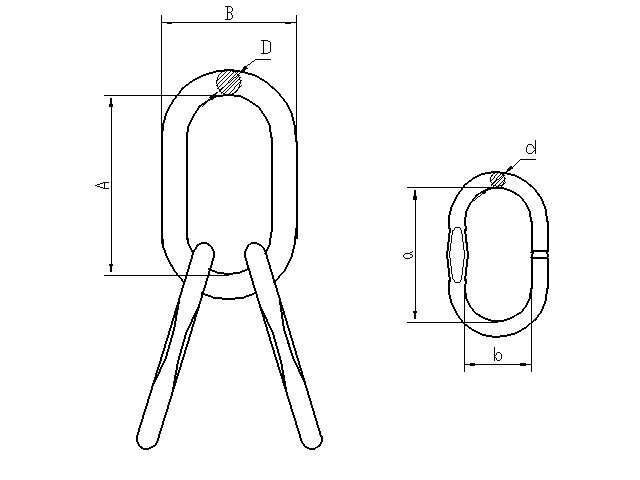

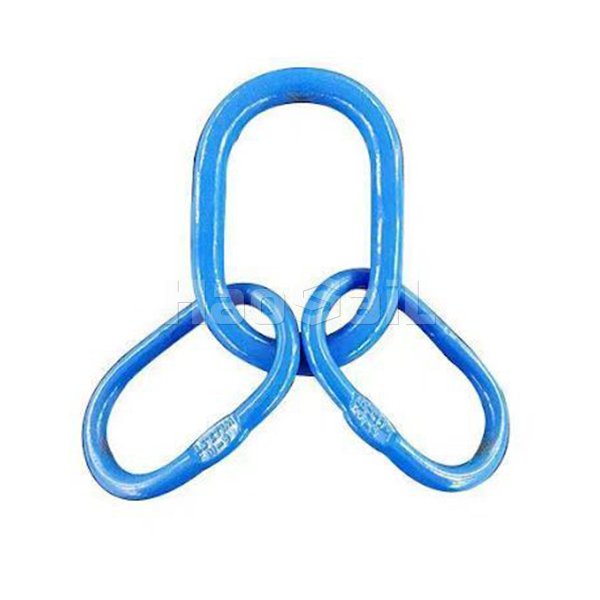

G100 Master Link Assembly Features:

• Forged Super alloy steel-Quenched and Tempered

• Suitable for G100 chain

• 25% stronger than G80

• Individually proof test at 2.5 times Working Load Limit

• Fatigue tested at 1.5 times WorkingLoad Limit for 20000 cycles

• Strict sampling and breaking tests are carried out on each batch of products

• 100% magnaflux crack detection

• Surface treatment: Powder plastified

• Colour code: Blue RAL5015

• All sizes: Main Link:forged  Sub Link:welded

• According to EN1677-4

G100 Master Link Assembly Typical Applications:

• Heavy equipment handling: In the machinery manufacturing and metallurgical industries, it is often used to carry heavy workpieces such as large machinery and equipment, castings and forgings. The chain rigging can be connected to the lifting point of the workpiece through the G100 main chain ring assembly, and the workpiece can be moved and installed using equipment such as cranes.

• Port and railway loading and unloading: In port and railway freight scenarios, it is used to load and unload containers, large cargo, etc. It can be combined with other lifting accessories to form a rigging system suitable for loading and unloading of different cargoes, improving loading and unloading efficiency and safety.

• Bridge construction: During the bridge construction process, it is used to hoist prefabricated bridge components, such as beams and piers. It can withstand huge loads and ensure that the components do not break or other dangerous situations during the hoisting process, ensuring the smooth progress of bridge construction.

• Shipbuilding and maintenance: In shipbuilding workshops, it can be used to hoist hull sections, large ship equipment, etc.; during ship maintenance, it is also often used to hoist certain parts of the ship for repair or replacement, and is an indispensable component in the lifting operation of the shipbuilding industry.
