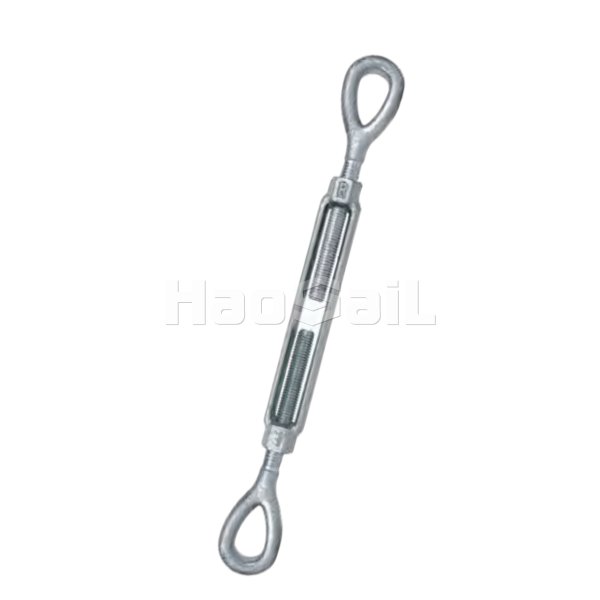

US type turnbuckle with eye & eye is a tension adjustment device with closed eye holes (eye) at both ends. The main body is mostly made of high-quality carbon steel, which has excellent strength and toughness after forging process. Some high-end products use 316 stainless steel, which has excellent corrosion resistance. It has left-handed and right-handed threads inside. By rotating the middle adjustment body, the distance between the eye holes at both ends can be accurately adjusted to achieve tension adjustment of ropes, steel cables, etc. This product is widely used in industry, construction, shipbuilding and other fields to ensure the safety and stability of operations, and the eye hole design is convenient for stable connection with pins, bolts, etc.

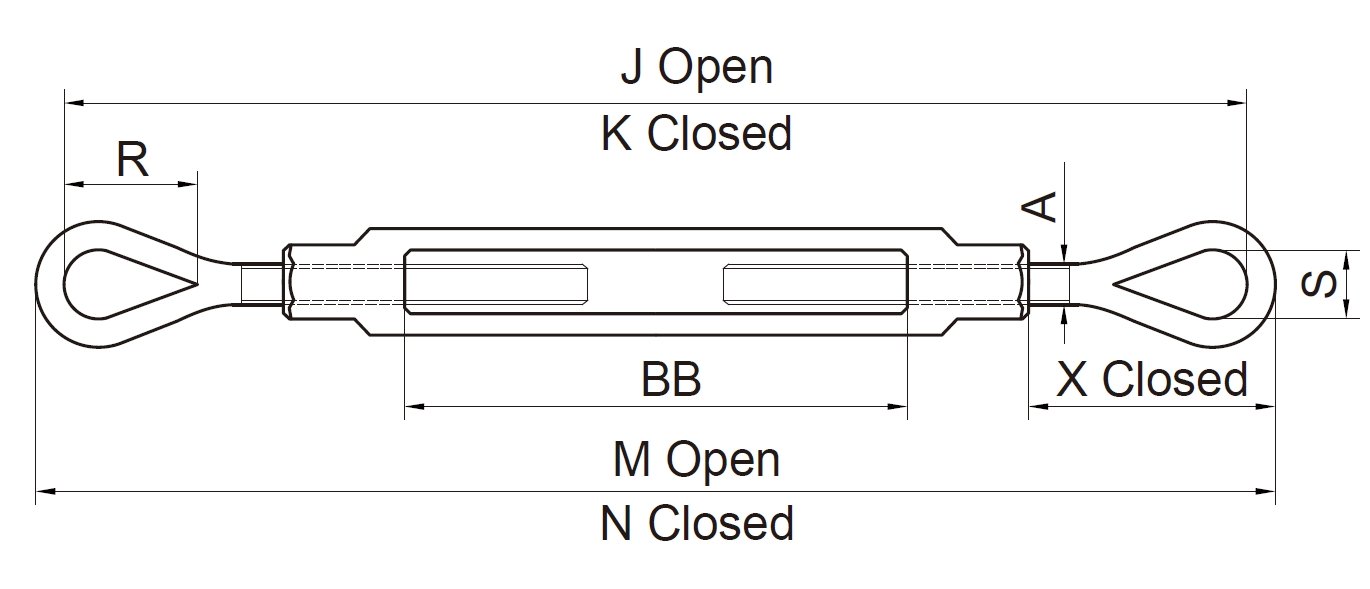

| Stock no. | Size (in) | WLL (lbs) | Dimensions(in) | Weight (lbs) | ||||||||
| A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | ||||
| HS2020801 | 1/4*4 | 500 | 0.25 | 11.80 | 7.80 | 12.25 | 8.25 | 0.78 | 0.34 | 1.75 | 4.00 | 0.26 |
| HS2020802 | 5/16*4-1/2 | 800 | 0.31 | 13.56 | 9.06 | 14.12 | 9.62 | 0.94 | 0.44 | 2.09 | 4.50 | 0.45 |
| HS2020803 | 3/8*6 | 1200 | 0.38 | 17.47 | 11.47 | 18.16 | 12.16 | 1.12 | 0.53 | 2.52 | 6.00 | 0.76 |
| HS2020804 | 1/2*6 | 2200 | 0.50 | 20.08 | 13.08 | 20.96 | 13.96 | 1.44 | 0.72 | 3.23 | 6.00 | 1.54 |
| HS2020805 | 1/2*12 | 2200 | 0.50 | 32.08 | 19.08 | 32.96 | 19.96 | 1.44 | 0.72 | 3.23 | 12.00 | 2.14 |
| HS2020806 | 5/8*6 | 3500 | 0.63 | 21.93 | 14.68 | 22.93 | 15.68 | 1.75 | 0.88 | 3.90 | 6.00 | 2.40 |
| HS2020807 | 5/8*12 | 3500 | 0.63 | 33.93 | 20.68 | 34.93 | 21.68 | 1.75 | 0.88 | 3.90 | 12.00 | 3.42 |
| HS2020808 | 3/4*6 | 5200 | 0.75 | 23.88 | 16.38 | 25.12 | 17.62 | 2.09 | 1.00 | 4.69 | 6.00 | 3.79 |
| HS2020809 | 3/4"12 | 5200 | 0.75 | 35.88 | 22.38 | 37.12 | 23.62 | 2.09 | 1.00 | 4.69 | 12.00 | 5.48 |
| HS2020810 | 3/4*18 | 5200 | 0.75 | 47.88 | 28.38 | 49.12 | 29.62 | 2.09 | 1.00 | 4.69 | 18.00 | 7.19 |
| HS2020811 | 7/8*12 | 7200 | 0.88 | 37.07 | 23.32 | 38.57 | 24.82 | 2.38 | 1.25 | 5.10 | 12.00 | 7.22 |
| HS2020812 | 1*12 | 10000 | 1.00 | 37.97 | 25.97 | 41.97 | 27.72 | 3.00 | 1.44 | 6.36 | 12.00 | 11.50 |
| HS2020813 | 1*18 | 10000 | 1.00 | 51.97 | 31.97 | 53.72 | 33.72 | 3.00 | 1.44 | 6.36 | 18.00 | 14.00 |
| HS2020814 | 1*24 | 10000 | 1.00 | 63.97 | 37.97 | 65.72 | 39.72 | 3.00 | 1.44 | 6.36 | 24.00 | 17.25 |
| HS2020815 | 1-1/4*12 | 15200 | 1.25 | 42.81 | 28.31 | 45.06 | 30.56 | 3.56 | 1.81 | 7.72 | 12.00 | 19.00 |
| HS2020816 | 1-1/4*18 | 15200 | 1.25 | 54.81 | 34.31 | 57.06 | 36.56 | 3.56 | 1.81 | 7.72 | 18.00 | 23.00 |
| HS2020817 | 1-1/4*24 | 15200 | 1.25 | 66.81 | 40.31 | 69.06 | 42.56 | 3.56 | 1.81 | 7.72 | 24.00 | 27.00 |
| HS2020818 | 1-1/2*12 | 21400 | 1.50 | 45.50 | 30.50 | 48.00 | 33.00 | 4.06 | 2.12 | 8.62 | 12.00 | 27.50 |
| HS2020819 | 1-1/2*18 | 21400 | 1.50 | 57.50 | 36.50 | 60.00 | 39.00 | 4.06 | 2.12 | 8.62 | 18.00 | 31.00 |
| HS2020820 | 1-1/2*24 | 21400 | 1.50 | 69.50 | 42.50 | 72.00 | 45.00 | 4.06 | 2.12 | 8.62 | 24.00 | 37.50 |
