US type turnbuckle with eye & hook is a common tension adjustment device. One end is a closed eye, which can be firmly connected with a pin, bolt, etc.; the other end is an open hook, which is convenient for quickly hooking ropes, chains and other objects. The main body material is mostly made of high-quality carbon steel, which is processed by forging technology and has high strength and good toughness. Some high-end products use 316 stainless steel, which has excellent corrosion resistance. It has left-handed and right-handed threads inside. By rotating the adjustment body in the middle, the distance between the two ends can be accurately changed to achieve tension control of ropes, cables, etc. It is widely used in industry, construction, ships and other fields to ensure the safety and stability of related operations.

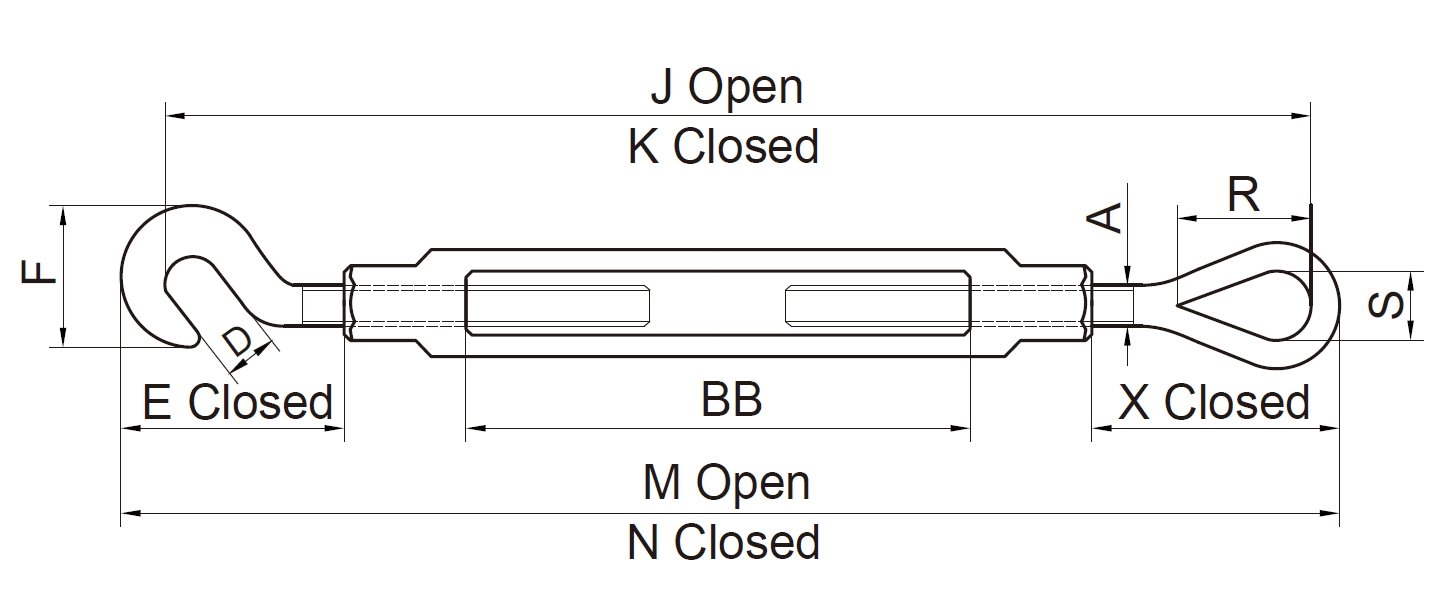

| Stock no. | Size (in) | WLL (lbs) | Dimensions(in) | Weight (lbs) | |||||||||||
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | ||||
| HS2020701 | 1/4*4 | 400 | 0.25 | 0.45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | 0.78 | 0.34 | 1.75 | 4.00 | 0.29 |
| HS2020702 | 5/16*4-1/2 | 700 | 0.31 | 0.50 | 1.94 | 1.50 | 13.19 | 8.69 | 13.47 | 9.47 | 0.94 | 0.44 | 2.09 | 4.50 | 0.49 |
| HS2020703 | 3/8*6 | 1000 | 0.38 | 0.56 | 2.30 | 1.77 | 16.98 | 10.98 | 17.94 | 11.94 | 1.12 | 0.53 | 2.52 | 6.00 | 0.78 |
| HS2020704 | 1/2*6 | 1500 | 0.50 | 0.66 | 2.94 | 2.28 | 19.45 | 12.45 | 20.67 | 13.67 | 1.44 | 0.72 | 3.23 | 6.00 | 1.61 |
| HS2020705 | 1/2*12 | 1500 | 0.50 | 0.66 | 2.94 | 2.28 | 31.45 | 18.45 | 32.67 | 19.67 | 1.44 | 0.72 | 3.23 | 12.00 | 2.26 |
| HS2020706 | 5/8*6 | 2250 | 0.63 | 0.90 | 3.69 | 2.81 | 21.96 | 13.96 | 22.72 | 15.47 | 1.75 | 0.88 | 3.90 | 6.00 | 2.70 |
| HS2020707 | 5/8*12 | 2250 | 0.63 | 0.90 | 3.69 | 2.81 | 33.21 | 19.96 | 34.72 | 21.47 | 1.75 | 0.88 | 3.90 | 12.00 | 3.78 |
| HS2020708 | 3/4*6 | 3000 | 0.75 | 0.98 | 4.52 | 3.33 | 23.13 | 15.63 | 34.95 | 17.45 | 2.09 | 1.00 | 4.69 | 6.00 | 3.89 |
| HS2020709 | 3/4"12 | 3000 | 0.75 | 0.98 | 4.52 | 3.33 | 35.13 | 21.63 | 36.95 | 23.45 | 2.09 | 1.00 | 4.69 | 12.00 | 5.83 |
| HS2020710 | 3/4*18 | 3000 | 0.75 | 0.98 | 4.52 | 3.33 | 47.13 | 27.63 | 48.95 | 29.45 | 2.09 | 1.00 | 4.69 | 18.00 | 6.33 |
| HS2020711 | 7/8*12 | 4000 | 0.88 | 1.13 | 5.19 | 3.78 | 36.53 | 22.78 | 38.66 | 24.91 | 2.38 | 1.25 | 5.10 | 12.00 | 8.10 |
| HS2020712 | 1*12 | 5000 | 1.00 | 1.25 | 5.84 | 4.25 | 38.80 | 24.80 | 41.20 | 27.20 | 3.00 | 1.44 | 6.36 | 12.00 | 11.93 |
| HS2020713 | 1*18 | 5000 | 1.00 | 1.25 | 5.84 | 4.25 | 50.80 | 30.80 | 53.20 | 33.20 | 3.00 | 1.44 | 6.36 | 18.00 | 14.00 |
| HS2020714 | 1*24 | 5000 | 1.00 | 1.25 | 5.84 | 4.25 | 62.80 | 36.80 | 65.20 | 39.20 | 3.00 | 1.44 | 6.36 | 24.00 | 17.25 |
| HS2020715 | 1-1/4*12 | 6500 | 1.25 | 1.50 | 7.22 | 5.13 | 41.63 | 27.13 | 44.56 | 30.06 | 3.56 | 1.81 | 7.72 | 12.00 | 19.00 |
| HS2020716 | 1-1/4*18 | 6500 | 1.25 | 1.50 | 7.22 | 5.13 | 53.63 | 33.13 | 56.56 | 36.06 | 3.56 | 1.81 | 7.72 | 18.00 | 23.00 |
| HS2020717 | 1-1/4*24 | 6500 | 1.25 | 1.50 | 7.22 | 5.13 | 65.63 | 39.13 | 68.56 | 42.06 | 3.56 | 1.81 | 7.72 | 24.00 | 24.00 |
| HS2020718 | 1-1/2*12 | 7500 | 1.50 | 1.88 | 8.34 | 5.75 | 44.72 | 29.72 | 47.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12.00 | 27.50 |
| HS2020719 | 1-1/2*18 | 7500 | 1.50 | 1.88 | 8.34 | 5.75 | 56.72 | 35.72 | 59.72 | 38.72 | 4.06 | 2.12 | 8.62 | 18.00 | 31.00 |
| HS2020720 | 1-1/2*24 | 7500 | 1.50 | 1.88 | 8.34 | 5.75 | 68.72 | 41.72 | 71.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24.00 | 37.50 |
