Qingdao Haosail Machinery Co., Ltd.

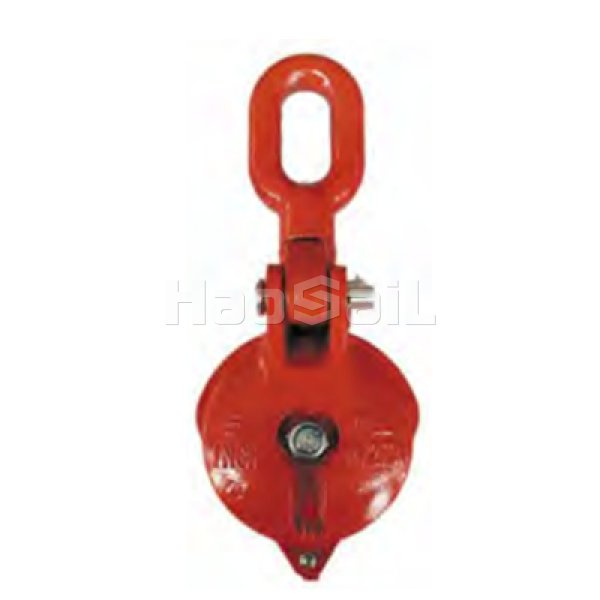

A002 Snatch Block with Swivel Eye Feature

• Strong load-bearing capacity: Some products have a working load capacity of 4,400 pounds (about 2 tons) and a breaking load of up to 10,000 pounds (about 4.5 tons), which can be used to lift and pull heavier objects, such as construction materials, heavy equipment, etc.

• Flexible rotation design: Equipped with a 360° rotating hook, it can automatically adapt to the angle of the load, effectively prevent the rope from twisting and wearing, and make the lifting process smoother and smoother. At the same time, there is a 180° swing ring, which can easily adjust the traction angle, and can be flexibly operated even in a small space.

• Strong and durable material: Usually made of high-quality alloy steel, it has high strength and good wear resistance. The pulley can be adapted to 3/8-inch ropes, and its groove design can firmly fix the rope in place, reduce the risk of slipping, and ensure a stable and reliable lifting process.

• Convenient and efficient use: The side panels of the pulley block are fixed by safety pins and are easy to open. Just slide open the side panel to put the rope in, without the effort of passing the rope through the pulley. The operation is quick and easy, suitable for single-person operation.

• Higher safety: The rotating hooks of some products are equipped with safety locks to prevent the rope from accidentally unhooking, further improving safety during use.

A002 Snatch Block with Swivel Eye Typical applications

• Construction: On construction sites, it can be used to lift building materials such as bricks, steel, and concrete components. With a crane or winch, it can change the direction of force, making it easier to lift or move heavy objects to a designated location. It can also help lift related parts during the erection and dismantling of scaffolding in high-rise buildings to improve construction efficiency.

• Vehicle rescue: Suitable for road rescue scenarios, such as when a vehicle is stuck in mud, snow, or rolls over, it can be used in conjunction with the trailer's winch to tow the trapped vehicle to a safe area. Its rotating eye design can adapt to different trapped angles of the vehicle, prevent the rope from twisting, and ensure the smooth progress of the rescue process.

• Factory heavy object handling: This pulley can play an important role when carrying heavy equipment or parts within the factory. For example, when lifting large machine tool parts from the processing area to the assembly area, or transferring heavy workpieces between production lines, it can be used with lifting equipment such as cranes and electric hoists in the factory to facilitate the adjustment of the lifting direction of heavy objects and achieve precise positioning.

• Ship operations: During the loading and unloading process of the ship, it can assist the crane to lift the cargo from the dock to the ship, or from the ship to the dock. At the same time, during the repair and maintenance of the ship, it can be used to lift ship equipment and parts to facilitate the maintenance personnel to work. Its corrosion resistance also enables it to adapt to the relatively humid and salty environment on the ship.

• Warehouse and logistics: In the warehouse, it can be used for lifting and handling of goods. For example, lifting goods from the storage shelves to the shipping area, or in high-rise warehouses, with forklifts and other equipment, to achieve the handling of goods between different floors or shelves. In the logistics distribution center, it can also be used for the loading and unloading and transshipment of large goods to improve the efficiency of logistics operations.

• Oil and gas industry: At oil drilling platforms and natural gas extraction sites, it can be used to lift heavy objects such as drilling equipment and pipeline components. During the pipeline laying process, it can help to pull the pipeline so that it can be laid smoothly in place, adapting to the complex working environment in the field and the traction needs of various angles.
