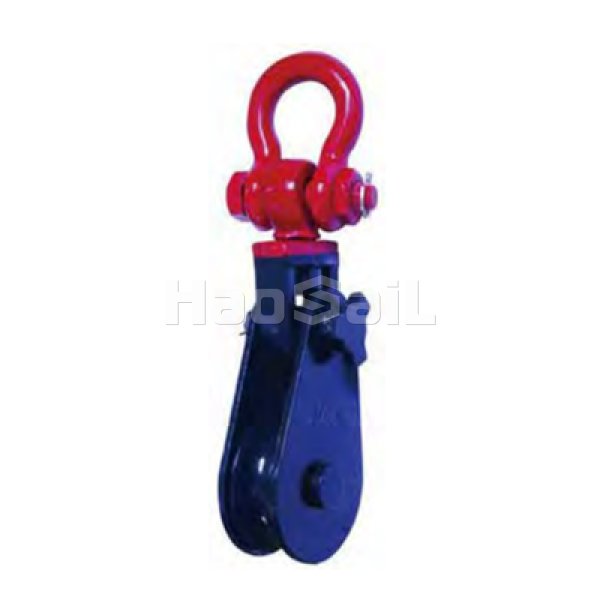

WST058 H419 Light Champion Snatch Block with Shackle Feature

• High-strength material: The shackle, swivel tee and fork frame are made of forged steel using forged alloy heat treatment process, which has high strength, can withstand large loads, and is wear-resistant and impact-resistant.

• Interchangeable parts: The hook (H418) and shackle assembly (H419) of products with sizes from 4.5 inches to 14 inches are interchangeable, which increases the flexibility of use and the versatility of parts.

• Various pulley specifications: The pulley diameters are available in 3 inches, 4.5 inches, 6 inches and other specifications, suitable for ropes with different diameters from 12mm to 32mm, which can meet various operation needs.

• Flexible bearing selection: Bronze bushings or rolling bearings can be equipped. Bronze bushings have good self-lubrication and rolling bearings have low friction resistance. Users can choose according to actual working conditions and preferences to obtain better rotation performance.

• Convenient opening design: With the opening function, even if the pulley is in a suspended state, the rope can be directly inserted without threading, which is convenient and quick to operate. At the same time, the pulleys from 3 inches to 18 inches are equipped with bolt fixing springs to prevent the loss of the opening bolts.

• Easy lubrication and maintenance: Equipped with pressure lubrication joints, it is easy to lubricate internal components, which can effectively reduce friction and wear, extend service life, and make maintenance easy.

• Reliable safety performance: Fatigue rated design, can withstand repeated loads. The limit load is 4 times the working load limit, with a high safety factor. And the product complies with relevant standards, making it safer to use.

• Wide range of application scenarios: Mainly used for lifting, traction and other operations, often used in truck cranes, winches, logging, mining and construction industries, can change the direction of rope tension, and be used with other rigging and slings to meet the lifting needs of different scenarios.

WST058 H419 Light Champion Snatch Block with Shackle Typical applications

• Building construction: In the construction of high-rise buildings, it can be used with winches and other equipment to lift building materials such as steel bars and formwork to the high working surface. In the process of bridge construction, it can be used to lift bridge components, such as prefabricated beams, etc. It can also assist in lifting heavy machinery such as piling equipment during foundation construction to facilitate the movement and positioning of equipment.

• Mining: It can be used for the installation and maintenance of underground equipment in mines, such as lifting ventilation equipment, drainage pumps, etc. In open-pit mines, it can assist in the transportation of ore, lifting ore from the mining point to the transport vehicle or processing site, and can also be used in projects such as mine slope management to lift related construction materials and tools.

• Shipbuilding and maintenance: During ship construction, ship parts such as engines and hull structural parts can be lifted. In the ship maintenance scenario, the parts that need to be repaired can be lifted to facilitate the operation of maintenance personnel. It can also be used for the displacement and positioning of ships in the dock, and cooperate with other equipment to accurately position the ship in the dock.

• Power engineering: In the construction of overhead power transmission lines, it can be used to lay out the conductors, and change the pulling direction of the conductors through the pulleys, so that the conductors can be smoothly erected. In the construction of substations, it can hoist transformers, switch cabinets and other power equipment to help the equipment be accurately installed at the designated location.

• Logistics warehousing: In large warehouses, it can be used with forklifts, cranes, etc. for loading and unloading and handling of goods, especially suitable for hoisting heavy goods. It can hoist and unload goods from transport vehicles to the warehouse, or hoist them from the warehouse storage area to the shipping port, improving the efficiency of logistics operations.

• Automobile rescue and maintenance: At the automobile rescue site, it can cooperate with trailers, winches, etc. to drag and shift faulty or accident vehicles. In automobile repair shops, it can be used to hoist large parts such as automobile engines, which is convenient for maintenance personnel to inspect and maintain vehicles.

• Forestry felling: In forest felling operations, it can be used to lift felled trees and transport them from the felling site to the collection point. They can also assist in lifting wood processing equipment at wood processing sites and lift processed wood to storage areas or transport vehicles.
