Single Point Mooring Rope

Single Point Mooring Rope

SINGLE POINT MOORING (SPM) ROPE is a high-strength dynamic cable designed for offshore single-point mooring systems. It is mainly used for long-term mooring operations of tankers, FPSOs (Floating Production Storage and Offloading Units) and other large ships. This type of cable adopts a multi-layer composite structure, usually composed of high-strength synthetic fibers (such as polyester, HMPE or aramid) and a wear-resistant sheath. It has extremely high tensile strength, fatigue resistance and environmental adaptability. SPM ROPE can withstand dynamic loads in extreme marine environments, including wind and wave impact, tidal changes and long-term ultraviolet radiation, ensuring the safety and stability of ships when moored at a single point.

Inquire Now

Product Data

Structure: 8/12 Strand or inner core with jacket

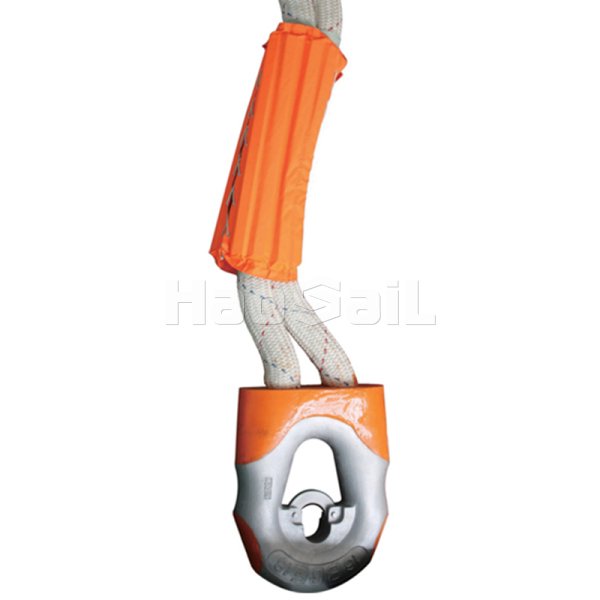

Made of polyamid fiber, inner core with out jacket make the rope has good shock-absorption and abrasion resistance. Put special coating and metal accessory on rope ends and plus oat foam, Production according to OCIMF 2000 Guideline

Specific Gravity:1.14g/cm3 、Melting Point: 215°C 、Breaking Elongation：15%-28% 、Abrasion Resistance: Very Good 、Chemical Resistance：Very Good 、UV Resistance: Very Good 、Floatable 、Bespoke diameter and length

Stock no.	Size mm	Circ.mm	Weight g/m	Single Leg BS kN	Grommet BS kN
HS5030701	72	226	3330	1196	2033
HS5030702	80	251	4000	1441	2465
HS5030703	88	276	4800	1715	2916
HS5030704	96	301	5740	2029	3465
HS5030705	104	327	6880	2401	4082
HS5030706	112	352	7880	2744	4665
HS5030707	120	377	9290	3185	5415
HS5030708	128	402	10380	3548	6047
HS5030709	136	427	12000	4087	6963
HS5030710	144	452	13320	4508	7664
HS5030711	152	477	14630	4900	8330
HS5030712	160	502	16230	5390	9163
HS5030713	168	528	17900	5929	10079
HS5030714	176	553	19800	6586	11212
HS5030715	180	565	20410	6733	11451

Product Details

SINGLE POINT MOORING (SPM) ROPE Product Features：

Dynamic load optimization: special fiber weaving process absorbs wave energy and reduces impact.
Ultra-high strength: using high-performance materials (such as Dyneema® or Vectran®), the breaking strength is far higher than steel cables.
Corrosion & UV resistance: resistant to seawater, oil and UV, suitable for long-term offshore operations.
Low creep & low elongation: maintains stable length to avoid relaxation due to long-term load.
Wear-resistant sheath: outer protective design to reduce friction damage with buoys or seabed.

SINGLE POINT MOORING (SPM) ROPE Main applications：

FPSO & tanker mooring: long-term fixation of offshore oil storage and transportation vessels.
LNG carrier: dynamic positioning assistance for liquefied natural gas ships.
Deep-sea mooring system: used in conjunction with anchor chains for deep-sea oil and gas field development.
Marine energy projects: mooring of floating wind power platforms and wave energy devices.

FAQ

Q1: What are the advantages of SPM ROPE compared with traditional anchor chains?

A: It is lighter and more flexible, which can effectively reduce the impact of dynamic loads on the structure. It is also easy to install and maintain.
Q3: How to choose the right fiber material?

A: Polyester rope is economical and fatigue-resistant. HMPE rope has the highest strength but is expensive. You need to choose it according to your budget and operating environment.
Q3: Is regular inspection required?

A: Yes! It is recommended to check wear, UV aging and internal fiber status every 6-12 months, especially in tropical waters.
Q3: How to calculate the maximum allowable load (MBL)?

A: It needs to be determined based on the ship's tonnage, sea conditions and safety factor (usually ≥3), and needs to be evaluated by professional engineers.
Q3: Can it be used in polar environments?

A: You need to choose a low-temperature resistant model (such as special coating HMPE). Ordinary polyester ropes may become brittle at -40°C.

Key tips: The SPM system design must comply with international standards such as API RP 2SM, and load simulation testing must be performed before installation!
