Ratchet tie down end fittings refer to the metal connectors at both ends of the ratchet tie down belts used to connect cargo or fixed points. They are the core components that realize the "connection and fixation" function in the tie down system. Their main function is to connect the tie down belts to the fixed points of cargo and transportation tools (such as trucks and trailers), and cooperate with the ratchet mechanism to complete the tightening and stabilization of the cargo, ensuring that the cargo does not move or fall during transportation and handling.
![]() | Stock No.:5.02.04.07 Size: 1" Breaking load: 800-1500kg Surface:Dipping plastic |
![]() | Stock No.:5.02.04.08 Size: 1 1/2"-2" Breaking load: 3000-5000kg Surface:Galv. |
![]() | Stock No.:5.02.04.09 Size: 1"-4" Breaking load: 800-10000kg Surface:Galv. |
![]() | Stock No.:5.02.04.10 Size: 1 1/16"-3" Breaking load: 1500-10000kg Surface:Galv. |
![]() | Stock No.:5.02.04.11 Size: 1 1/2"-4" Breaking load: 3000-10000kg Surface:Galv. |
![]() | Stock No.:5.02.04.12 Size: 2"-4" Breaking load: 10000-17000kg Surface:Galv. |
![]() | Stock No.:5.02.04.01 Size: 1" Breaking load: 800kg |
![]() | Stock No.:5.02.04.02 Size: 1 1/16" Breaking load: 1500kg |
![]() | Stock No.:5.02.04.03 Size: 1 1/2" Breaking load: 2000kg |
![]() | Stock No.:5.02.04.04 Size: 2" Breaking load: 5000kg |
![]() | Stock No.:5.02.04.05 Size: 3" Breaking load: 10000kg |
![]() | Stock No.:5.02.04.06 Size: 4" Breaking load: 10000kg |
Load-bearing matching: Select end fittings with corresponding load-bearing capacity according to the rated working load (WLL) of the ratchet strap to ensure that the breaking strength of the fittings is not lower than the requirements of the strap to avoid safety accidents caused by insufficient fitting strength.

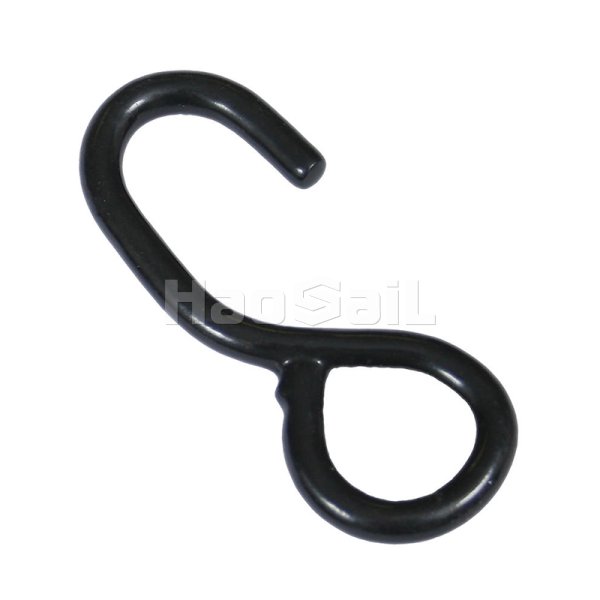

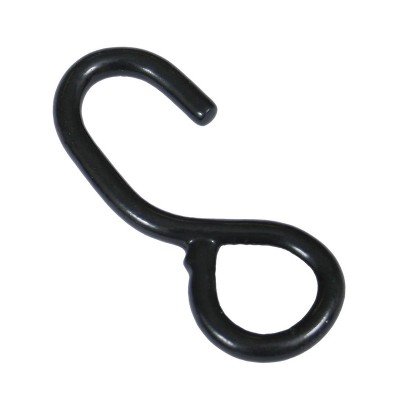

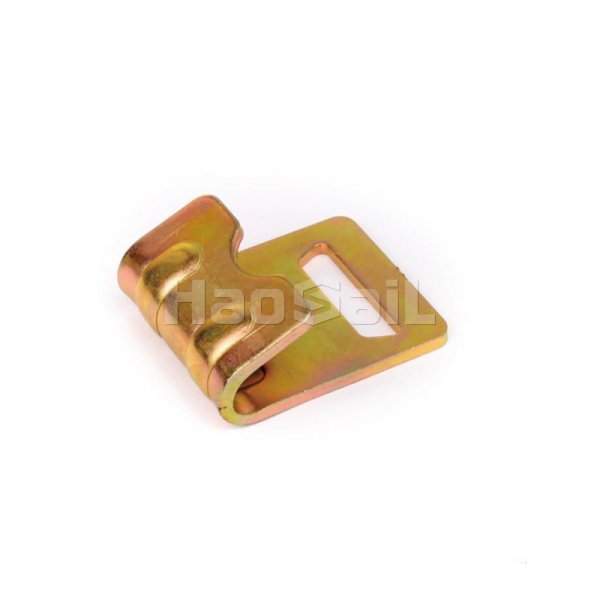

Connection adaptation: Select suitable fittings according to the type of fixing point (such as ring, hole, flat plate, chain), for example, ring fixing points are suitable for S hooks, and flat fixing points are suitable for flat hooks.
Usage scenario: If the goods transported are precision equipment, vehicles and other goods that are easily scratched, plastic-coated or protective cover accessories are preferred; if used in a humid, outdoor environment, galvanized and other anti-rust treatment accessories are required.
Safety locking: For bumpy road conditions or important cargo transportation, accessories with locking functions (such as spring hooks and hooks with safety pins) can be selected to prevent accidental unhooking during transportation.
Regularly check the accessories for deformation, cracks, wear or rust. If the above problems are found, they should be replaced immediately and cannot be used any more.
For accessories with springs or locking devices, their flexibility should be checked to ensure that the locking function is normal. If necessary, a small amount of lubricating oil can be applied to keep them smooth.
After use, clean the dirt and mud on the surface of the accessories in time to avoid rust or jamming caused by accumulation of impurities. When storing, they should be placed in a dry and ventilated place together with the binding belt, away from corrosive substances.
