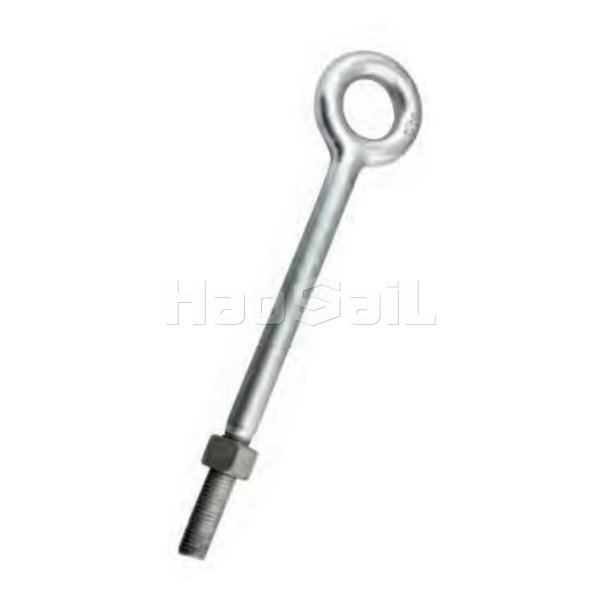

G291 Regular Nut Eye Bolt is a powerful tool for industrial lifting and connection operations. The main body is made of high-quality carbon steel through forging, quenching and tempering to ensure excellent strength and toughness. One end is a standard UNC thread, with a standard hot-dip galvanized heavy-duty hexagonal nut, which is convenient for tight connection with the mounting hole; the lifting ring design on the other end is convenient for connecting various lifting rigging. The specifications span from 1/4 inch to 1 - 1/4 inch, and the length varies from 2 inches to 20 inches, which is suitable for different installation spaces and lifting requirements. The surface of the product is hot-dip galvanized to enhance the rust resistance, suitable for a variety of complex environments such as humid and outdoor.

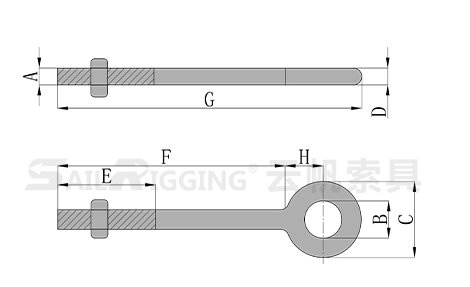

| Stock no. | Size（AxF） （in） | WLL (lbs) | Dimensions（in） | Weight 100pcs （lbs） | |||||||
| A | B | C | D | E | F | G | H | ||||
| HS2040801 | 1/4x1 | 650 | 0.25 | 0.50 | 1.00 | 0.25 | 1.50 | 2.00 | 3.06 | 0.56 | 8.20 |
| HS2040802 | 1/4x4 | 650 | 0.25 | 0.50 | 1.00 | 0.25 | 2.50 | 4.00 | 5.06 | 0.56 | 11.70 |
| HS2040803 | 5/16x2 1/4 | 1200 | 0.31 | 0.62 | 1.25 | 0.31 | 1.50 | 2.25 | 3.56 | 0.69 | 13.30 |
| HS2040804 | 5/16x4 1/4 | 1200 | 0.31 | 0.62 | 1.25 | 0.31 | 2.50 | 4.25 | 5.56 | 0.69 | 25.00 |
| HS2040805 | 3/8x2 1/2 | 1550 | 0.38 | 0.75 | 1.50 | 0.38 | 1.50 | 2.50 | 4.12 | 0.88 | 23.30 |
| HS2040806 | 3/8x4 1/2 | 1550 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 4.50 | 6.12 | 0.88 | 29.50 |
| HS2040807 | 3/8x6 | 1550 | 0.38 | 0.75 | 1.50 | 0.38 | 2.50 | 6.00 | 7.62 | 0.88 | 35.20 |
| HS2040808 | 1/2x3 1/4 | 2600 | 0.50 | 1.00 | 2.00 | 0.50 | 1.50 | 3.25 | 5.38 | 1.12 | 50.30 |
| HS2040809 | 1/2x6 | 2600 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 6.00 | 8.12 | 1.12 | 66.10 |
| HS2040810 | 1/2x8 | 2600 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 8.00 | 10.12 | 1.12 | 82.00 |
| HS2040811 | 1/2x10 | 2600 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 10.00 | 12.12 | 1.12 | 88.00 |
| HS2040812 | 1/2x12 | 2600 | 0.50 | 1.00 | 2.00 | 0.50 | 3.00 | 12.00 | 14.12 | 1.12 | 114.20 |
| HS2040813 | 5/8x4 | 5200 | 0.62 | 1.25 | 2.50 | 0.62 | 2.00 | 4.00 | 6.69 | 1.44 | 103.10 |
| HS2040814 | 5/8x6 | 5200 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 6.00 | 8.69 | 1.44 | 118.20 |
| HS2040815 | 5/8x8 | 5200 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 8.00 | 10.69 | 1.44 | 135.10 |
| HS2040816 | 5/8x10 | 5200 | 0.62 | 1.25 | 2.50 | 0.62 | 3.00 | 10.00 | 12.69 | 1.44 | 153.60 |
| HS2040817 | 5/8x12 | 5200 | 0.62 | 1.25 | 2.50 | 0.62 | 4.00 | 12.00 | 14.69 | 1.44 | 167.10 |
| HS2040818 | 3/4x4 1/2 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 2.00 | 4.50 | 7.69 | 1.69 | 168.60 |
| HS2040819 | 3/4x6 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 6.00 | 9.19 | 1.69 | 184.50 |
| HS2040820 | 3/4x8 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 8.00 | 11.19 | 1.69 | 207.90 |
| HS2040821 | 3/4x10 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 3.00 | 10.00 | 13.19 | 1.69 | 235.00 |
| HS2040822 | 3/4x12 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 4.00 | 12.00 | 15.19 | 1.69 | 257.50 |
| HS2040823 | 3/4x15 | 7200 | 0.75 | 1.50 | 3.00 | 0.75 | 5.00 | 15.00 | 18.19 | 1.69 | 298.00 |
| HS2040824 | 7/8x5 | 10600 | 0.88 | 1.75 | 3.50 | 0.88 | 2.50 | 5.00 | 8.75 | 2.00 | 270.00 |
| HS2040825 | 7/8x8 | 10600 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 8.00 | 11.75 | 2.00 | 308.00 |
| HS2040826 | 7/8x12 | 10600 | 0.88 | 1.75 | 3.50 | 0.88 | 4.00 | 12.00 | 15.75 | 2.00 | 400.00 |
| HS2040827 | 1x6 | 13300 | 1.00 | 2.00 | 4.00 | 1.00 | 3.00 | 6.00 | 10.31 | 2.31 | 421.00 |
| HS2040828 | 1x9 | 13300 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 9.00 | 13.31 | 2.31 | 468.50 |
| HS2040829 | 1x12 | 13300 | 1.00 | 2.00 | 4.00 | 1.00 | 4.00 | 12.00 | 16.31 | 2.31 | 540.00 |
| HS2040830 | 1x18 | 13300 | 1.00 | 2.00 | 4.00 | 1.00 | 7.00 | 18.00 | 22.31 | 2.31 | 650.00 |
| HS2040831 | 1 1/4x8 | 21000 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 8.00 | 13.38 | 2.88 | 750.00 |
| HS2040832 | 1 1/4x12 | 21000 | 1.25 | 2.50 | 5.00 | 1.25 | 4.00 | 12.00 | 17.38 | 2.88 | 900.00 |
| HS2040833 | 1 1/4x20 | 21000 | 1.25 | 2.50 | 5.00 | 1.25 | 6.00 | 20.00 | 25.38 | 2.88 | 1210.00 |
