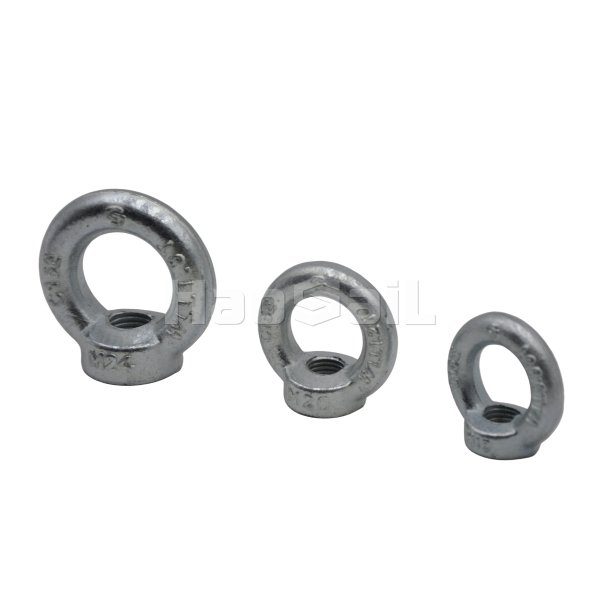

DIN582 Eye Nut is an important mechanical connector manufactured in accordance with the German industrial standard DIN 582, mainly used in lifting and tension connection scenarios. Its main body is generally forged from high-quality carbon steel (such as C15, 20# steel), with high strength, which can meet the needs of conventional lifting; in environments where corrosion resistance is required, stainless steel (such as 304, 316) is often used. One end of the nut is a standard thread, which can be tightly screwed with the matching bolt, and the other end is designed as a round or oval eye, which is convenient for connecting chains, ropes and other lifting tools. The thread specifications range from M6 to M48, which can adapt to bolts of different sizes and installation spaces. The surface is mostly galvanized to enhance rust resistance. Some high-end or special-purpose products will use more advanced anti-corrosion treatment processes such as Dacromet.

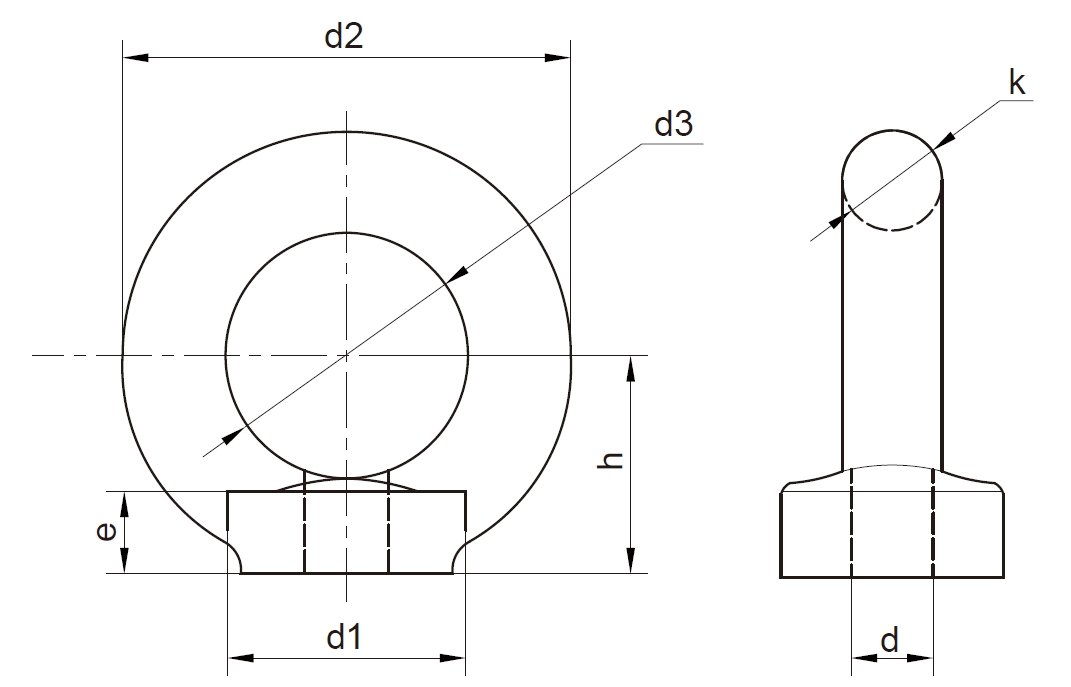

| Stock no. | Size(d) (mm) | WLL (t) | Weight （kg） | Dimensions（mm） | |||||
| d1 | d2 | d3 | e | h | k | ||||
| HS2040201 | M6 | 0.14 | 0.05 | 20.00 | 36.00 | 20.00 | 8.50 | 18.00 | 8.00 |
| HS2040202 | M8 | 0.14 | 0.05 | 20.00 | 36.00 | 20.00 | 8.50 | 18.00 | 8.00 |
| HS2040203 | M10 | 0.23 | 0.10 | 25.00 | 45.00 | 25.00 | 10.00 | 22.00 | 10.00 |
| HS2040204 | M12 | 0.34 | 0.16 | 30.00 | 54.00 | 30.00 | 11.00 | 26.00 | 12.00 |
| HS2040205 | M16 | 0.70 | 0.24 | 35.00 | 63.00 | 35.00 | 13.00 | 31.00 | 14.00 |
| HS2040206 | M20 | 1.20 | 0.35 | 40.00 | 72.00 | 40.00 | 16.00 | 35.00 | 16.00 |
| HS2040207 | M22 | 1.50 | 0.32 | 45.00 | 81.00 | 45.00 | 18.00 | 40.00 | 18.00 |
| HS2040208 | M24 | 1.80 | 0.75 | 50.00 | 90.00 | 50.00 | 20.00 | 45.00 | 20.00 |
| HS2040209 | M27 | 2.50 | 0.73 | 50.00 | 90.00 | 50.00 | 20.00 | 45.00 | 20.00 |
| HS2040210 | M30 | 3.60 | 1.40 | 65.00 | 108.00 | 60.00 | 25.00 | 55.00 | 24.00 |
| HS2040211 | M33 | 4.30 | 1.30 | 65.00 | 108.00 | 60.00 | 25.00 | 55.00 | 24.00 |
| HS2040212 | M36 | 5.10 | 2.20 | 75.00 | 126.00 | 70.00 | 30.00 | 64.00 | 28.00 |
| HS2040213 | M42 | 7.00 | 3.10 | 85.00 | 144.00 | 80.00 | 35.00 | 74.00 | 32.00 |
| HS2040214 | M48 | 8.60 | 5.01 | 100.00 | 166.00 | 90.00 | 40.00 | 84.00 | 38.00 |
| HS2040215 | M56 | 11.50 | 6.69 | 110.00 | 184.00 | 100.00 | 45.00 | 94.00 | 42.00 |
| HS2040216 | M64 | 16.00 | 9.30 | 120.00 | 206.00 | 110.00 | 50.00 | 104.00 | 48.00 |
