JIS1169 Eye Nut is produced in accordance with the Japanese Industrial Standard JIS B 1169 and plays a key role in lifting and connection operations. It consists of a hexagonal nut body with standard threads and a ring-shaped lifting lug on one side. The overall structure is compact and practical. In terms of materials, common ones are carbon steel (such as C15), which has good strength after forging and is suitable for conventional working environments; for scenes with anti-corrosion requirements, stainless steel (such as 304, 316) is used. The thread specifications range from M6 to M100, which are suitable for bolts of different sizes and installation spaces. The surface is mostly galvanized to enhance rust resistance. Some special products will be processed using Dacromet and other processes.

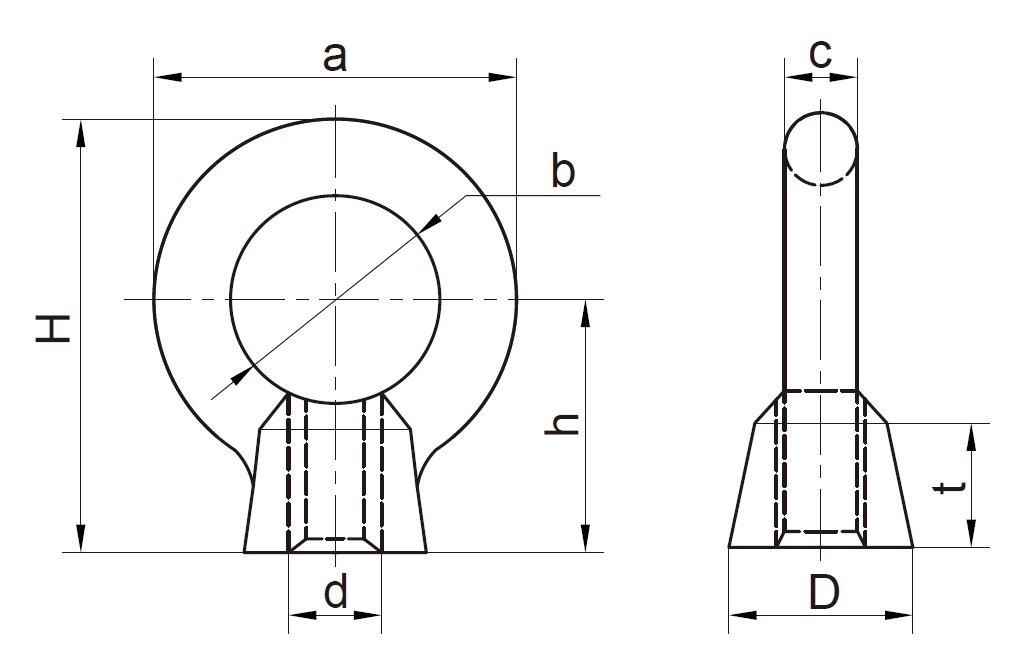

| Stock no. | Size (mm) | WLL (kn) | Dimensions（mm） | Weight (kg) | |||||||
| a | b | c | d | t | h | H | D | ||||
| HS02040401 | M6 | 0.59 | 25.00 | 14.00 | 6.30 | 6.30 | 11.00 | 20.00 | 32.50 | 13.00 | 0.016 |
| HS02040402 | M8 | 0.80 | 32.60 | 20.00 | 6.30 | 8.50 | 12.00 | 23.00 | 39.30 | 16.00 | 0.026 |
| HS02040403 | M10 | 1.50 | 41.00 | 25.00 | 8.00 | 10.60 | 15.00 | 28.00 | 48.50 | 20.00 | 0.064 |
| HS02040404 | M12 | 2.20 | 50.00 | 30.00 | 10.00 | 12.50 | 19.00 | 36.00 | 61.00 | 25.00 | 0.125 |
| HS02040405 | M16 | 4.50 | 60.00 | 35.00 | 12.50 | 17.00 | 23.00 | 42.00 | 72.00 | 30.00 | 0.223 |
| HS02040406 | M20 | 6.30 | 72.00 | 40.00 | 16.00 | 21.20 | 28.00 | 50.00 | 86.00 | 35.00 | 0.390 |
| HS02040407 | M24 | 9.50 | 90.00 | 50.00 | 20.00 | 25.00 | 38.00 | 66.00 | 111.00 | 45.00 | 0.850 |
| HS02040408 | M30 | 15.00 | 110.00 | 60.00 | 25.00 | 31.50 | 46.00 | 80.00 | 135.00 | 60.00 | 1.750 |
| HS02040409 | M36 | 23.00 | 133.00 | 70.00 | 31.50 | 37.50 | 55.00 | 95.00 | 161.50 | 70.00 | 3.000 |
| HS02040410 | M42 | 34.00 | 151.00 | 80.00 | 35.50 | 45.00 | 64.00 | 109.00 | 184.50 | 80.00 | 4.650 |
| HS02040411 | M48 | 45.00 | 170.00 | 90.00 | 40.00 | 50.00 | 73.00 | 123.00 | 208.00 | 90.00 | 6.600 |
| HS02040412 | M64 | 90.00 | 210.00 | 110.00 | 50.00 | 67.00 | 90.00 | 151.00 | 256.00 | 110.00 | 13.800 |
