Qingdao Haosail Machinery Co., Ltd.

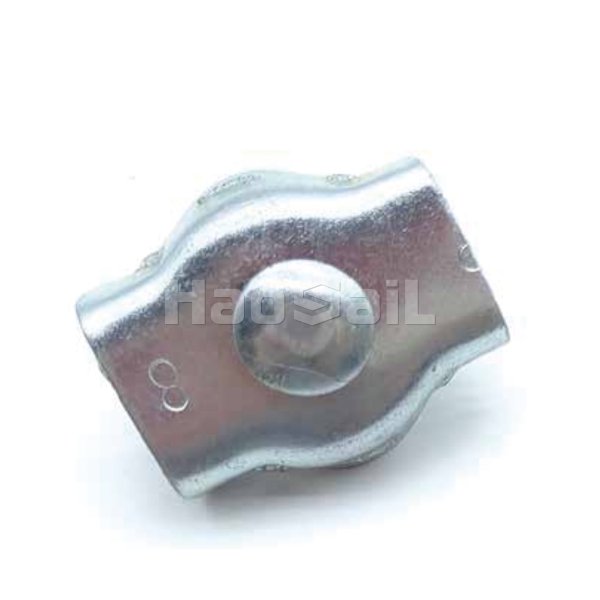

Simplex Wire Rope Clip Feature

• Easy installation: Just wrap the wire rope around to form the required rope loop, place the pressure plate on the wire rope, pass the bolt and tighten the nut to complete the installation. The operation is simple and does not require professional tools and complex skills.

• Diverse materials: Low-carbon steel material has a low cost and can be used normally in general environments after galvanizing; stainless steel material is suitable for humid, corrosive and harsh environments, with excellent corrosion resistance and strong durability.

• Rich specifications: A variety of sizes and specifications can accurately match wire ropes of different thicknesses to meet diverse application needs.

• Specific applicability: Especially suitable for 7×19 structure wire ropes, because of its good flexibility, it can be well adapted to the clamp. However, it is not suitable for 1×19 structure and 7×7 structure wire ropes with a diameter of 4mm or more, because they are too hard and difficult to adapt.

Simplex Wire Rope Clip Typical applications

• Construction assistance: At the construction site, it can be used to temporarily fix some non-load-bearing wire ropes, such as fixing the wire ropes at the edge when building a simple protective net, to provide basic protection for construction.

• Agricultural facility construction: When building bird-proof nets in orchards, or fixing the wire ropes of windproof and insect-proof nets around agricultural greenhouses, simplex wire rope clip can play a connecting and fixing role to ensure the normal use of agricultural facilities.

• Daily object fixing: In daily life, such as fixing wire ropes for drying clothes, or simple rope traction and fixing scenes in the courtyard, it can be used to achieve convenient connection.

• Simple ship lashing: On ships, it can be used for temporary lashing and fixing of some light items, such as fixing small tools and equipment in small cabins, but it cannot be used for load-bearing connections in key parts of ships.
