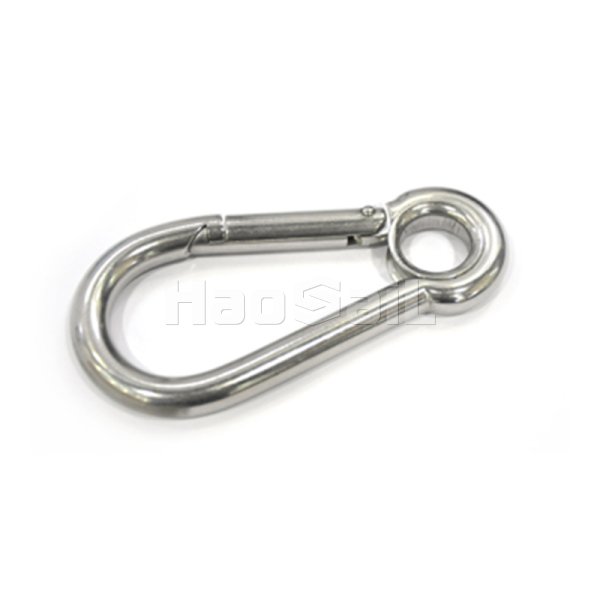

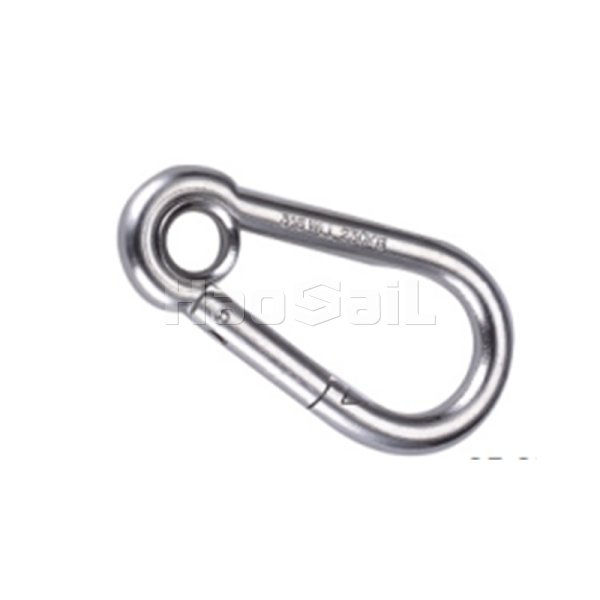

The STAINLESS STEEL SNAP HOOK WITH EYELET is a versatile and secure connection device that integrates the convenience of a snap hook with the extended connection capabilities of an eyelet. The reinforced eyelet design on the top allows for direct connection of ropes, wire ropes or safety ropes, while the automatic locking spring gate on the bottom ensures quick and secure equipment connection. It is suitable for scenes that require reliable connection, such as aerial work, industrial lifting, and marine applications. The precision-machined threaded eyelet is lined with a wear-resistant bronze bushing to effectively prevent metal-to-metal wear and extend service life.
Stock no. | Size mm | A mm | B mm | C mm | D mm | L mm | SWL lbs | Net weight 100pcs kg |
HS4060301 | 4x40 | 20 | 5 | 6 | 4 | 40 | 100 | 0.85 |
HS4060302 | 5x50 | 25 | 5 | 7 | 5 | 50 | 160 | 1.8 |
HS4060303 | 6x60 | 30 | 5 | 8 | 6 | 60 | 260 | 2.6 |
HS4060304 | 7x70 | 35 | 7 | 10 | 7 | 70 | 335 | 5 |
HS4060305 | 8x80 | 40 | 10 | 11 | 8 | 80 | 400 | 6.2 |
HS4060306 | 9x90 | 45 | 10 | 12 | 9 | 90 | 500 | 9.8 |
HS4060307 | 10x100 | 50 | 13 | 12 | 10 | 100 | 650 | 13.4 |
HS4060308 | 11x120 | 57 | 13 | 19 | 11 | 120 | 700 | 19.1 |
HS4060309 | 12x140 | 67 | 15 | 20 | 12 | 140 | 800 | 27.5 |
HS4060310 | 13x160 | 74 | 17 | 26 | 13 | 160 | 1300 | 35.8 |
Anti-corrosion treatment:
Electropolished surface
Marine grade passivation layer
Operation optimization:
Knurled eye ring for anti-slip pattern
One-hand operable spring door
Safety certification:
100% load tested
Magnetic particle inspection
Aerial work: Safety rope terminal connector
Marine equipment: Deck safety rope quick connection point
Industrial lifting: Small equipment lifting auxiliary connection
Stage construction: Lighting and sound insurance connection
Rescue system: Emergency descent device conversion interface
