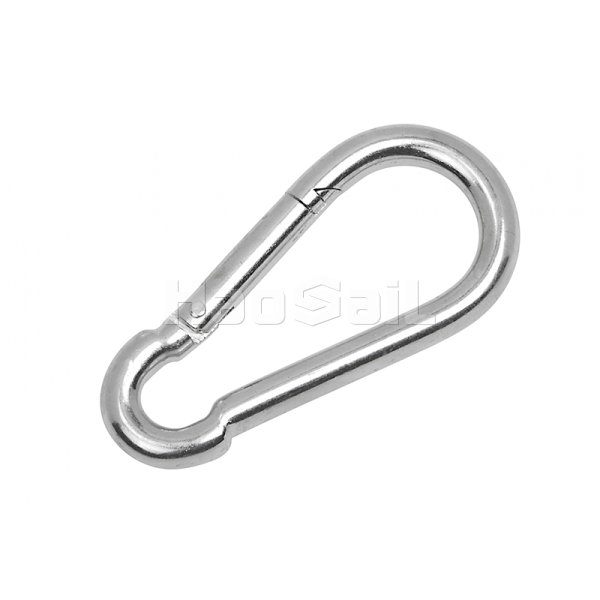

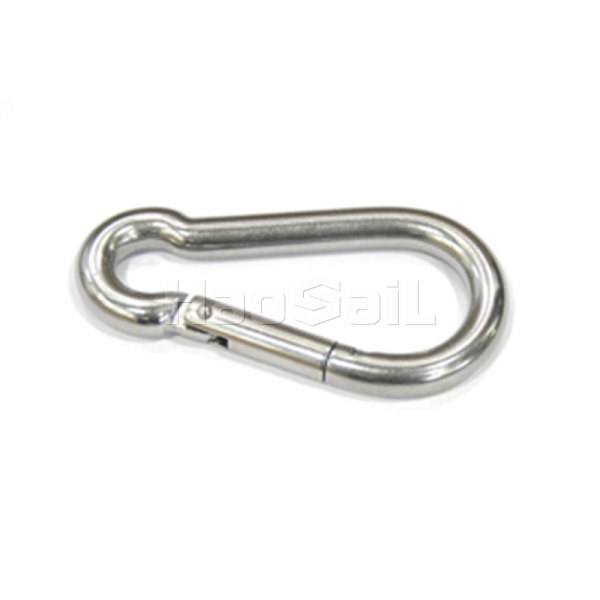

STAINLESS STEEL DIN5299C SNAP HOOK is a high-strength spring hook that complies with the German industrial standard DIN5299C and is precision-casted from 316 stainless steel. Designed for harsh industrial environments, its two-way locking mechanism (main spring door + secondary safety lock) provides double anti-slip protection and is suitable for key safety areas such as aerial work, stage machinery, and ship loading and unloading. Certified by EN362:2004 and DIN EN 12275, it maintains stable performance in the temperature range of -40°C to +200°C, and its special surface passivation treatment makes it still have excellent corrosion resistance in a chemical environment of PH1-14.

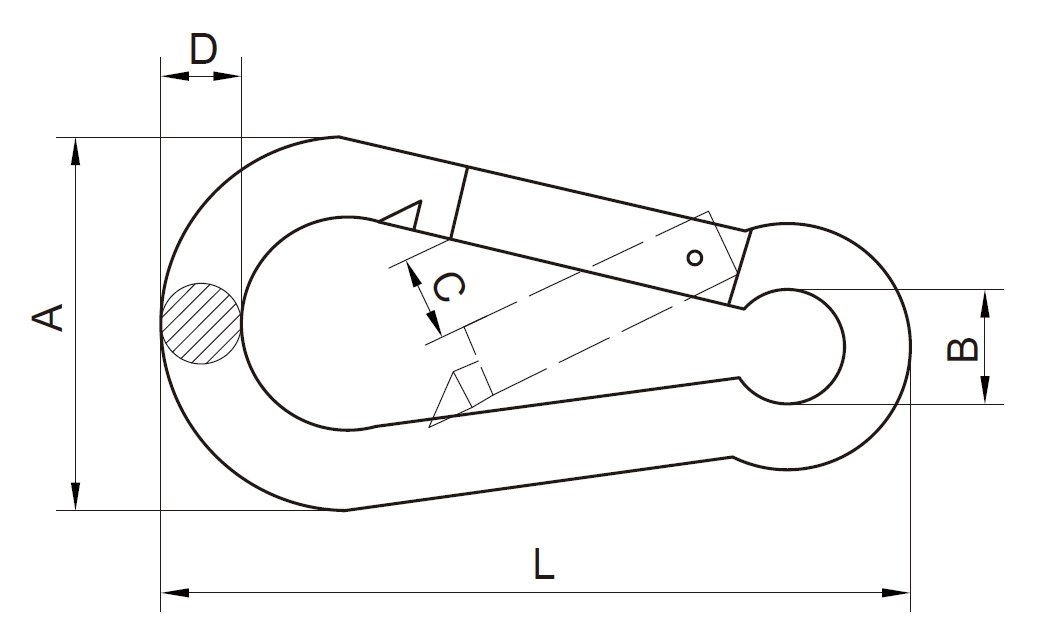

| Stock no. | Size mm | A mm | B mm | C mm | D mm | L mm | SWL lbs | Net weight 100pcs kg |
| HS4060101 | 4x40 | 20 | 6 | 6 | 4 | 40 | 100 | 0.8 |
| HS4060102 | 5x50 | 25 | 8 | 7 | 5 | 50 | 160 | 1.6 |
| HS4060103 | 6x60 | 30 | 9 | 8 | 6 | 60 | 260 | 2.5 |
| HS4060104 | 7x70 | 35 | 10 | 10 | 7 | 70 | 335 | 4.3 |
| HS4060105 | 8x80 | 40 | 12 | 11 | 8 | 80 | 400 | 6.1 |
| HS4060106 | 9x90 | 45 | 15 | 12 | 9 | 90 | 500 | 8.8 |
| HS4060107 | 10x100 | 50 | 17 | 12 | 10 | 100 | 650 | 12.5 |
| HS4060108 | 11x120 | 57 | 18 | 19 | 11 | 120 | 700 | 18.0 |
| HS4060109 | 12x140 | 67 | 20 | 20 | 12 | 140 | 800 | 25.0 |
| HS4060110 | 13x160 | 74 | 22 | 26 | 13 | 160 | 1300 | 35.7 |
| HS4060111 | 14x180 | 86 | 22 | 29 | 14 | 180 | 1600 | 45.5 |
| HS4060112 | 15x200 | 90 | 26 | 39 | 15 | 200 | 1800 | 55.6 |
