Introduction

When sourcing DIN 741 wire rope clips, buyers may notice that quotations from different suppliers can vary even when the products share the same size designation.

For example, two M16 DIN 741 wire rope clips may appear similar in shape and function, yet their prices can differ noticeably. One of the main reasons behind this difference is the variation in material usage.

To provide a clearer understanding of this situation, Qingdao Haosail conducted a comparison between two DIN 741 wire rope clips of the same specification: a Standard Grade version and a Heavy-Weight Grade version. The comparison focuses on measurable factors such as weight and component dimensions rather than performance evaluation.

Comparison Basis

The comparison was conducted on two commonly used sizes:

· M16 DIN 741 Wire Rope Clip

· M26 DIN 741 Wire Rope Clip

Each product consists of three primary components:

· Cast body

· U-bolt

· Hex nuts

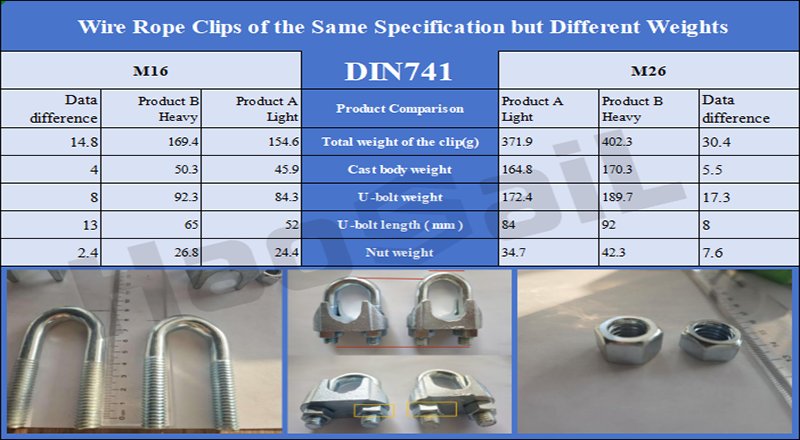

The weight of each component was measured individually and then compared.

The Heavy-Weight version contains 14.8 g more material than the Standard version, representing approximately 9.6% additional total weight.

For the M26 size, the Heavy-Weight version contains 30.4 g more material, representing approximately 8.2% additional total weight.

Where Does the Additional Weight Come From?

The difference is not concentrated in a single component. Additional material can be found throughout the assembly.

U-Bolt Dimensions

The U-bolt used in the Heavy-Weight version is longer in both tested sizes, resulting in a higher component weight.

Nut Dimensions

The nuts supplied with the Heavy-Weight version are also larger and heavier. This contributes additional weight to the overall assembly.

Overall Construction

When the two versions are placed side by side, the Heavy-Weight model contains more metal across multiple components, which is reflected in its higher total weight.

How Weight Influences Product Cost

The manufacturing cost of a wire rope clip is influenced by several factors, including raw material consumption, machining, galvanizing, packaging, and labor.

Among these factors, material consumption is directly related to product weight.

In the tested samples:

· The M16 Heavy-Weight version uses approximately 9.6% more material.

· The M26 Heavy-Weight version uses approximately 8.2% more material.

As the amount of material increases, the corresponding production cost also increases. This is one of the reasons why products of the same DIN 741 specification may be offered at different price levels in the market.

Understanding Quotations Beyond Size

DIN 741 specifies dimensional requirements, but products available in the market may differ in actual weight and material content.

For this reason, when comparing quotations, it can be helpful to consider:

· Total product weight

· U-bolt dimensions

· Nut dimensions

· Component weight distribution

These measurable factors provide a more complete understanding of why products carrying the same DIN 741 designation may have different prices.

Conclusion

Two DIN 741 wire rope clips with the same nominal size may not contain the same amount of material.

The comparison presented above shows that differences in component dimensions and overall weight can lead to variations in raw material consumption and manufacturing cost. These measurable factors are an important reason why products with the same DIN 741 designation may be offered at different market prices.

Understanding these differences allows buyers to evaluate quotations based not only on specification, but also on the actual construction of the product.

About Qingdao Haosail

Qingdao Haosail Machinery Co., Ltd. supplies a wide range of rigging and lifting hardware, including wire rope clips, shackles, turnbuckles, hooks, chain fittings, master links, and related accessories.

We believe that transparent product information helps customers make informed purchasing decisions. By providing detailed weight and dimensional data, we aim to give buyers a clearer understanding of the factors that contribute to product pricing.
