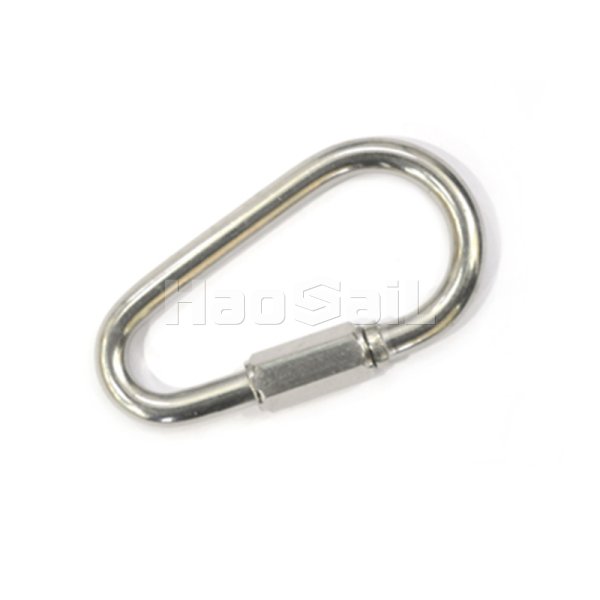

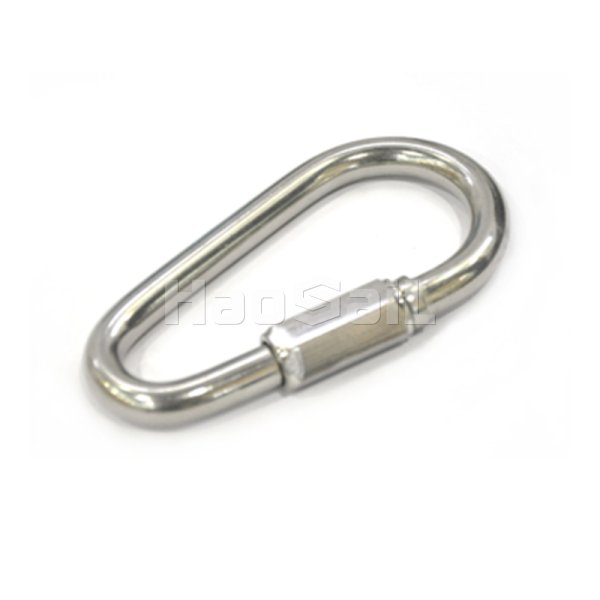

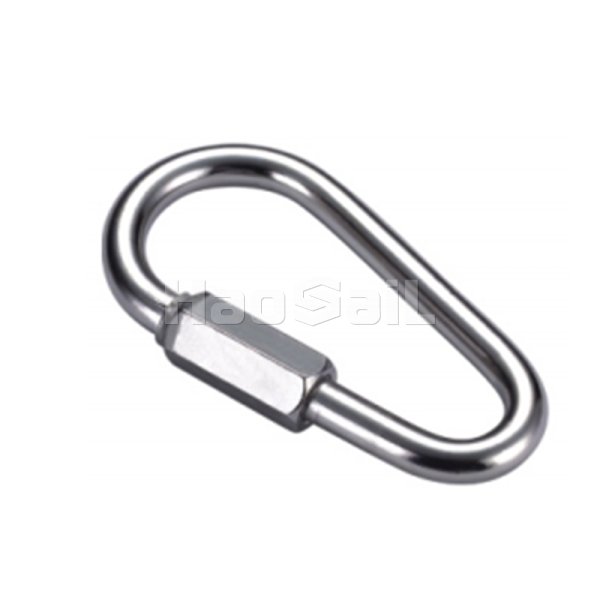

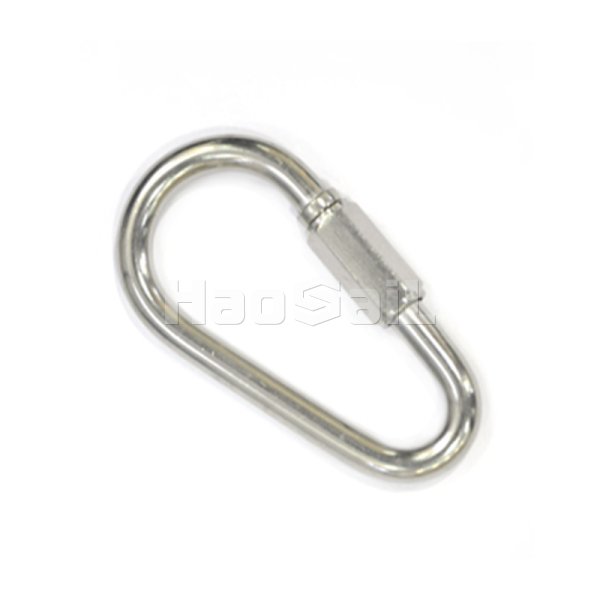

STAINLESS STEEL PEAR SHAPED QUICK LINK is a special-shaped quick release ring designed for high-security connections, forged from 304/316 stainless steel. Its unique pear-shaped structure provides more internal space for connecting thick ropes, multi-strand cables or large hooks, while maintaining the same high strength and easy operation characteristics as traditional quick release rings. It is widely used in scenes that require reliable connection and frequent disassembly, such as sailing rigging, stage hanging, mountaineering equipment and industrial lifting. The 316 stainless steel version is particularly suitable for harsh applications with long-term exposure to seawater or chemical environments.

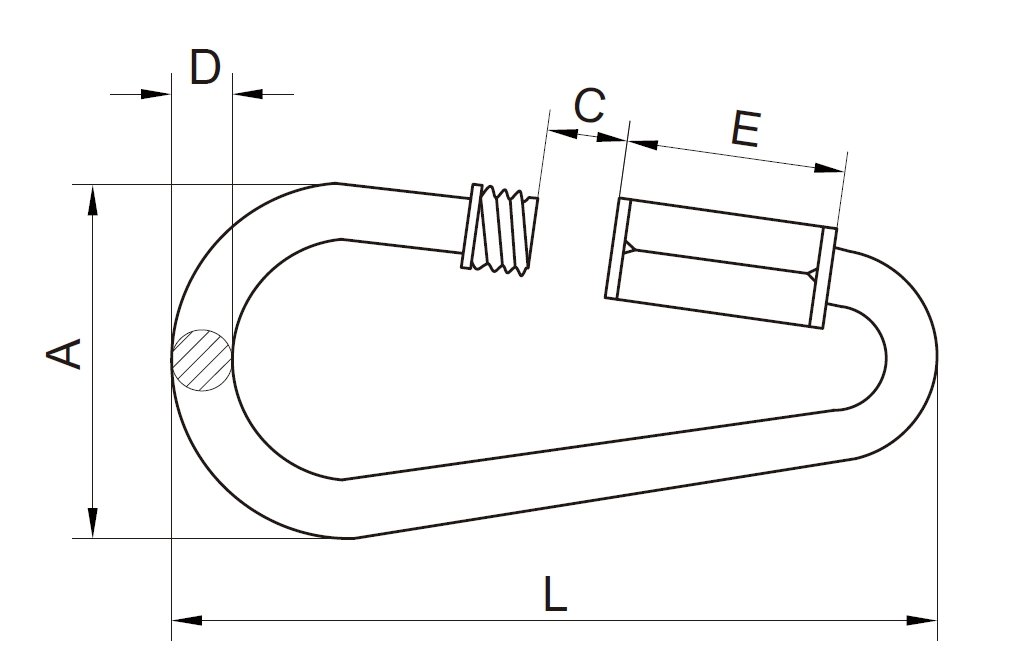

| Stock no. | Size mm | A mm | C mm | D mm | L mm | E mm | SWL lbs | Net weight 100pcs kg |
| HS4070201 | 6 | 42.8 | 14 | 6 | 80 | 25 | 550 | 5.2 |
| HS4070202 | 8 | 50.8 | 17 | 8 | 100 | 31.5 | 1210 | 15.0 |
| HS4070203 | 10 | 63.5 | 20.5 | 10 | 117 | 36 | 1320 | 20.0 |
| HS4070204 | 12 | 76 | 23 | 12 | 140 | 43 | 2425 | 32.0 |
