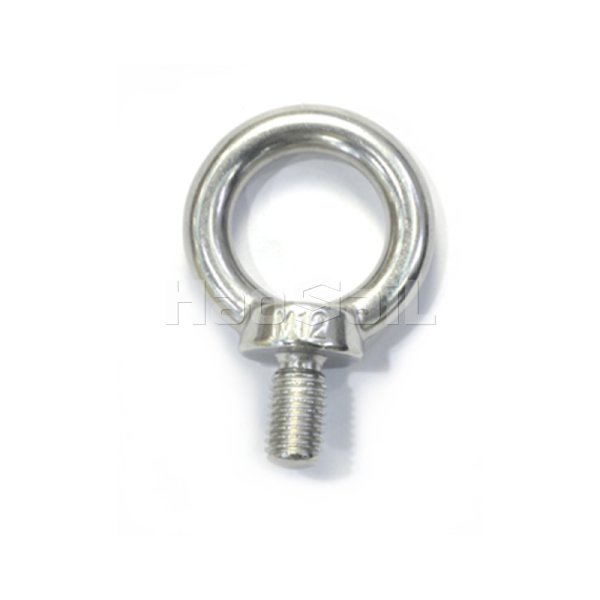

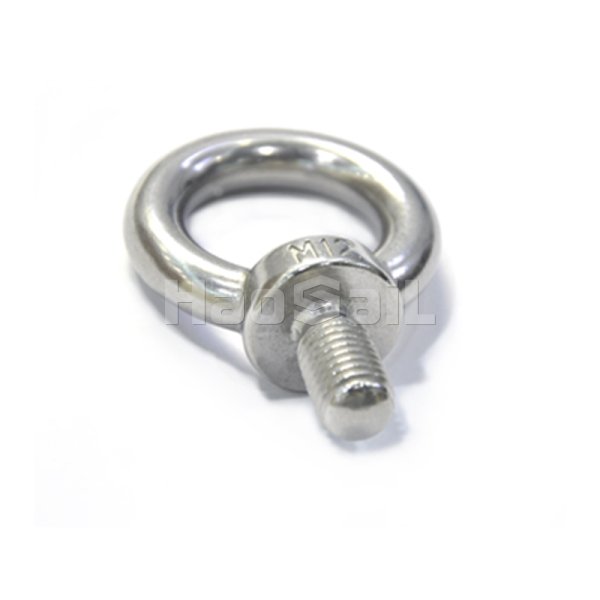

JIS 1168 Stainless Steel Eye Bolt is a high-strength stainless steel eye bolt that complies with the Japanese Industrial Standard JIS B 1168. It is precision forged with SUS304 or SUS316 and is designed for heavy-duty lifting and fixing applications. It is suitable for shipbuilding, machinery and equipment, building structures, industrial manufacturing and other fields, especially for harsh environments that require corrosion resistance and high reliability.

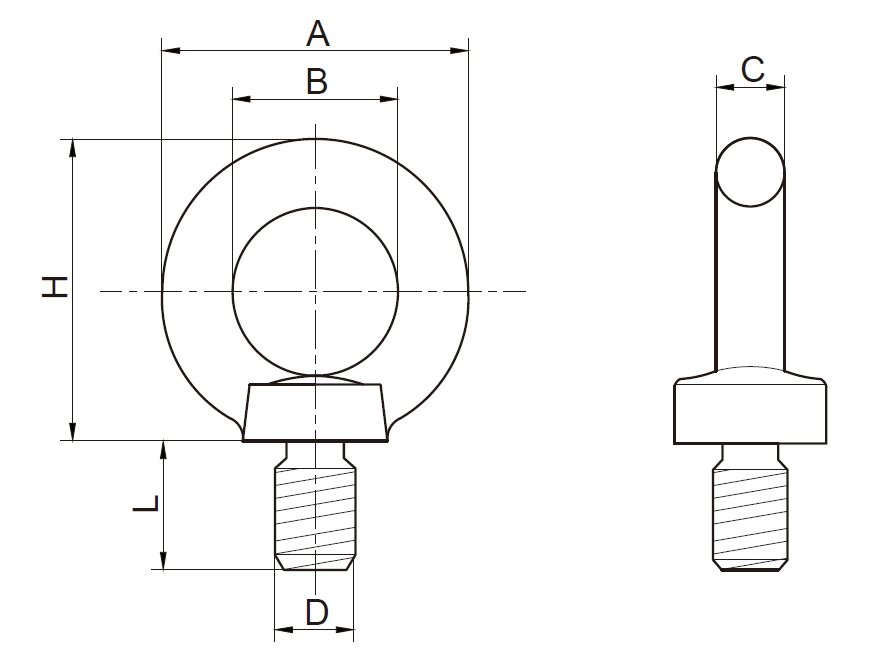

| Stock no. | SIZE (mm) | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) |
| HS4050301 | 6 | 25 | 15 | 4.5 | 6 | 28 | 13 | 25 | 15 | 4.5 | 6 | 28 | 13 |
| HS4050302 | 8 | 31.5 | 20 | 6 | 8 | 34 | 14.5 | 31.5 | 20 | 6 | 8 | 34 | 14.5 |
| HS4050303 | 10 | 39.5 | 25 | 7 | 10 | 41 | 18 | 39.5 | 25 | 7 | 10 | 41 | 18 |
| HS4050304 | 12 | 49 | 30 | 9 | 12 | 51 | 22 | 49 | 30 | 9 | 12 | 51 | 22 |
| HS4050305 | 16 | 58 | 34 | 12 | 16 | 59 | 26 | 58 | 34 | 12 | 16 | 59 | 26 |
| HS4050306 | 20 | 70 | 39 | 16 | 20 | 71 | 30 | 70 | 39 | 16 | 20 | 71 | 30 |
| HS4050307 | 22 | 79 | 44.5 | 17.5 | 22 | 81 | 34 | 79 | 44.5 | 17.5 | 22 | 81 | 34 |
