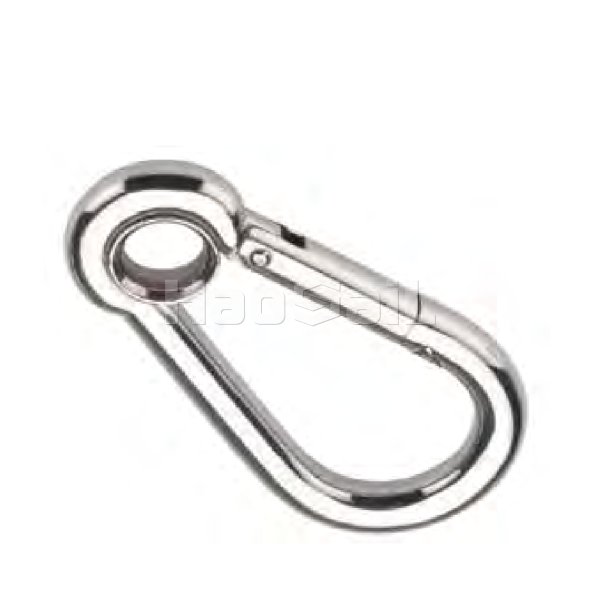

Snap hook with eyelet is a very practical connection accessory, which consists of a buckle body, a spring and a unique eyelet part. The main body material is mostly carbon steel or stainless steel. Carbon steel is economical and has good strength, while stainless steel has good corrosion resistance and is suitable for harsh environments such as humidity. Its working principle is to rely on the elasticity of the spring to achieve rapid opening and closing of the buckle body to complete the connection and separation of objects. The eyelet design can prevent the connected ropes from sliding freely and enhance the stability of the connection. The product specifications are rich, ranging from small to large sizes, which can meet the needs of different scenarios from fine hand-made to large industrial assembly, and play an important role in connection in various fields.

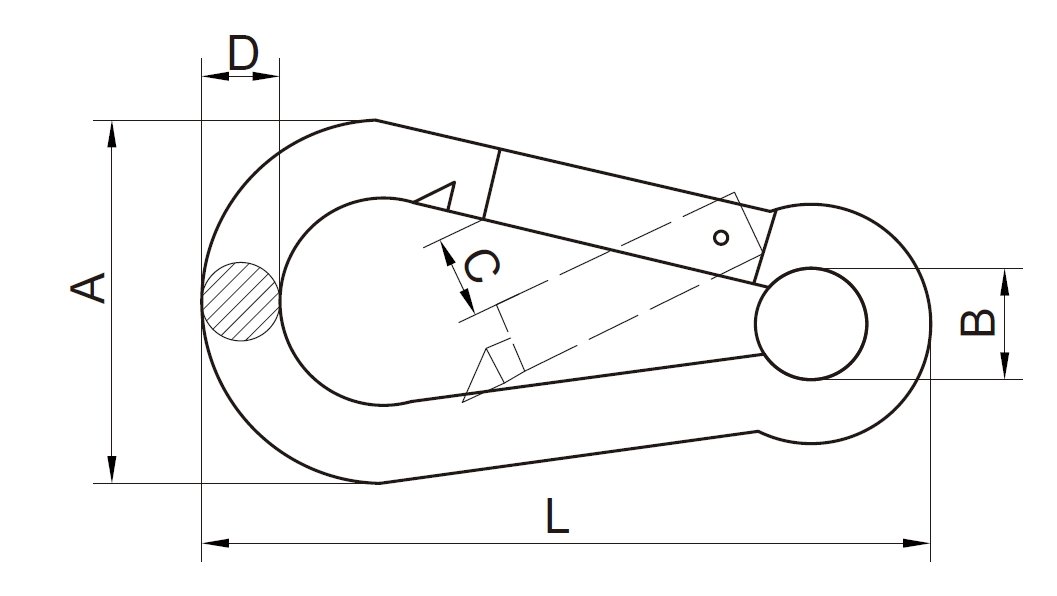

Stock no. | Size mm | SWL lbs | Dimensions ( mm ) | Net weight kg/100pcs | ||||
A | B | C | D | L | ||||
HS2070301 | 4×40 | 100 | 20 | 5 | 6 | 4 | 40 | 0.85 |
HS2070302 | 5×50 | 160 | 25 | 5 | 7 | 5 | 50 | 1.8 |
HS2070303 | 6×60 | 260 | 30 | 5 | 8 | 6 | 60 | 2.6 |
HS2070304 | 7×70 | 335 | 35 | 7 | 10 | 7 | 70 | 5.0 |
HS2070305 | 8×80 | 400 | 40 | 10 | 11 | 8 | 80 | 6.2 |
HS2070306 | 9x90 | 500 | 45 | 10 | 12 | 9 | 90 | 9.8 |
HS2070307 | 10×100 | 650 | 50 | 13 | 12 | 10 | 100 | 13.4 |
HS2070308 | 11×120 | 700 | 57 | 13 | 19 | 11 | 120 | 19.1 |
HS2070309 | 12×140 | 800 | 67 | 15 | 20 | 12 | 140 | 27.5 |
HS2070310 | 13×160 | 1300 | 74 | 17 | 26 | 13 | 160 | 35.8 |
Stable connection: The spring-driven buckle mechanism, with holes to prevent rope displacement, greatly reduces the risk of accidental loosening, and can maintain a tight connection even when subjected to vibration and tension, ensuring safe use.
Various materials: Carbon steel is durable and low-cost in normal environments; stainless steel (such as 304, 316) can withstand strong corrosive environments such as humidity, seaside, and chemical industries, ensuring long-term stable use without rust or deformation.
Wide adaptability: A variety of specifications and sizes can perfectly match various thick and thin ropes, chains, etc., whether it is a light daily necessities connection or a heavy industrial and construction operation connection, it can easily cope with it.
Easy operation: Easy installation and disassembly, just open or close the buckle body, no special tools and complex technology are required, improving work and use efficiency.
Snap hook with eyelet is widely used in:
Outdoor sports: connect safety ropes and safety belts when climbing and mountaineering, and the eyelets ensure the rope positioning to ensure the safety of climbers; fix the bicycle saddle bag and frame during riding to prevent items from falling during transportation.
Architecture and industrial scenes: connect scaffolding parts, cargo lifting ropes and hooks in construction to ensure construction safety; connect maintenance tools and safety ropes in factory equipment maintenance to protect maintenance personnel.
Logistics and transportation links: cargo bundling and fixing, such as truck transportation using spring buckles to connect bundling belts and truck railings, and eyelets to assist in fixing to prevent cargo from shifting.
Daily necessities: pet traction ropes connect collars and traction belts to facilitate owners to control pets; clothes hangers connect clotheslines and clothes hangers for easy use.
Q1: How to choose the right specification?
Choose according to the maximum load of the actual operation. For example, if you are lifting a 10-ton load, you need to choose a shackle specification with a working load limit greater than 10 tons. At the same time, refer to the dimensions in the product parameters to ensure that it is compatible with the connected ropes, chains, etc. .
Q3: What is the operating temperature range?
The shackle is certified for use in an environment of - 40°C (-40°F) to 204°C (400°F). Exceeding this temperature range may affect the material performance and connection safety .
Q3: What precautions are there for installation and removal?
During installation, be sure to tighten the threaded pin in place to prevent loosening; during removal, avoid violent operation to damage the thread. Before and during use, regularly check for thread wear and cracks on the body.
Q3: Can relevant certifications be provided?
Some manufacturers can provide certification certificates for specified standards such as ABS, DNV, Lloyds, etc., which need to be requested when placing an order, and may incur additional costs .
