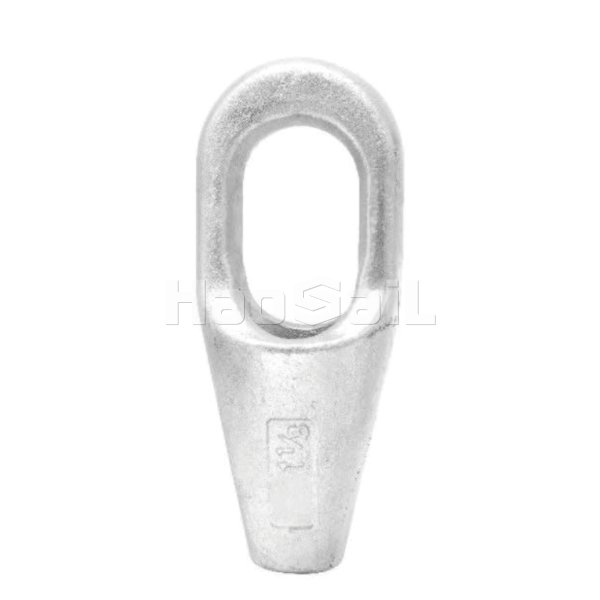

Grooved Closed Spelter Sockets SM - 417 is a professional wire rope connection accessory. The specifications of 1-1/2 inches and below are made of forged alloy steel, and those of 1-5/8 inches to 4 inches are cast alloy steel. It is formed by forging or casting process, and the surface treatment includes natural color, electro-galvanized, hot-dip galvanized, etc. Its groove design is unique. When in use, the end of the wire rope is placed in it, and the filling material such as zinc alloy is poured in. After cooling and solidification, a firm connection is achieved. The product specifications are rich, and it can adapt to structures such as 67, 619 or 6*37, IPS, XIP (EIP) and other types of wire ropes. It is widely used in fields with strict requirements on connection strength.

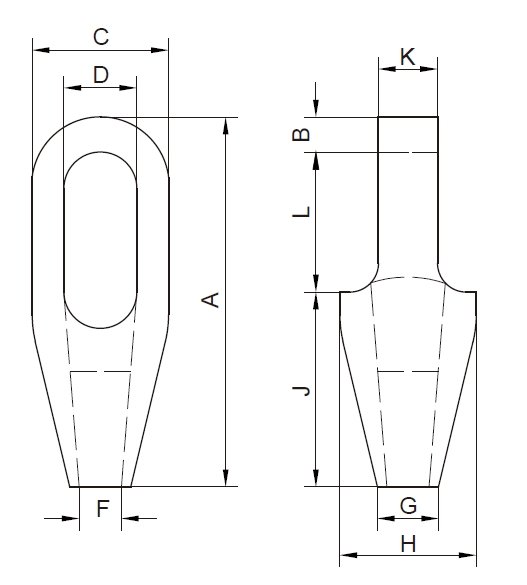

| Stock no. | Rope size (in) | Dimensions(in) | Weight lbs/pcs | |||||||||
| A | B | C | D | F | G | H | J | K | L | |||
| HS2061401 | 1/4 | 4.5 | 0.5 | 1.5 | 0.88 | 0.38 | 0.69 | 1.56 | 2.25 | 0.5 | 1.75 | 0.5 |
| HS2061402 | 5/16-3/8 | 4.88 | 0.62 | 1.69 | 0.97 | 0.5 | 0.81 | 1.69 | 2.25 | 0.69 | 2 | 0.75 |
| HS2061403 | 7/16-1/2 | 5.44 | 0.69 | 2 | 1.16 | 0.56 | 0.94 | 1.88 | 2.5 | 0.88 | 2.25 | 1.5 |
| HS2061404 | 9/16-5/8 | 6.31 | 0.81 | 2.63 | 1.41 | 0.69 | 1.12 | 2.38 | 3.0o | 1 | 2.5 | 2.5 |
| HS2061405 | 3/4 | 7.56 | 1.06 | 3 | 1.66 | 0.81 | 1.25 | 2.75 | 3.56 | 1.25 | 3 | 4.25 |
| HS2061406 | 7/8 | 8.75 | 1.25 | 3.63 | 1.88 | 0.94 | 1.5 | 3.25 | 4 | 1.5 | 3.5 | 7.25 |
| HS2061407 | 1 | 9.88 | 1.38 | 4.13 | 2.3 | 1.13 | 1.75 | 3.75 | 4.44 | 1.75 | 4 | 10.5 |
| HS2061408 | 11/8 | 11 | 1.5 | 4.5 | 2.56 | 1.25 | 2 | 4.13 | 5 | 2 | 4.5 | 14.25 |
| HS2061409 | 11/4-13/8 | 12.12 | 1.63 | 5.3 | 2.81 | 1.5 | 2.25 | 4.75 | 5.5 | 2.25 | 5 | 19.75 |
| HS2061410 | 11/2 | 13.94 | 1.94 | 5.33 | 3.19 | 1.63 | 2.75 | 5.25 | 6 | 2.5 | 6 | 29.2 |
| HS2061411 | 15/8 | 15.13 | 2.13 | 5.75 | 3.25 | 1.75 | 3 | 5.5 | 6.5 | 2.75 | 6.5 | 36 |
| HS2061412 | 13/4-17/8 | 17.25 | 2.19 | 6.75 | 3.75 | 2 | 3.13 | 6.38 | 7.5 | 3 | 7.56 | 57.25 |
| HS2061413 | 2-21/8 | 19.5 | 2.44 | 7.63 | 4.38 | 2.25 | 3.75 | 7.38 | 8.5 | 3.25 | 8.56 | 79 |
| HS2061414 | 21/4-23/8 | 21.31 | 2.63 | 8.5 | 5 | 2.5 | 4 | 8.25 | 9.0o | 3.63 | 9.5 | 105 |
| HS2061415 | 21/2-25/8 | 23.5 | 3.12 | 9.5 | 5.5 | 2.88 | 4.5 | 9.25 | 9.75 | 4 | 10.62 | 140 |
| HS2061416 | 23/4-27/8 | 25.38 | 3.12 | 10.75 | 6.25 | 3.12 | 4.88 | 10.19 | 11 | 4.88 | 11.25 | 220 |
| HS2061417 | 3-31/8 | 27 | 3.25 | 11.5 | 6.75 | 3.38 | 5.25 | 11.5 | 12 | 5.25 | 11.75 | 276 |
| HS2061418 | 31/4-33/8 | 29.25 | 4 | 12.25 | 7.25 | 3.62 | 5.75 | 12.25 | 13 | 5.75 | 12.25 | 313 |
| HS2061419 | 31/2-35/8 | 31 | 4 | 13 | 7.75 | 3.88 | 6.5 | 13 | 14 | 6.25 | 13 | 400 |
| HS2061420 | 33/4-4 | 33.25 | 4.25 | 14.25 | 8.5 | 4.25 | 7.25 | 14.25 | 15 | 7 | 14 | 542 |
