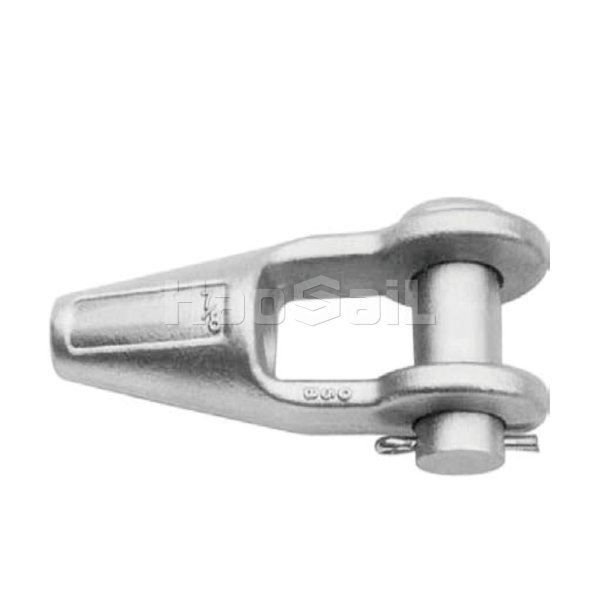

Grooved Open Spelter Sockets SM - 416 is a professional accessory for wire rope connection, usually made of high-quality metal materials. Its unique design is that it has grooves on the surface and adopts an open structure. It needs to be used with filling materials such as zinc alloy. By placing the end of the wire rope in it, pouring molten filling material, and cooling it to form a firm connection. The product has various sizes and can adapt to wire ropes of different specifications. It can ensure the stability of the connection in various complex environments. It is widely used in industries that require high strength and reliability of wire rope connections.

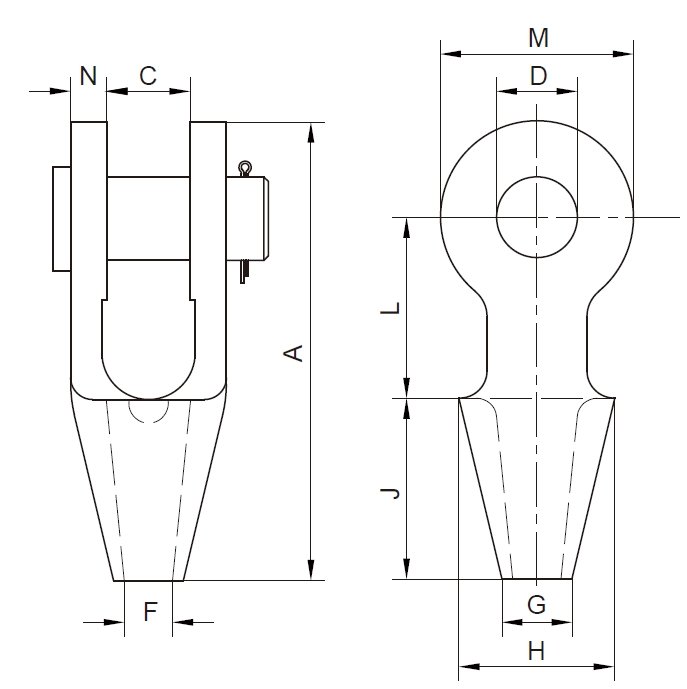

| Stock no. | Size (in) | Dimensions(in) | Weight (lbs) | |||||||||
| A | C | D | F | G | H | J | L | M | N | |||
| HS2061301 | 1/4 | 4.56 | 0.75 | 0.69 | 0.38 | 0.69 | 1.56 | 2.25 | 1.56 | 1.31 | 0.31 | 1.10 |
| HS2061302 | 5/16-3/8 | 4.84 | 0.81 | 0.81 | 0.50 | 0.81 | 1.69 | 2.25 | 1.75 | 1.50 | 0.44 | 1.30 |
| HS2061303 | 7/16-1/2 | 5.56 | 1.00 | 1.00 | 0.56 | 0.94 | 1.88 | 2.50 | 2.00 | 1.88 | 0.50 | 2.25 |
| HS2061304 | 9/16-5/8 | 6.75 | 1.25 | 1.19 | 0.69 | 1.13 | 2.25 | 3.00 | 2.50 | 2.25 | 0.56 | 3.60 |
| HS2061305 | 3/4 | 7.94 | 1.50 | 1.38 | 0.81 | 1.25 | 2.62 | 3.50 | 3.00 | 2.62 | 0.62 | 5.80 |
| HS2061306 | 7/8 | 9.25 | 1.75 | 1.63 | 0.94 | 1.50 | 3.25 | 4.00 | 3.50 | 3.13 | 0.80 | 9.65 |
| HS2061307 | 1 | 10.56 | 2.00 | 2.00 | 1.13 | 1.75 | 3.75 | 4.50 | 4.00 | 3.75 | 0.88 | 15.50 |
| HS2061308 | 11/8 | 11.81 | 2.25 | 2.25 | 1.25 | 2.00 | 4.12 | 5.00 | 4.62 | 4.12 | 1.00 | 21.50 |
| HS2061309 | 11/4-13/8 | 13.19 | 2.50 | 2.50 | 1.50 | 2.25 | 4.75 | 5.50 | 5.00 | 4.75 | 1.13 | 31.00 |
| HS2061310 | 11/2 | 15.12 | 3.00 | 2.75 | 1.63 | 2.75 | 5.25 | 6.00 | 6.00 | 5.38 | 1.19 | 47.25 |
| HS2061311 | 15/8 | 16.25 | 3.00 | 3.00 | 1.75 | 3.00 | 5.50 | 6.50 | 6.50 | 5.75 | 1.31 | 55.00 |
| HS2061312 | 13/4-17/8 | 18.25 | 3.50 | 3.50 | 2.00 | 3.13 | 6.38 | 7.50 | 7.00 | 6.50 | 1.56 | 82.00 |
| HS2061313 | 2-21/8 | 21.50 | 4.00 | 3.75 | 2.25 | 3.75 | 7.38 | 8.50 | 9.00 | 7.00 | 1.81 | 129.00 |
| HS2061314 | 21/4-23/8 | 23.50 | 4.50 | 4.25 | 2.50 | 4.00 | 8.25 | 9.00 | 10.00 | 7.75 | 2.13 | 167.00 |
| HS2061315 | 21/2-25/8 | 25.50 | 5.00 | 4.75 | 2.88 | 4.50 | 9.25 | 9.75 | 10.75 | 8.50 | 2.38 | 252.00 |
| HS2061316 | 23/4-27/8 | 27.25 | 5.25 | 5.00 | 3.12 | 4.88 | 10.50 | 11.00 | 11.00 | 9.00 | 2.88 | 315.00 |
| HS2061317 | 3-31/8 | 29.00 | 5.75 | 5.25 | 3.38 | 5.25 | 11.12 | 12.00 | 11.25 | 9.50 | 3.00 | 380.00 |
| HS2061318 | 31/4-33/8 | 30.88 | 6.25 | 5.50 | 3.62 | 5.75 | 11.88 | 13.00 | 11.75 | 10.00 | 3.12 | 434.00 |
| HS2061319 | 31/2-35/8 | 33.25 | 6.75 | 6.00 | 3.88 | 6.50 | 12.38 | 14.00 | 12.50 | 10.75 | 3.25 | 563.00 |
| HS2061320 | 33/4-4 | 36.25 | 7.50 | 7.00 | 4.25 | 7.25 | 13.62 | 15.00 | 13.50 | 12.50 | 3.50 | 783.00 |
