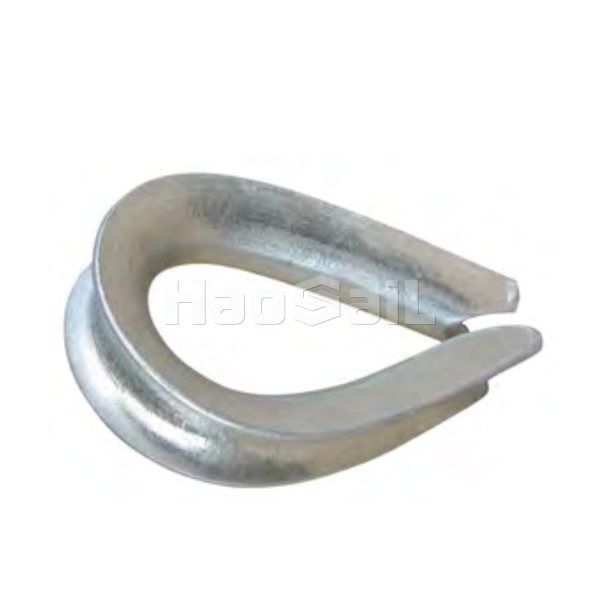

DIN3090 Wire rope Thimble Feature

• Excellent protection performance: The unique design can tightly wrap the eye of the wire rope, effectively disperse stress, significantly reduce the risk of wear and deformation caused by bending and friction, reduce internal wire breakage, and greatly extend the service life of the wire rope in frequent use scenarios.

• Excellent material and process: Carbon steel material ensures good strength; galvanizing treatment forms a solid protective layer on the surface, with excellent anti-rust ability, and hot-dip galvanizing process can resist corrosion for a long time in harsh environments, ensuring stable and reliable product performance.

• Precise specification adaptation: From 4mm to 40mm, a variety of specifications can be closely matched with wire ropes of different diameters. Whether it is light traction operations or heavy lifting and hoisting operations, it can be accurately adapted to meet diverse application needs.

• Compliance with standards and specifications: Produced strictly in accordance with DIN 3090 standards, the products meet standard requirements in terms of quality, dimensional accuracy, performance parameters, etc., with reliable quality, and can be used in various operating scenarios with high safety requirements.

DIN3090 Wire rope Thimble Typical applications

• Construction field: It is widely used in the wire rope connection of large lifting equipment such as tower cranes and elevators to prevent the eye of the wire rope from being damaged due to frequent force and friction when lifting building materials (such as prefabricated panels, steel beams and other heavy objects), thereby reducing the probability of safety accidents.

• Logistics and warehousing industry: It is used to protect the wire rope used to bundle and lift goods during cargo loading and unloading. For example, during container loading and unloading and large equipment handling, the eye of the wire rope is protected from damage to ensure smooth and safe transportation of goods during handling.

• Navigation and ship operations: It protects the eye of the cable during ship mooring, towing and other operations. Its good anti-rust performance can effectively resist the corrosion of seawater and external friction, ensuring the reliability of the mooring cable when the ship is docked at the dock and operating at sea, and ensuring the safety of the ship.

• Electric power engineering installation: It is used to fix and protect the wire rope used for lifting when erecting wires and cables and installing power equipment. Especially in scenes such as high-altitude operations and installation of large power equipment, it ensures the smooth progress of operations and improves the safety of the operation process.
