A wedge socket is a mechanical wire rope termination fitting used to secure the end of a steel wire rope to lifting or anchoring equipment. It is widely used in lifting, pulling, tensioning, and other applications where a practical and detachable wire rope connection is required.

What Is a Wedge Socket?

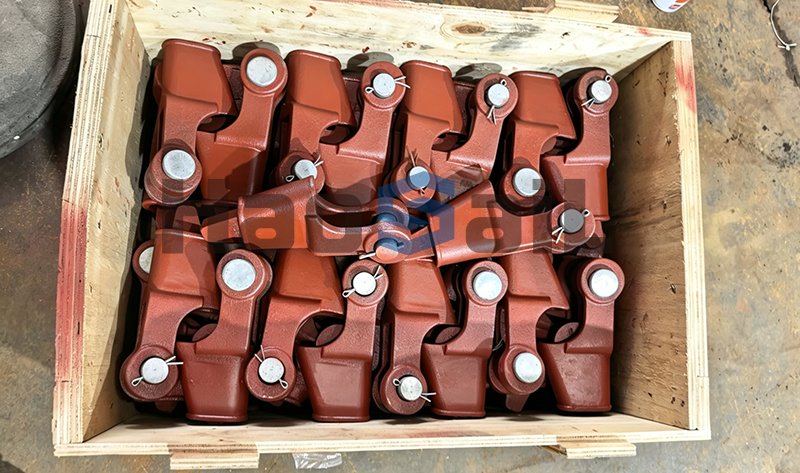

A typical wedge socket consists of three main components: the socket body, wedge, and pin. The wire rope is positioned between the socket body and the wedge. When the rope is loaded, the wedge moves into the tapered socket body, creating a clamping effect that holds the wire rope securely in position.

Compared with permanent wire rope terminations, wedge sockets provide a mechanical connection that can be assembled and removed relatively easily. This makes them suitable for applications where wire ropes may need to be replaced or adjusted on site.

Wedge sockets are available in different sizes and configurations to match different wire rope diameters and applications.

Main Advantages of Wedge Sockets

Easy Installation and Removal
The mechanical wedge design allows the wire rope to be installed without permanent socketing processes, making replacement and maintenance more convenient.

Suitable for Field Applications
Wedge sockets are commonly used where wire ropes need to be installed or replaced at the job site, particularly in lifting and construction equipment.

Mechanical Wire Rope Termination
The wedge and socket body work together to grip the wire rope when tension is applied. Proper matching of the socket, wedge, and wire rope is important for reliable performance.

Flexible Connection
The pin provides a convenient connection point for attaching the wire rope assembly to hooks, blocks, anchorage points, and other lifting components.

Typical Applications

Wedge sockets are widely used in applications where steel wire ropes require a practical and detachable end termination.

Crane and Lifting Equipment

One of the common applications is crane wire rope systems. Wedge sockets can be used to connect the end of a hoisting rope to a crane block or other lifting components, allowing relatively convenient wire rope replacement when required.

Pulling and Tensioning Systems

Wedge sockets can also be used in pulling, tensioning, and staying systems where steel wire ropes need to be mechanically secured to an anchorage or connecting component.

Construction and Engineering

In construction and engineering projects, wedge sockets may be used for temporary or adjustable wire rope connections, especially where permanent rope termination is less practical.

Wire Rope Replacement

For equipment requiring regular wire rope replacement, the detachable design of a wedge socket can help simplify maintenance and installation.

Correct Installation Matters

The performance of a wedge socket depends not only on the socket itself but also on correct assembly. The socket, wedge, and wire rope should be correctly matched according to the specified size and construction. The wedge must be installed in the correct direction, and the wire rope should be properly positioned before loading.

Regular inspection is also important. The socket body, wedge, pin, and wire rope should be checked for cracks, deformation, excessive wear, or other visible damage before use.
