Wire rope clips are widely used in lifting, rigging, marine, and general industrial applications to form loops or secure wire rope ends. Although they may appear simple, improper installation remains one of the most common causes of wire rope connection failure. Among the most frequently asked questions is: How many wire rope clips are needed for safe installation?

The answer depends on the wire rope diameter, application requirements, and installation method. Using too few clips, incorrect spacing, or improper orientation can significantly reduce holding strength and create safety risks.

Why the Correct Number Matters

The primary function of a wire rope clip is to create sufficient clamping force between the live end and dead end of the wire rope. If the number of clips is insufficient, the rope may slip under load. Excessive force concentrated on too few clips can also cause deformation of the rope strands, reducing overall efficiency and service life.

Proper clip quantity ensures:

· Even load distribution

· Reliable holding power

· Reduced risk of slippage

· Improved operational safety

Recommended Number of Wire Rope Clips

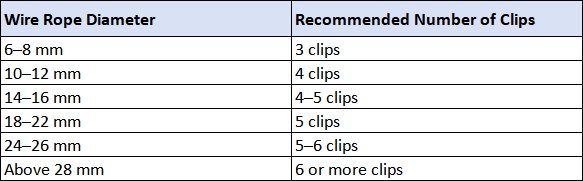

The number of clips generally increases with rope diameter. The following recommendations are commonly used as a practical reference:

These recommendations may vary depending on load conditions and project requirements. For critical lifting applications, always follow applicable engineering specifications and safety standards.

Correct Installation Principles

Using the correct number of clips is only part of the process. Proper installation is equally important.

1. Follow the “Never Saddle a Dead Horse” Rule

This well-known rule reminds installers that the saddle must always be placed on the live end of the rope, while the U-bolt should clamp the dead end.

Incorrect orientation can damage the load-bearing side of the rope and reduce connection strength.

2. Maintain Proper Spacing

Wire rope clips should be spaced approximately 6 to 7 times the rope diameter apart.

Too little spacing reduces clamping efficiency, while excessive spacing can lead to uneven force distribution.

3. Tighten Evenly and Re-tighten

After initial installation:

· Tighten all nuts evenly

· Apply the recommended torque

· Re-tighten after the rope has been loaded for the first time

Wire rope naturally settles under tension, and re-tightening helps maintain secure clamping.

Common Installation Mistakes

Even when the correct number of clips is used, mistakes during installation can compromise safety.

The most common errors include:

Using too few clips
This reduces total holding strength.

Reversing saddle and U-bolt placement
This damages the live rope section.

Ignoring re-tightening
Loose nuts can lead to gradual slippage.

Choosing lightweight clips for heavy-duty applications
Not all clips of the same specification offer the same structural strength.

Choosing the Right Wire Rope Clip Quality

Beyond installation quantity, clip quality also plays a critical role.

Heavier-duty clips often feature:

· Thicker U-bolts

· Larger nuts

· Stronger cast or forged saddles

· Better clamping performance

Although lighter versions may meet basic requirements, heavy-duty wire rope clips provide improved reliability for demanding applications.

Selecting the right clip means balancing:

· Load requirements

· Operating environment

· Safety margin

Service life expectations

Final Thoughts

Safe wire rope installation depends on more than simply tightening a few clips. Using the correct number, proper spacing, and correct orientation are essential for reliable performance.

A properly installed wire rope clip assembly provides dependable holding strength, longer service life, and greater operational confidence.

When in doubt, it is always better to verify installation requirements rather than risk connection failure.
