DIN580 and DIN582 eye bolts are widely recognized as industry-standard lifting points for rigging, hoisting, and lifting operations. Designed according to strict DIN standards, these eye bolts ensure safe, reliable, and durable connections for wire ropes, chains, and other lifting equipment. Choosing the right eye bolt and installing it correctly is essential to prevent accidents, ensure compliance with international safety standards, and optimize lifting efficiency.

1. What Are DIN580 and DIN582 Eye Bolts?

DIN580 Eye Bolts:

Designed for vertical lifting only

Threaded shank with a circular eye at the top

Ideal for hoisting loads where the force is applied along the axis of the bolt

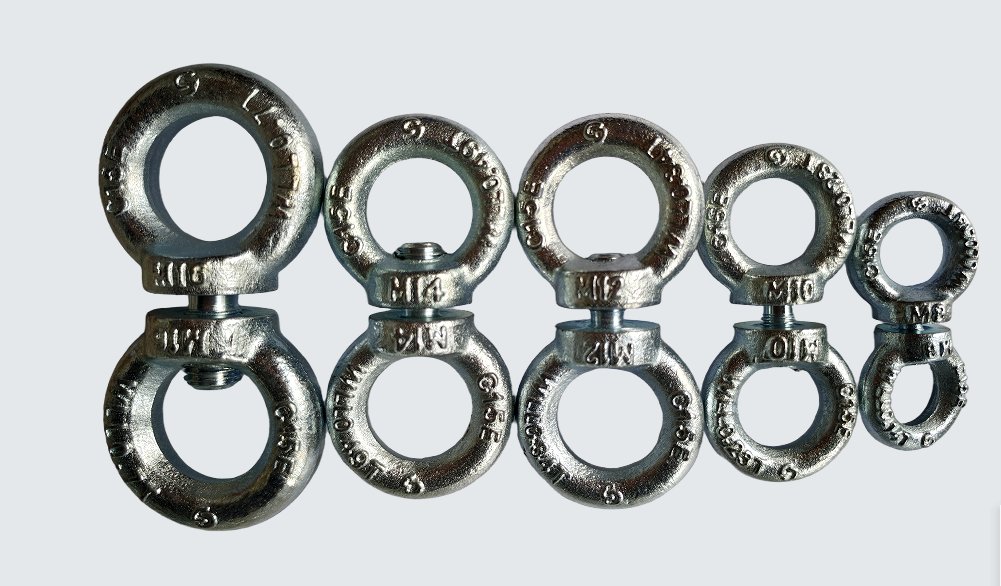

DIN582 Eye Nuts (Eye Bolt with Nut):

Designed to be mounted on pre-threaded holes

Can handle both vertical and certain angular loads depending on the installation

Provides versatility in lifting and rigging applications

Both DIN580 and DIN582 are manufactured according to DIN (Deutsches Institut für Normung) standards, ensuring precision, strength, and international compatibility.

2. Applications of DIN580 & DIN582

DIN580 and DIN582 eye bolts are widely used in:

Industrial Lifting: Secure attachment points for cranes, hoists, and slings

Construction: Supporting heavy machinery, steel structures, and prefabricated components

Marine & Shipping: Lifting heavy cargo, mooring, and rigging applications

Maintenance & Assembly: Safe lifting points for equipment, engines, and mechanical components

Their reliability and standardization make them a preferred choice for engineers, riggers, and safety officers worldwide.

3. Choosing the Right DIN580 & DIN582 Eye Bolts

Material Selection:

Carbon Steel: Strong and cost-effective for general lifting

Galvanized Steel: Corrosion-resistant for outdoor or marine environments

Stainless Steel (304/316): Ideal for marine, chemical, or high-humidity conditions

Load Capacity & Size:

Always select eye bolts that match the load requirements and thread size

For DIN580, ensure vertical load compatibility

For DIN582, check hole size and orientation to ensure proper load distribution

4. Proper Installation Guidelines

Correct installation is key to safe lifting:

DIN580 Eye Bolts: Install into a threaded hole perpendicular to the load direction. Only vertical loads should be applied unless using a lifting plate.

DIN582 Eye Nuts: Mount onto a correctly threaded hole, ensuring the bolt or nut is fully engaged and tightened.

Safety Tips:

Avoid side loading unless rated for angular loads

Inspect for wear, corrosion, or deformation before each lift

Do not exceed rated load capacity

5. Why Choose Our DIN580 & DIN582 Eye Bolts

Manufactured to DIN standards for precision, strength, and reliability

Wide range of sizes and materials to suit all lifting applications

ISO-certified products meet international safety requirements

Expert guidance on proper selection, installation, and maintenance

Using high-quality eye bolts reduces the risk of accidents, improves rigging efficiency, and ensures compliance with safety regulations.

Conclusion

DIN580 and DIN582 eye bolts are critical components in lifting and rigging operations. Proper selection, material choice, and installation ensure safe, reliable, and durable lifting connections. Partnering with a trusted supplier guarantees high-quality, DIN-standard eye bolts that meet industrial, construction, and marine rigging requirements.
